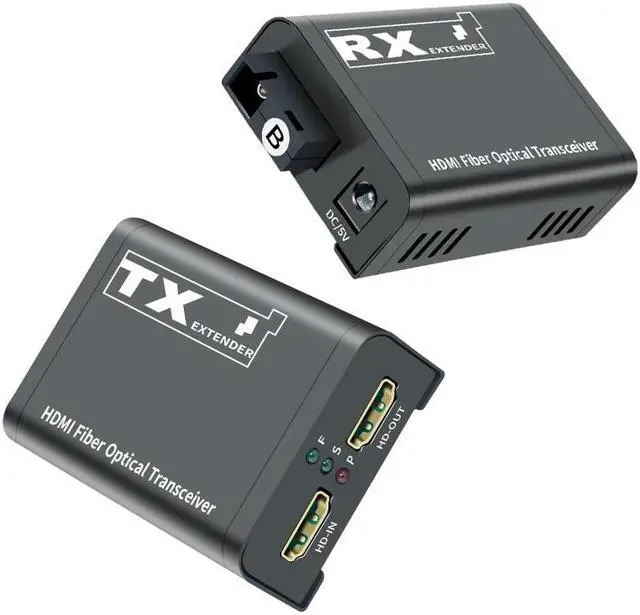

20Km HDMI Fiber Extender over Single SC Fiber Optical Cable 1080P HDMI to Fiber Optical Video Transceiver Extender Transmit Kit(With EU Plug)
- 20Km HDMI Fiber Extender over Single SC Fiber Optical Cable 1080P HDMI to Fiber Optical Video Transceiver Extender Transmit Kit(With EU Plug)
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Introduction:
The extender provides extension of HDMI-Compatible signals long distances over a single Fiber, it supports loop output. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
Transmits HDMI-compatible video and audio signals up to 3-20KM over a single Fiber (default 3KM)
Support video resolution up to 19201080P@60Hz, 16001200@60Hz
Compliance with HDMI-compatible 1.3 and HDCP-compatible 1.2 standard
High compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable
Built-in ESD protection system
Simple to install, plug and play
Specification:
Standards: HDMI-compatible 1.3; HDCP-compatible 1.2
Maximum pixel clock: 165MHz
Maximum data rate: 6.75G bps
Resolution: 640480@60Hz; 800600@60Hz; 1024768@60Hz; 1280720@50Hz; 1280720@60Hz; 1280768@60Hz; 1280800@60Hz; 1280960@60Hz; 12801024@60Hz; 1360768@60Hz; 14001050@60Hz; 1440900@60Hz; 16001200@60Hz; 16801050 @60Hz; 19201200@60Hz; 19201080i@60Hz; 19201080@50Hz; 19201080@60Hz
Connector: HDMI-compatible-A
Impedance: 100
Interface: SC/FC (default SC)
Fiber Model: Single mode
wavelength: Single mode 1310nm; 1550nm
bandwidth: 6.25G bps
Transmission distance: Default standard 3KM, MAX up to 20KM

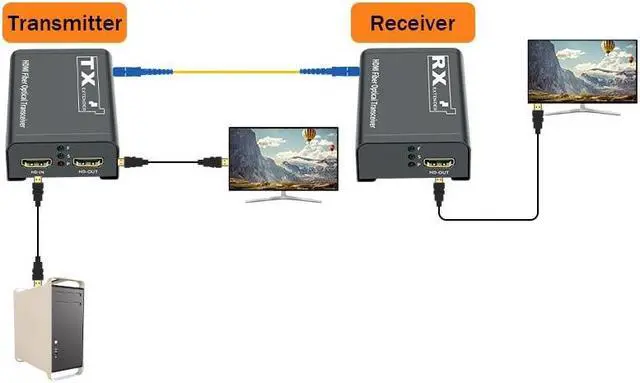

Installation Process:
1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
2. Connect an HDMI-compatible cable between the HDMI-comptible input port of transmitter and the HDMI-compatible output port of the video source
3. Connect the HDMI-compatible output port of receiver to the display device with HDMI-compatible cable, Connect the transmitter Fiber port to the receiver Fiber port using a single Optical fiber
4. Power on Transmitter and Receiver
Package:
1 x Transmitter
1 x Receiver
2 x Power adapter
1 x User manual
The extender provides extension of HDMI-Compatible signals long distances over a single Fiber, it supports loop output. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
Transmits HDMI-compatible video and audio signals up to 3-20KM over a single Fiber (default 3KM)
Support video resolution up to 19201080P@60Hz, 16001200@60Hz
Compliance with HDMI-compatible 1.3 and HDCP-compatible 1.2 standard
High compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable
Built-in ESD protection system
Simple to install, plug and play
Specification:
Standards: HDMI-compatible 1.3; HDCP-compatible 1.2
Maximum pixel clock: 165MHz
Maximum data rate: 6.75G bps
Resolution: 640480@60Hz; 800600@60Hz; 1024768@60Hz; 1280720@50Hz; 1280720@60Hz; 1280768@60Hz; 1280800@60Hz; 1280960@60Hz; 12801024@60Hz; 1360768@60Hz; 14001050@60Hz; 1440900@60Hz; 16001200@60Hz; 16801050 @60Hz; 19201200@60Hz; 19201080i@60Hz; 19201080@50Hz; 19201080@60Hz
Connector: HDMI-compatible-A
Impedance: 100
Interface: SC/FC (default SC)
Fiber Model: Single mode
wavelength: Single mode 1310nm; 1550nm
bandwidth: 6.25G bps
Transmission distance: Default standard 3KM, MAX up to 20KM
Installation Process:
1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
2. Connect an HDMI-compatible cable between the HDMI-comptible input port of transmitter and the HDMI-compatible output port of the video source
3. Connect the HDMI-compatible output port of receiver to the display device with HDMI-compatible cable, Connect the transmitter Fiber port to the receiver Fiber port using a single Optical fiber
4. Power on Transmitter and Receiver
Package:
1 x Transmitter
1 x Receiver
2 x Power adapter
1 x User manual
