4x4 HDMI Matrix with Toslink&Stereo Audio out 4K HDMI Matrix Selector 4 in 4 out HDMI Switch Splitter with EDID Extractor RS232(With AU Plug)

Introduction:

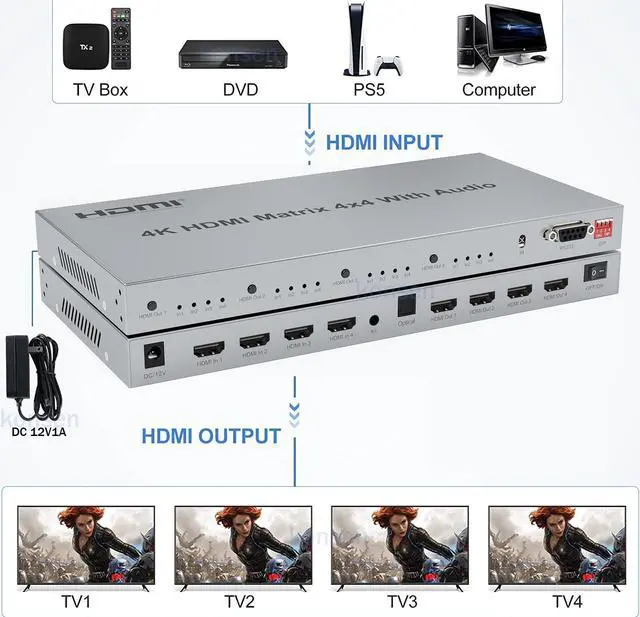

The HDMI matrix 4x4 can connect 4 HD signal sources to 4 HD display terminals with optical fiber
and stereo headphone output at the same time via HDMI out 1 port.

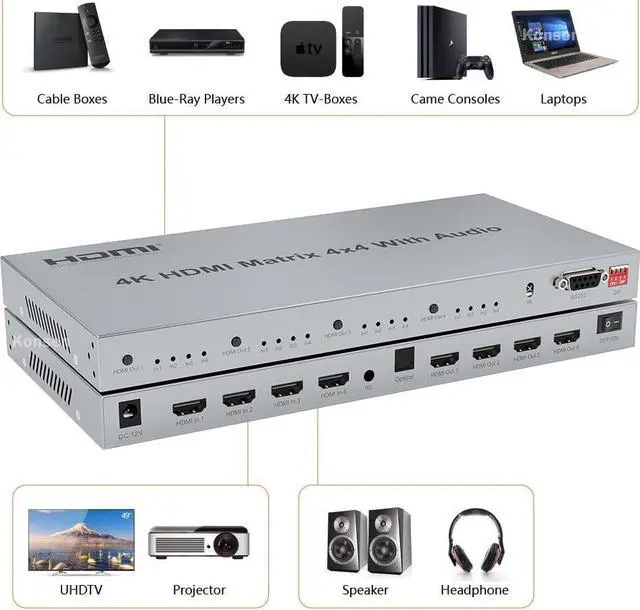

The matrix allows four HDMI devices to be switched or split easily to four HDMI compatible monitors or projectors.
This HDMI matrix support lossless transmitting and are widely used in space and security concerns, data center control, information distribution, conference roompresentation, school and corporate training environments.
Features:
* Very compact structure;
* Stable and reliable;
* Via HDMI out1, support 3.5 mm earphone jack and optical output at same time;
* Economical and cost-effective;
* Support 3D;

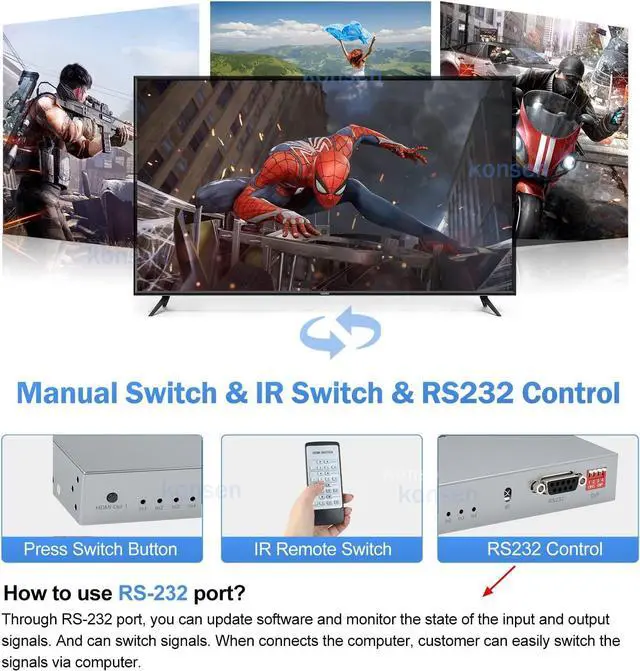

* Support IR Remote Control;

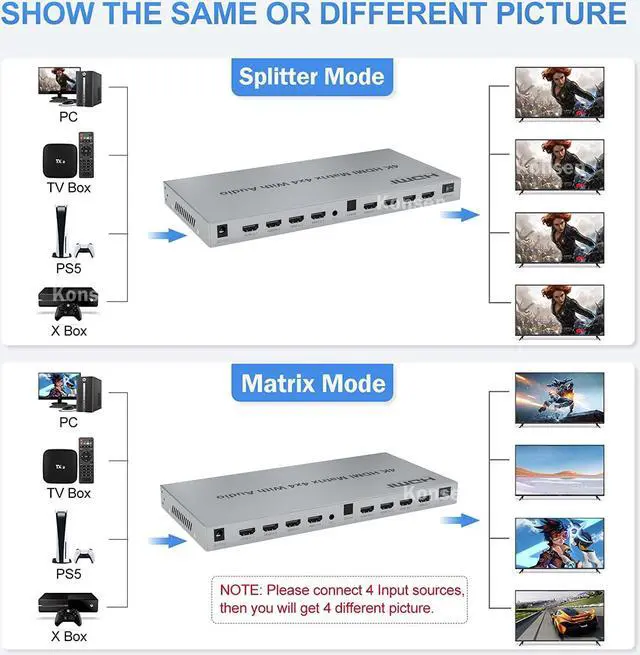

* The four outputs could show the same or different source simultaneously;

Specifications

:

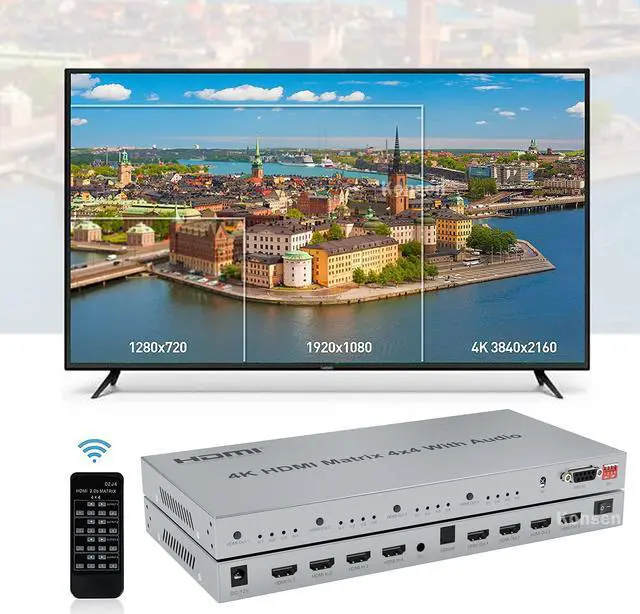

HDMI resolution.................................................................................... up to 4K/30Hz
Support video format...................................................................... 8/10/12 bit deep color
Support audio format................... DTS-HD/Dolby-trueHD/LPCM 7.1 /DTS/Dolby-AC3/DSD
Max baud rate....................................................................................... 3x 3.4G bps
Input cable distance................................... 4K/30Hz 15M AWG26 HDMI standard cable
Output cable distance................................. 4K/30Hz 15M AWG26 HDMI standard cable
HDMI Input......................................................................................................... 4
HDMI Output....................................................................................................... 4
Max working current....................................................................................... 0.6A
Power adapter format..................
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
Operating Temperature range.............................................................. (-15 to +45)
Operating Humidity range............................................ 5 to 90%RH (No Condensation)
Dimension (L x W x H)................................................................. 276x143x26 (mm)
Weight........................................................................................................... 720g

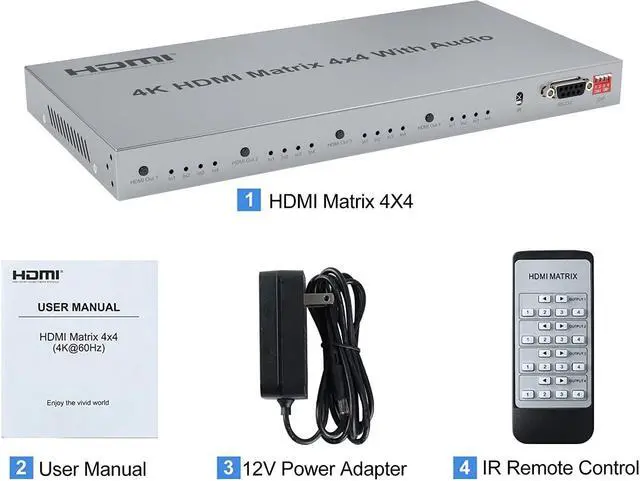

Accessories:
1.1 x HDMI Matrix 4X4
2. 1 x IR Remote Control without Battery
3. 1 x 12V power adapter
4. 1 x User Manual
