1080P USB VGA KVM Extender over Cat5e/6 Ethernet Cable to 100M/200M/300M VGA USB Extender Transmitter Support USB keyboard mouse(AU Plug) (300M)

Description:

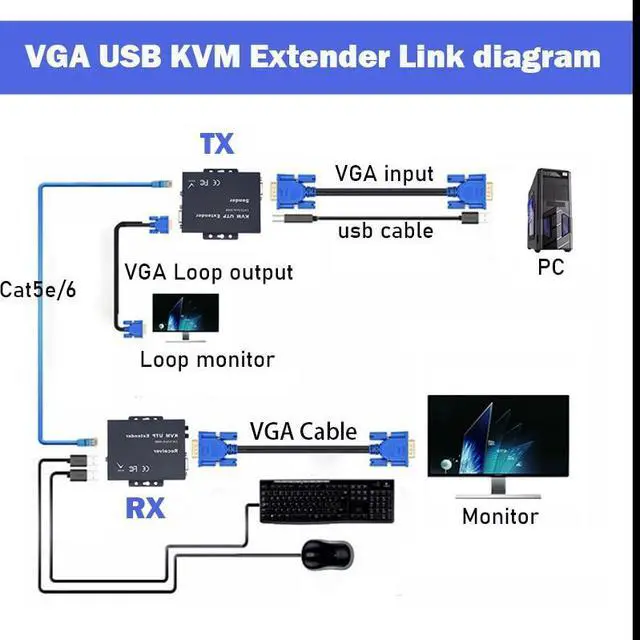

VGA KVM extender provides extension of VGA video audio signal long distances over a single Ethernet RJ45 CAT5/5e/6 cable, it supports high resolution up to 1920*1440@60Hz and keyboard/mouse signal (HID signal) and external stereo audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
Transmits VGA video and audio signal up to 100m/200m/300m over CAT5/5e/6 cable
Support video resolution up to 1920*1440@60Hz.
Compliance with VGA standard.
Uncompress, no delay, no loss.
Support VGA loop out function.
Support keyboard and mouse signal transmission
High compatibility, can auto-match source and display device.
Built-in automatic adjustment system, make the image smooth, clear and stable.
Built-in ESD protection system.

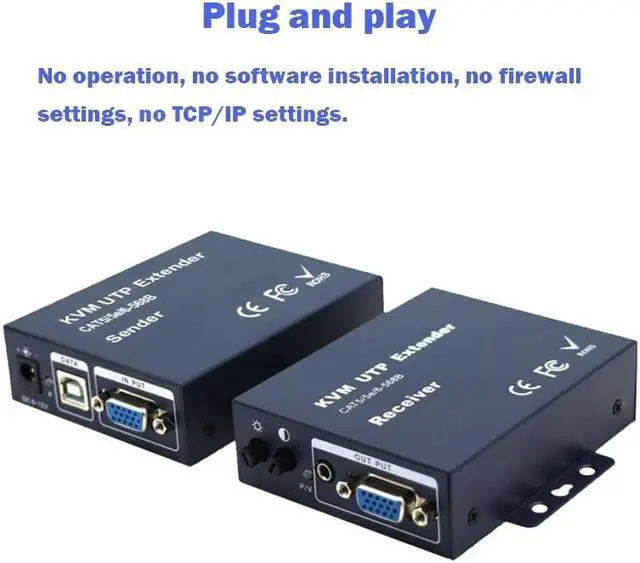

Simple to install, plug and play.
Note:
We cancel the audio port transmission function, please remember that before buy it.

Specifications

:

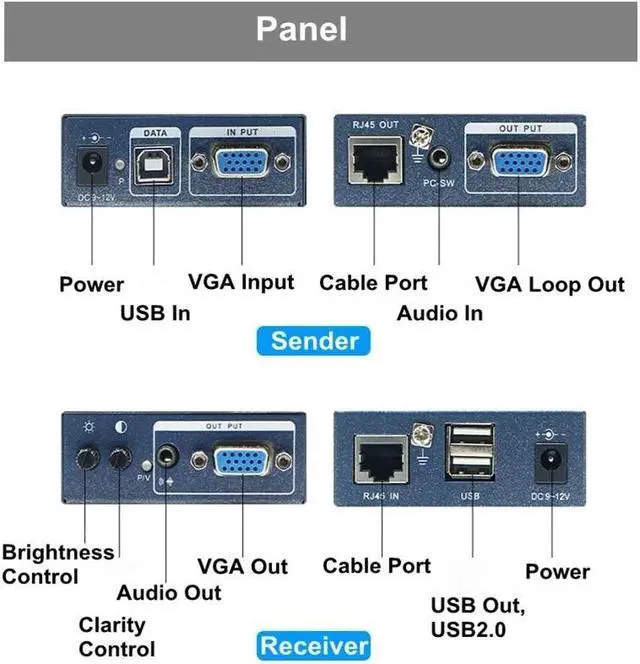

Local Unit
Host Connection
Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Male/Female 15-pin HD connector for computer connection
Local Access
Crisp and clear 1920x1440@60Hz video resolution.
Female 15-pin HD connector for local VGA monitor
Remote Unit
Supports resolutions up to 1920x1440@60Hz; refer to the resolution chart below for resolutions at different lengths.
Female 15-pin HD connector.
Optional 3.5 mm stereo audio connection.
Video Quality Adjustment
Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video or video/RS232 extender.
Test Pattern for Cable Length
Environmental
Operating temperature: 32F to 100F (0C to 38C).
Storage temperature: -20F to 140F (-30C to 60C).
Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
Dimensions
WxDxH (mm): 95*97*28mm
Weight (g): 0.8KG (With packaging)
Package
1) 1x Main Unit (Transmitter*1, Receiver*1)
2) 1x Mouse
3) 1x USB Cable
4) 2x Power Adapter (DC 12V 1A)
5) 1x User Manual
Note: There are 3 options here, 100M/200M300M, please buy according to your needs, we will send your purchased options.
