(AU Plug)(One TX and Four RX)4 Port HDMI Splitter Extender 50M 1x4 HDMI Ethernet Extender Video Distributor Extension Transmitter Over Rj45 CAT6/CAT7 Cable

Description:
This HDMI UTP splitter reliably sends the High Speed 1080p signal over just a single Cat5e/6 cable!
This not only reduces costs, but reduces the hassle of running two cables.

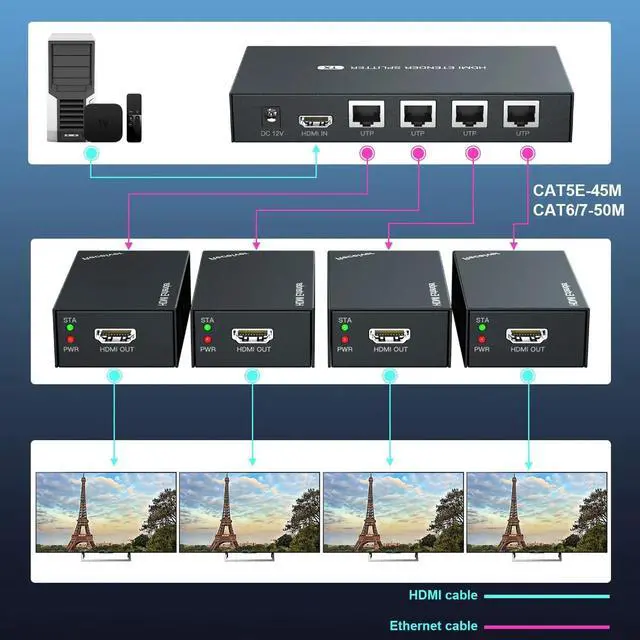

The splitter takes a single HDMI input and sends the signal over up Cat5e/6 cables to separate locations.

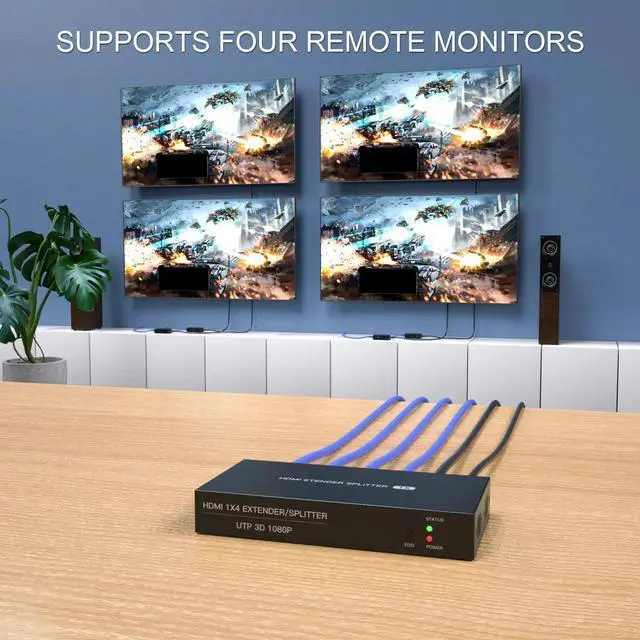

4 HDMI receiver units are included to decode the signal at the other end and connect to the HDMI input of your display.
Features:
Transmits HDMI video and audio signals up to 50m over CAT6, up to 45m over cat5e;

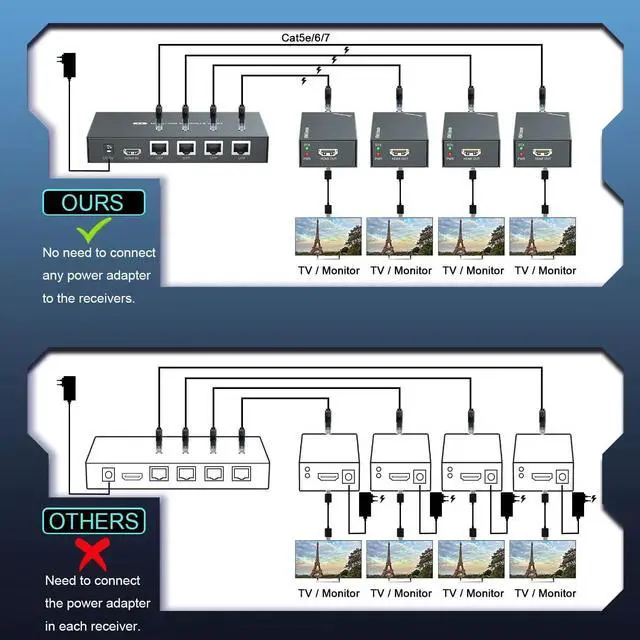

POC compliant, needs external power supply at TX only.
Support video resolution up to 1920*1080P@60Hz, 3D signal;
Transform one channel HDMI input to 4 channel Ethernet signal output;
Support EDID copy function, can match many kinds of display device;
Uncompress, no delay, no loss;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Specifications

:
Video Standards: ---------------------------HDMI 1.3, HDCP 1.2
Maximum Video Bandwidth: ---------------------------350MHz
Maximum Data Rate: --------------------------- 6.75G bps
Resolution: ---------------------------1920X1080P@60Hz
Connector: ---------------------------HDMI-A
Ethernet UTP Interface: ---------------------------RJ45
Transmission Distance: ---------------------------CAT6---50m; cat5e: 45m
Power Supply: ---------------------------The Power Adapter: DC 12V/1A
Power Dissipation Max: ---------------------------3W
Temperature Operating: ----------------------------5 ~ +70
Humidity Operating: ---------------------------5% ~ 90%
Dimension: ---------------------------155*105*25mm
The Warranty: ---------------------------1 Year Free Warranty
Parcel Center:

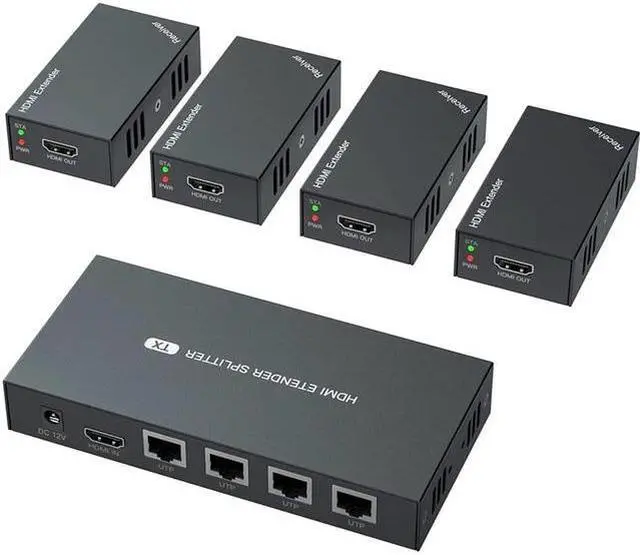

1 x HDMI Splitter Extender Host
4 x Receivers
1 x Power adapter
1 x User Manual
