4K 4x4 Art Video Wall Controller USB 3.0 HDMI LED TV Splicer Box 1x16 1 In 16 Out 3X3 2X2 3X4 5X1 Big Screen Splicing Processor(With UK Plug)

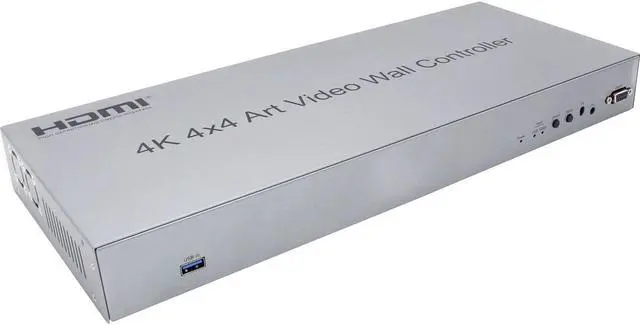

Powerful 4K 4x4 Art Video Wall Controller
Pls Note: we will randomly send from Black or Silver according to the stocks.
Product Introduction:
This 4K 4X4 Art VIDEO WALL CONTROLLER, support HDMI/USB 3.0 input. via USB 3.0 port video can complete
variety of screens splicing effects. The resolution of USB 3.0 input is up to 4K and high-definition output to monitor.
It is widely used in teaching, restaurants, station and other places.

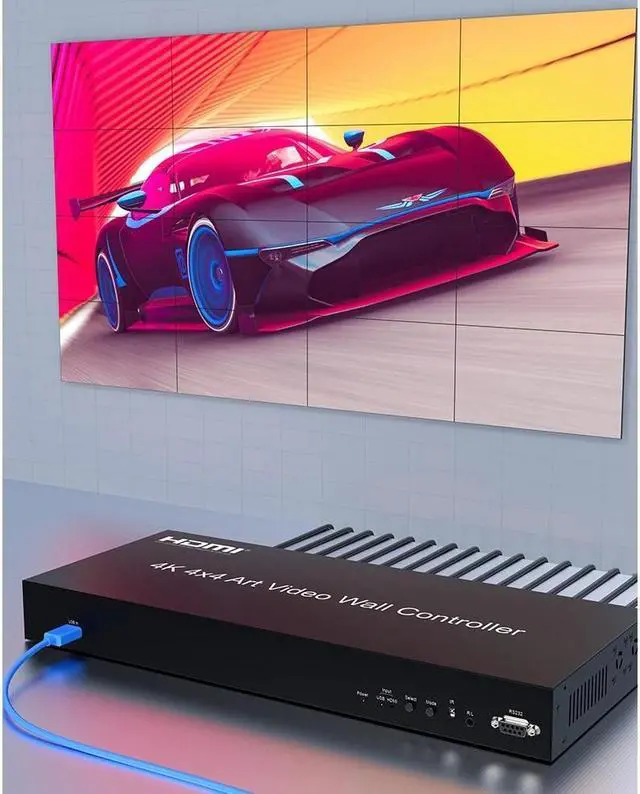

As a video wall controller, the main function is devided a single complete HDMI HD image signal to 16 parts and
distribute to 16 display units (Rear projection screens, LCD TV. etc. ), which composed to be a dynamic image wall.
The operation is plug and play, does not need the control software.
Features:
* Support HDMI / USB 3.0 video source input;
* Support 16-ways HDMI output;
* Support multiple splicing modes, easy to handle, plug and play;
* Support discretionary splicing;
* Effectively solve the splicing deformation;
* Perfectly show images without stretching;
* Support screen any degree rotation;
* Only support Win10 system 64 bit;

Specifications

:
HDMI input resolution........................................ the highest support 3840x2160/30Hz
HDMI output resolution....................................... support 1920x1080/60Hz (one port)
Input cable length......................................................... 8m AWG26 HDMI standard cable
Output cable length.............................................. 10M, AWG26 HDMI standard cable
Max working current.......................................................................................... 4.5A
Power adapter specifications......... input AC (50Hz, 60Hz) 100V-240V Output 12V DC/6A
Operating temperature range............................................................ (-10 +45)
Dimension (L x W x H)........................................................ approx. 411x180x45 (mm)
Weight............................................................................................... approx. 1966g
Package include:
1:4 K 44 Art Video Wall Controller 1PCS
2: Remote control without battery 1PCS
3:12 V DC power adaptor 1PCS
4: USB 3.0 cable 1PCS
5: User manual 1PCS
Following are Art Splicing Modes for your Reference
Remark: The following art splicing shapes are only for reference,
more art splicing can be set in the software. Art wall splicing can
only be done through the signal source of the USB 3.0 input port.
