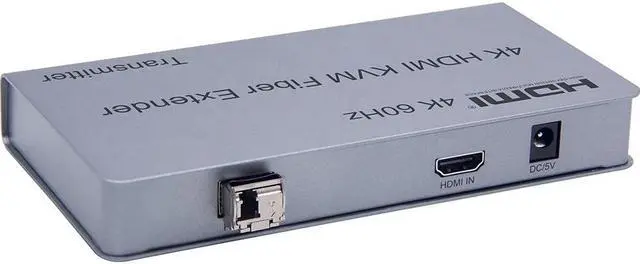

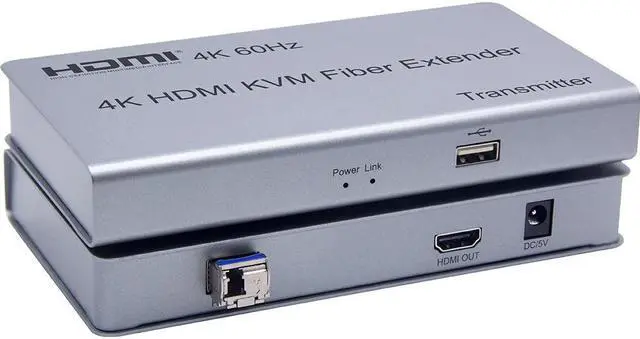

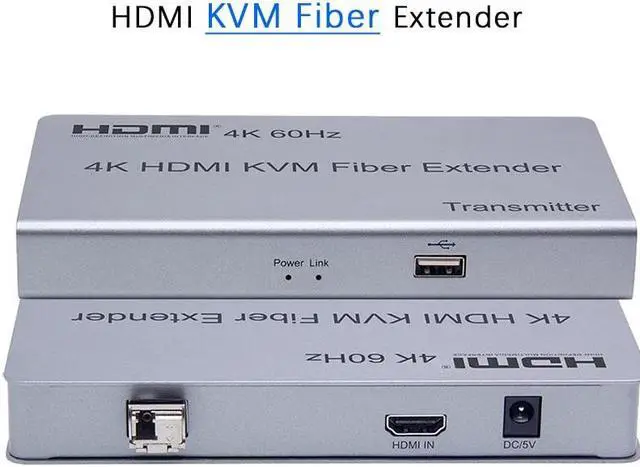

4K 60Hz HDMI Fiber KVM Extender over Single Mode LC Fiber Optical to 10Km HDMI 2.0 USB Fiber Transceiver Support Keyboard Mouse(With AU Plug)

10km 4K HDMI KVM Fiber Extender Switch Box with 2 Ports USB 2.0 Sharing monitor mouse keyboard For HDCP 2.2 PC HDTV Monitor DVD
Introduction:
HDMI extender over fiber is a device transmitting HD audio and video signal via Single
Mode Fiber Cable. It transmits your HD display with the high resolutions up to 10km
(Only transmit 300meter if with HDCP and EDID) away from your HDMI or DVD source
by using one fiber cable. At the same time, it's also convenient to transmit HDMI audio
and video signal by point-to-point mode.
Description:
HDMI input resolution: 4k@60Hz/1080p/720p/480p
HDMI output resolution: 4k@60Hz/1080p/720p/480p
Power consumption: HDMI Sender: 3W HDMI receiver: 3W
Power adapter specifications: input AC (50HZ, 60HZ) 100V-240V Output 5VDC/1A
Support HDMI 4K@60Hz/HDCP 2.2;
Support point-to-point mode;
Support signal mode and LC single core fiber transmission;
Pure hardware design, plug and play, do not need to install additional software.
Connection and operation:

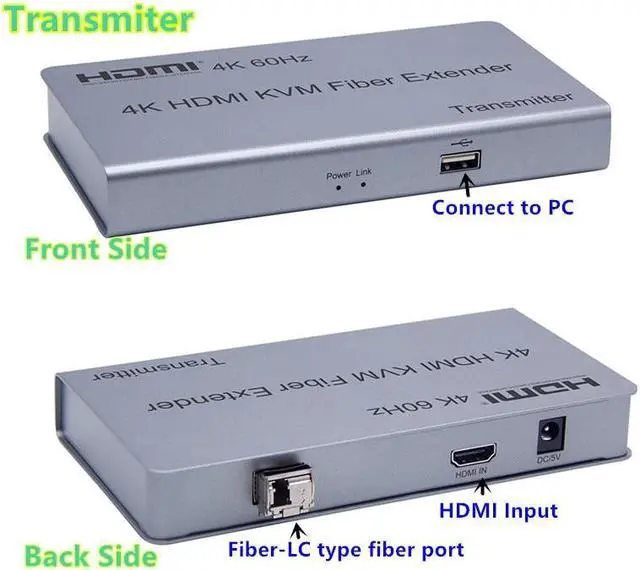

1) Connect the HDMI signal to the HDMI Transmitter with HDMI cable

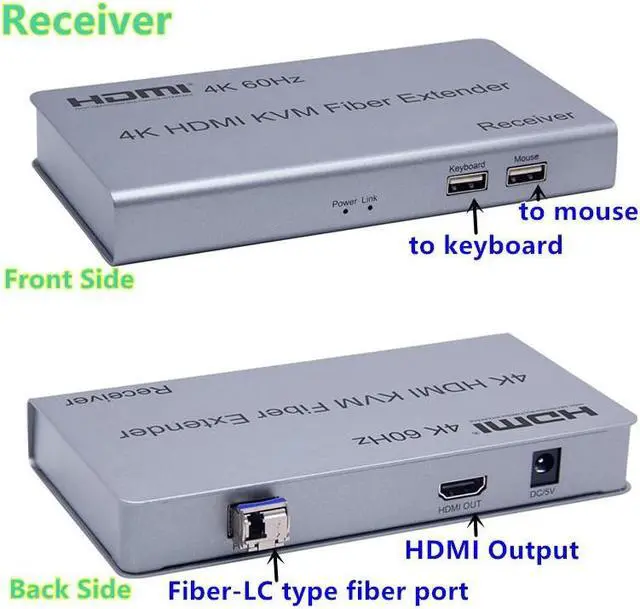

2) Connect the HDMI receiver to the HDTV display with HDMI cable
3) Use one fiber cable up to 10km to connect the Fiber-LC type port of Transmitter and
Fiber-LC type port of Receiver (Only transmit 300meter if with HDCP and EDID)
4) Connect two pieces of 5V power supply to the transmitter and receiver, power supply
for the equipment and the LED indicator light on. When Link lamp on, equipment
Packing list:
1 x HDMI fiber extender transmitter
1 x HDMI fiber extender receiver
2 x DC 5V power supply
1 x User's Manual
