4K HDMI Matrix 2 in 4 out Video Matrix Switch 2x4 4K 60Hz for HDMI Splitter Switch Matrix with SPDIF R/L Audio for PC TV Monitor(with US Plug) (with Retail Package)

4K*2K 60Hz HDMI True Matrix 2x4 Audio Extractor Switch For Dolby AC3 SPDIF 3D 2 In 4 Out 4K HDMI Converter Switcher Splitter
Introduction:
HDMI matrix 2x4 can connect 2 HD signal sources to 4 HD display terminals with optical fiber or stereo headphone output.
The matrix allows two HDMI devices to be switched or split easily to four HDMI compatible monitors or projectors. And any output ports can realize independent audio output by optical fiber or stereo head phone. (The audio can only be separated from the input of HDMI OUT1)
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments
Features:
Support 3D video format
Support for 4K (input) resolution 2K (output) (Down scaler)

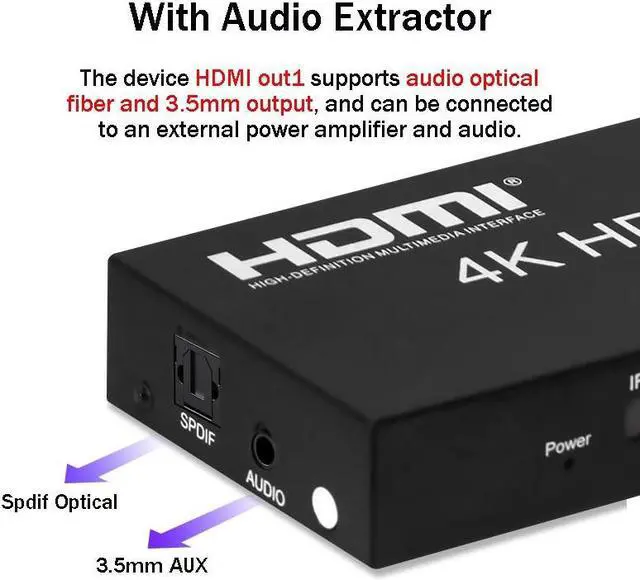

Support 2 HDMI audio outputs, 3.5 mm earphone jack and optical output at same time

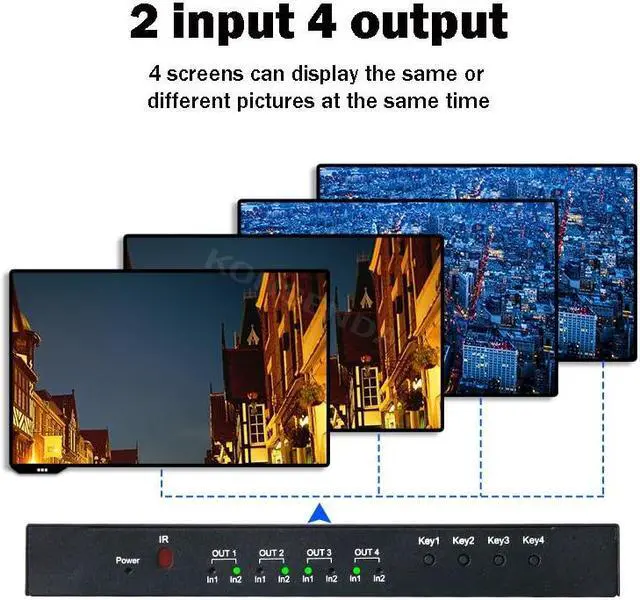

2 HDMI inputs switch and split to 4 HDMI displays.
Support LPCM/Dolby/DTS 5.1 channel.

Specifications

:
HDMI resolution: up to 3840*2160/60Hz
Support video format: 8/10/12 bit deep color
Support audio format: for LPCM/DTS/Dolby-AC3
Max bandwidth: 600MHz
Max baud rate: 3x6Gbps
Input cable distance: 4K/30Hz 15M AWG26 HDMI standard cable 4K/60Hz 5M HDMI 2.0 standard cable
Output cable distance: 4K/30Hz 15M AWG26 HDMI standard cable 4K/60Hz 5M HDMI 2.0 standard cable
Accessories:
1. HDMI Matrix 2X4
1. IR Remote Control
1. 5V power adapter

1. User Manual
