(EU Plug)(1 RX only)150M IP HDMI Extender over Rj45 Cat5e Cat6 HDMI Ethernet extender transmitter 1080P Support 1 TX to Multi RXs via Network Switch

Description:
HDMI extender provides extension of HDMI signals long distances over a single CAT5/5e/6 cable, it supports high resolution up to 1080P signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
Long range transmission: up to 200m/660ft over a single CAT6 cable;
Video resolution: 480P, 576P, 720P, 1920x1080@60Hz;
Audio sampling rate: 32kHz, 44.1 kHz and 48kHz;
Audio Format: DTS-HD/Dolby-true HD/LPCM 7.1 /DTS/DSD;
Compressed mode: H. 264 technology;
Low latency: less than 50 ms.
Male to male: one TX to one RX applicataion;

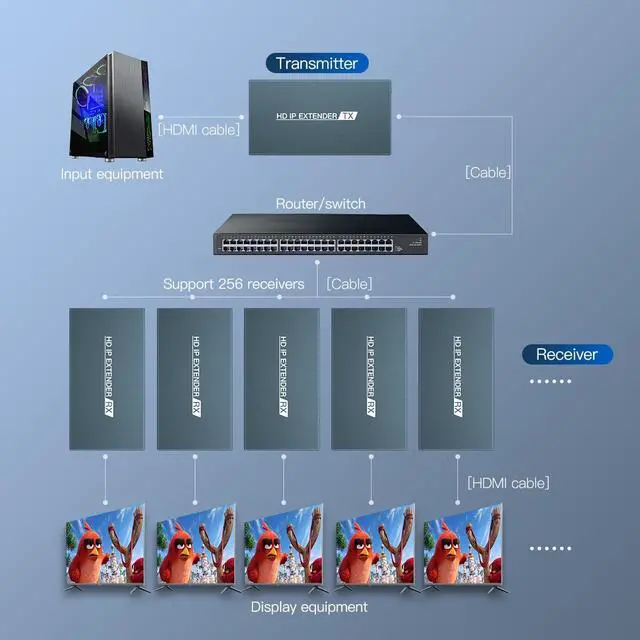

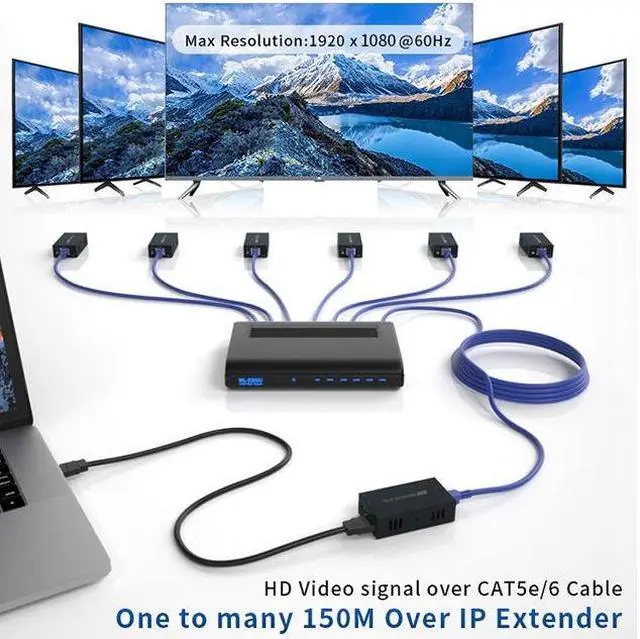

Male to female: TCP/IP, one TX to
N RX(Max: 253 pcs RX) application with Ethernet switch/Router;
IEEE-568B: standard 802.3 Ethernet 10/ 100/ 1000Mbps;
Video standard: compliance with HDMI 1.3 and HDCP 1.2 standard;
Local EDID function: match many kinds of display devices;
Built-in automatic adjustment system: make the image smooth, clear and stable;
Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc; plug and play
Simple to install, plug and play

Specifications

:
Video
Standards----------HDMI 1.3; HDCP 1.2
Maximum pixel clock------165MHz
Maximum data rate------- 6.75G bps
Resolution ------1920X1080@60Hz
Connector-----HDMI-A
Impedance--------100
UTP
Interface-----RJ45/IEEE-568B
Transmission distance--------CAT 5:120 m/400ft,
CAT5e: 150m/500ft, CAT 6:200 m/660ft
Other
Power supply-----The power adapter: DC 5V/1A
Power dissipation------MAX 6W
Temperature-------Operating: -5 ~ +70
Humidity-------Operating: 5% ~ 90%
Dimension-------94*71*25mm
Package: (1TX and 1RX)
HDMI extender transmitter........................ 1 pcs
HDMI extender receiver........................... 1 pcs
Power adapter........................................ 2 pcs
User manual......................................... 1 pcs
Package: (For 1 RX only)
HDMI extender receiver........................... 1 pcs
Power adapter........................................ 1 pcs
Notice:
There are 2 options here, "1TX and 1RX", " 1RX only",, please follow up your needs to buy.
