(With EU Plug)(1 TX and 1 RX)200M HDMI Matrix Extender over IP UTP CAT5e/6 RJ45 1080P HDMI IP Splitter Extender via Ethernet Switch Support One TX to Many RX

200M HDMI IP EXTENDER 1080P
Introduction:
Konsen's products are fully tested, buy with confidence!
This 200M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to
200 meters (over cat6 cable) away from your DVD or computer source by using one CAT5e/6 cable. At the same time,

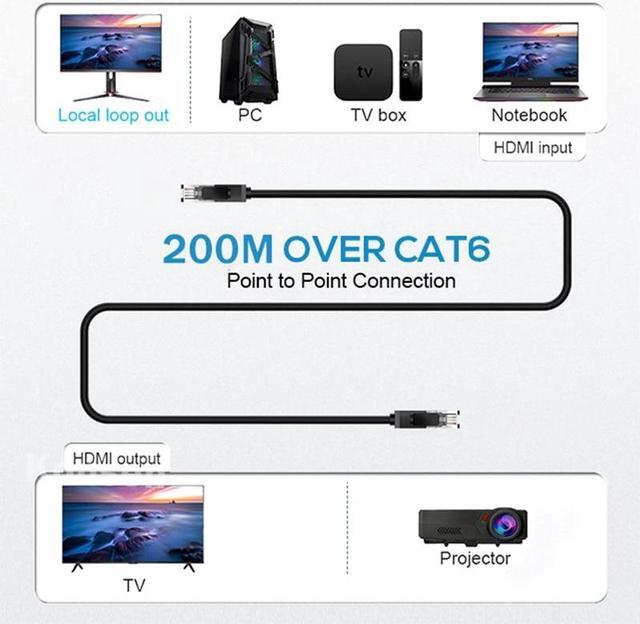

it's convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint mode and cascade connection mode.
Features:
H. 264 code transmission, transmission rate 8.1M bps;

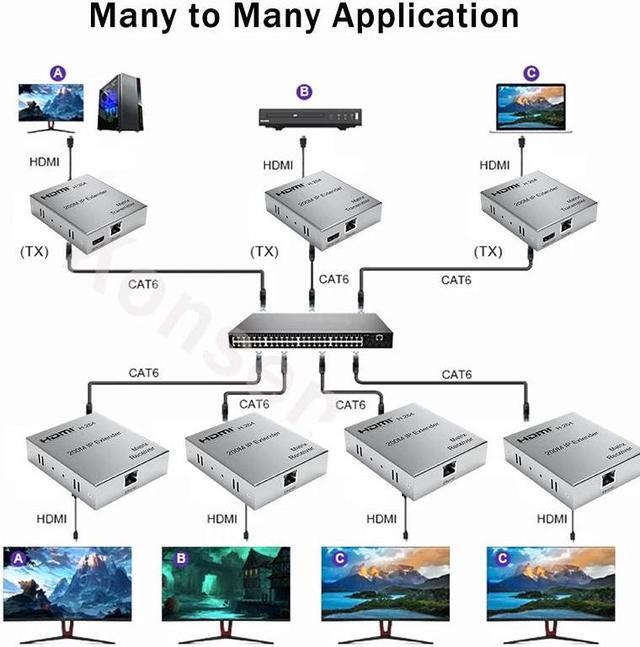

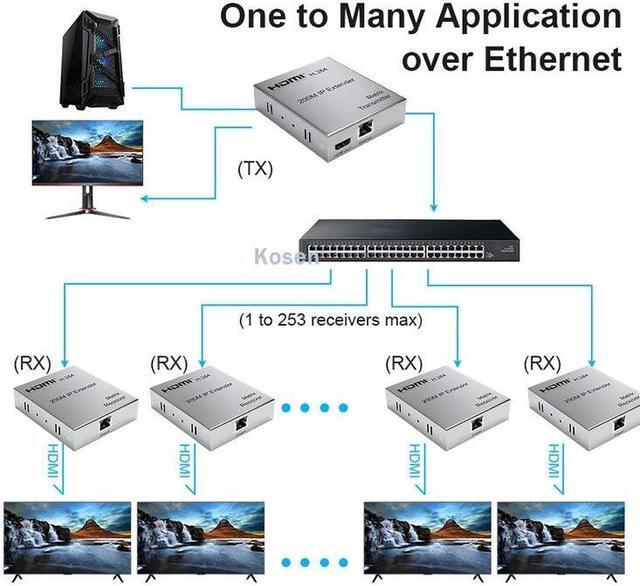

Support point-to-point mode, point-to-multipoint mode and cascade connection mode;
802.3 Ethernet standard;
Support IR remote control;

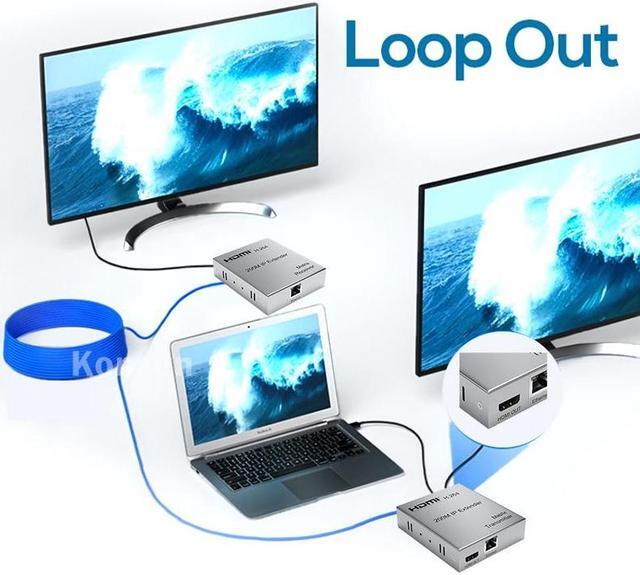

The transmitter support HDMI loop-out function;
The design of pure hardware, plug and play, no need for additional software

Specifications

:
HDTV Resolutions................................................................................ 480p, 720p, 1080p;
Audio.........................................................
Sample rate: 32kHz, 44.1 kHz and 48kHz code;
IR remote control.......................................................................................... 38 KHz; NEC;
Power adapter................................................................................................
DC: 5V/ 1.5A;
The Max Power consumption................................
HDMI sender: 3W HDMI receiver: 3W;
Size(L-W-H)........................................................................................ approx. 93*79*27mm;
Weight.................................................................................................... approx. 228g x 2;
Operating Temperature/Humidity....................... 0-45/10%-80%RH (no condensation);
Storage Temperature/Humidity......................... -10-70/5%-90%RH (no condensation);
Package Content for (1 TX and 1 RX):

1. Transmitter 1PCS

2. Receiver 1PCS
3. 5V Power adapter 2PCS
4. IR cable 1Pair

5. User's Manual 1PCS
Package Content for (1 TX only)

1. Transmitter 1PCS
2. 5V Power adapter 1PCS
3. IR cable 1PCS
Package Content for (1 RX only)
1. Receiver1PCS
2. 5V Power adapter 1PCS
3. IR cable 1PCS
Please note:
There are3 options here, 1TX and 1RX is a complete set; "1 TX only" only has the transmitter and accessories, and does not include RX.; "1 RX only" only receiver and accessories, TX not included.
Please purchase according to your actual needs, we will send you the options you purchased.
