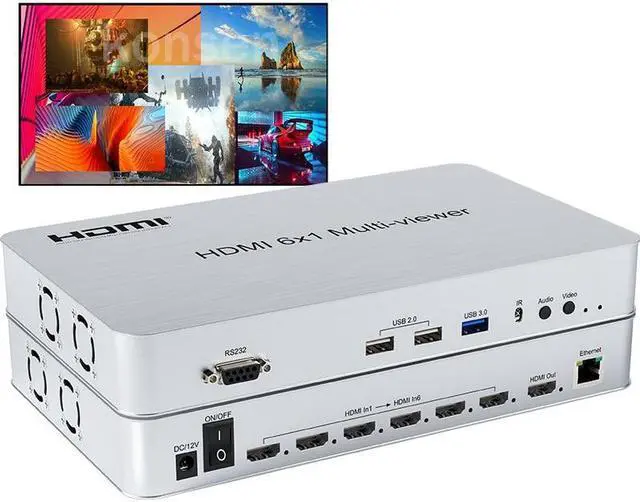

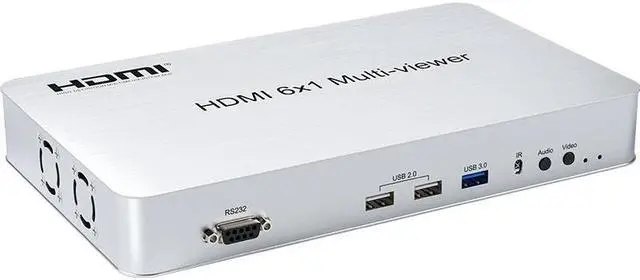

6x1 HDMI KVM Multi Viewer 6 In 1 Out Video Multi Viewer with KVM Switcher Support USB Mouse Keyboard with PIP Zoom In Out Rotate

Introduction:
6x1 HDMI Multi-viewer is a high performance product with six HD screen segmentation and seamless switching output.
It can display 6 HD digital video signal on the same screen, and has a variety of video segmentation,
seamless switching 6 HD input signal synchronously. The control methods is flexible, it can be switched via button, RS232 and
IR control. It's a very practical and stable product and easy to install, can be used in the
major projects, meeting halls and other places.
Features:
* Support 6 HDMI inputs, one HDMI output;
* Support 6 HDMI signal screen segmentation;
* Support 6 HDMI signal seamless switching;

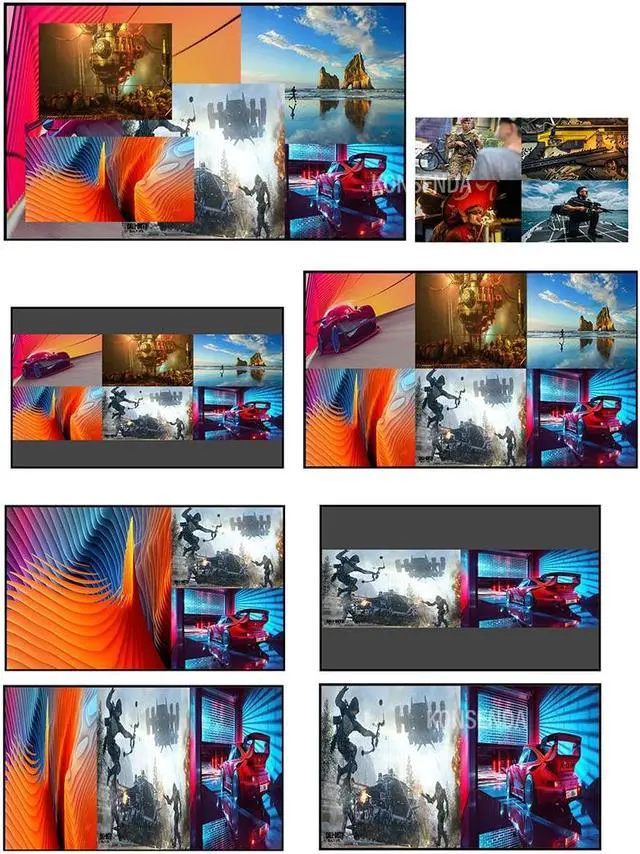

* Support a variety of video segmentation (PIP/POP/PBP/Single image/ Dual image/Four

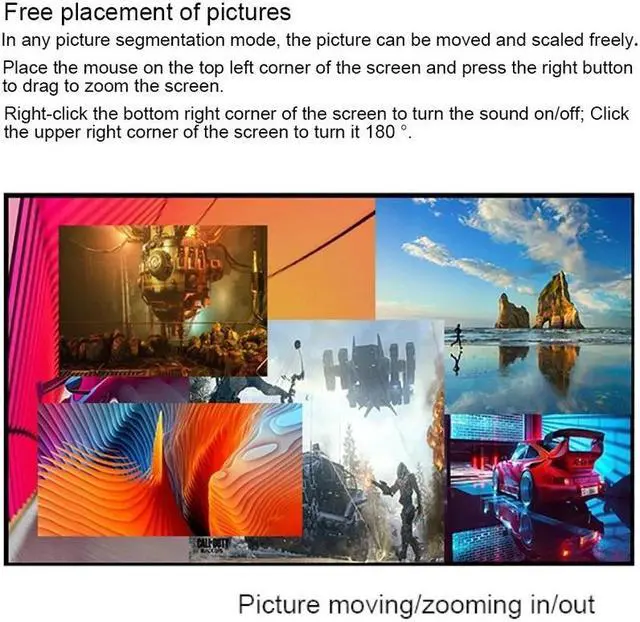

image ect ); Each screen segmentation can move freely/expand/shrink/rotate 180 degree
(put mouse on the top left of image can expand or shrink; Click the top right of image can
acheive rotate ); Click the mouse on the bottom right corner of the screen to switch the
sound ON/OFF;
* Support touch screen;
* Support IR /Button/RS232 control;
* Support audio and video superposition;
* More clearer subtitles;

Specifications

:
HDMI Input resolution.............................................................................. Max 1080P/60Hz
HDMI output resolution.................................................................................. Max 4K/60Hz
Audio format.............................................................................................................. Stereo
Input cable distance..................................................... 8m AWG26 HDMI standard cable
Output cable distance................................................ 10m AWG26 HDMI standard cable
Max working current..................................................................................................... 1.4A
Power adapter format.................. Input AC (50HZ, 60HZ) 100V-240V;
Output: DC12V/2A
Operating Temperature range...................................................................... (-10+45)
Dimension (L x W x H)............................................................................. 263x159x38 (mm)
Weight........................................................................................................................ 1272g
Package include:
1 x 6x1 HDMI multi-viewer
1 x 12V/ 2A power adapter
1 x Remote control
1 x User manual
