9560 9560NGW Dual Band WiFi Card 802.11ac ax Wireless NGFF for .2 for KEY E WiF Dropship

Features:
The Wireless-AC 9560 adapter is a CRF (companion RF module) supporting the integrated wireless 802.11 ac solutions from for Intel. The solution provides Bluetooth-compatible 5 and 2x2 802.11 ac Wi-Fi including wave 2 features such as 160MHz channels. These new features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 802.11 ac devices. Combined with for Intel Core processors and exceptional wireless innovations, the for Intel Wireless-AC 9560 can provide Gigabit wireless speed4 and dramatically improve your connected experience at home, work, or on the go.
It currently only support certain processors: For 8th Gen for Intel Core processors.
for Intel Pentium Silver processors based on Gemini- Lake.
Celeron processors based on Gemini- Lake.
Note:
Even though you can insert these CRF to a standard for. 2 for KEY E socket, they are only for a system designed with the CNVi. Contact your system or motherboard manufacturer to verify compatibility.

Specifications

:
Model: for Intel 9560NGW
: 937263-001 0B
FRU P/N: 01AX768
Dual band: 2.4G hz / 5Ghz (160Mhz)
Max speed: Speed up to 1730Mbps (The router must on 160Mhz)
Bluetooth-compatible Version: 5.0

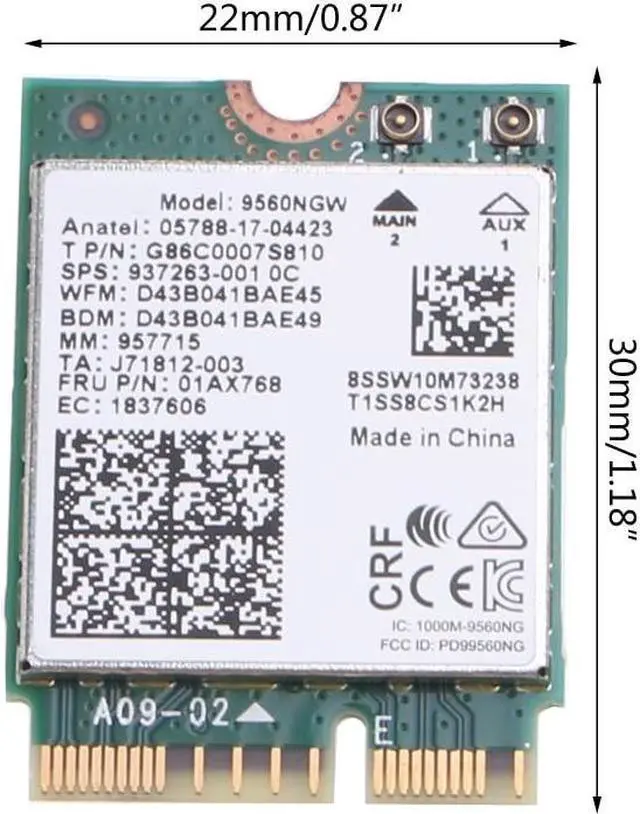

Interface: NGFF for KEY E, 22x30mm
IEEE WLAN Standard: IEEE 802.11 a/b/g/n/ac
MU-MIMO: Supported
Antenna diversity: Supported
Radio ON/OFF control: Supported
Connector Interface:.
2: CNVio
Operating Temperature (Adapter Shield): 0 to 80 (Celsius)
Supported Operating Systems: Only work with Microsoft- for Windows 10
Note:
Not support for Windows 7/8/ 8.1

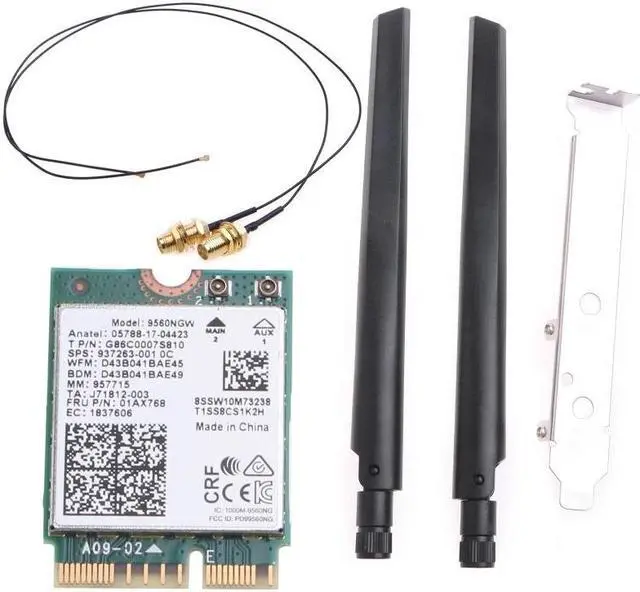

Package Includes:
1 x 9560NGW NGFF for KEY E Wireless card
2 x 6Dbi Antenna
2 x IPEX MHF4 U. FL Cable
Some Screws
Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
