    KEHIPI 2x2 HDMI Video Wall Controller, 1080P@60Hz HDMI DVI TV Wall Processor with Audio Out, 4K HDMI Video Image Processor with RS232, Support 180° Rotate, 2x2 1x2 1x3 1x4 2X1 3x1 4x1 Mode

    Be the first to review this product...

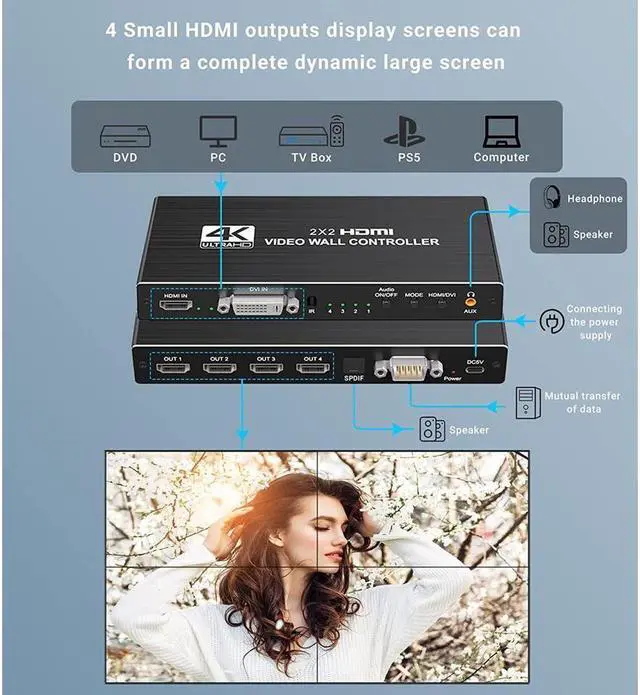

    • HDMI Video Wall Controller: HDMI video wall processor can assign one HDMI or DVI input signal device (DVD, TV box, Xbox, Roku, PC, etc.) to four HDMI output display screens simultaneously, which can form a complete dynamic large screen video wall and digital signage display.
    • 1080P HD display resolution: HDCP 1.4 and HDMI 1.4 compliant, HDMI and DVI inputs can support resolutions up to 4K@30Hz, including 3840x2160P @24/30Hz, 1920x1080P @25/30/50/60Hz;
    • 8 adjustable display modes: Up to 4 LCD TVs or other monitors can be connected, supporting a variety of display modes, all providing a variety of splicing, easy mode switching via IR remote control, also supports RS232 advanced remote control.
    • 180 ° screen rotation and edge masking: rotation function flips the image of HDMI output 1 and output 2 by 180 degrees, which can adjust the screen to the thinnest edge orientation, reducing the middle of the thick bezel, making multi-screen display more comfortable.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Product details

    1080P HDMI/DVI Video Wall Controller with SPDIF & 3.5mm Audio Port

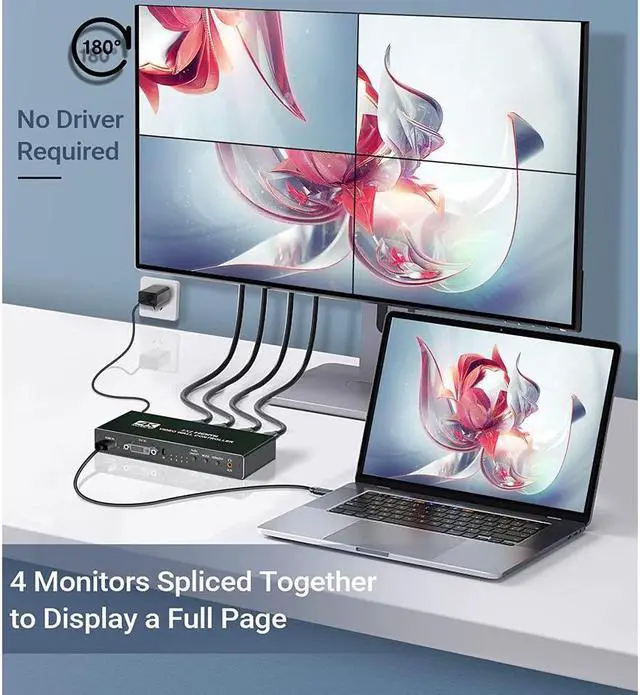

    This HDMI/DVI video wall controller can distribute one HDMI or DVI input signal device to 4 HDMI outputs display simultaneously, via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience. It is the ideal choice for shopping mall video exhibition, video conference, security monitor and other large screen splicing display.

    Product details

    Support Multiple Display Modes

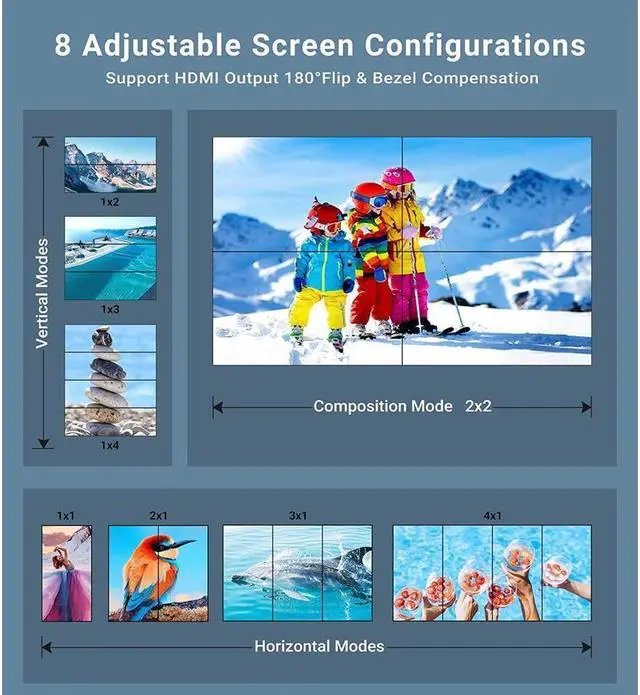

    2x2 HDMI video image processor can connect up to 4 LCD TVs or other displays, which have up to multiple display modes for your choice, such as 2x2, 1x1, 1x2, 1x3, 1x4, 4x1, 3x1, 2x1.

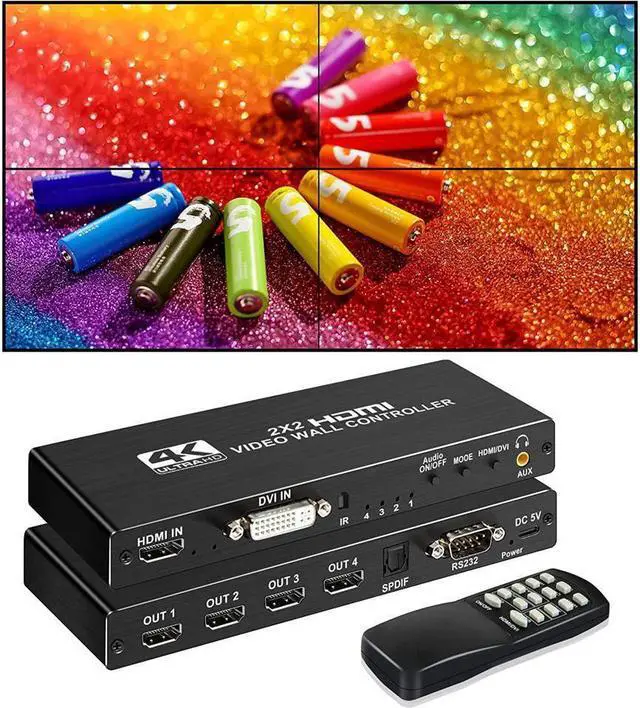

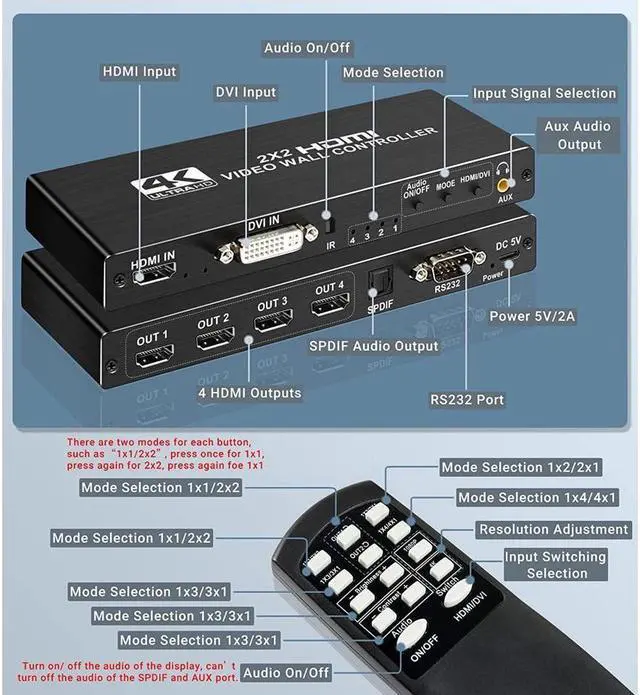

    The 2x2 Video Wall Controller can be controlled by remote, button and RS232.

    All this modes provides variety splicing options, can easily switch the modes through the IR remote control without getting up or press the "Switch" key at the TV wall controller. Also support RS 232 advanced remote-control. (The remote need Two AAA batteries, Not include in the package)

    Product details

    With the 180 degree rotation function, you can flip the image of HDMI output 1 & output 2 to 180°, which can adjust the screens in an orientation with the thinnest edges, reduce the thick middle border. This is easy to adjust it, just press the "Out1 flip Out2 flip" button on the remote.

    NOTE: 180°rotation can work for all the display modes, and the output resolutions NOT more than 1080P@60Hz.

    Product details

    Q: How to use 180 degree rotation function?

    A:180°rotation can work for all the display modes, and the output resolutions NOT more than 1080P@60Hz. So please adjust the HDMI outputs' resolution to 1080P.

    Q: The screens show no "signal", what should we do?

    A: Please set the input source and the output displays to the same resolution 1080P have a try.

    Q: What are the specifications of this HDMI DVI wall controller?

    A: This 4K HDMI LED video wall controller is compliant with HDCP 1.4 and HDMI 1.4. Input format: RGB/YUV 24bit; Output format: RGB4:4:4 24bit.

    Support HDMI/DVI input resolution: 3840x2160P@24/30Hz, 1920x1080P@25/30/50/60Hz; Output resolution: 1920x1080P@60Hz.

    Support audio format: PCM 2.0, Dobly digital and DTS.

    HDMI Video Wall Controller: HDMI video wall processor can assign one HDMI or DVI input signal device (DVD, TV box, Xbox, Roku, PC, etc. ) to four HDMI output display screens simultaneously, which can form a complete dynamic large screen video wall and digital signage display.
    1080P HD display resolution: HDCP 1.4 and HDMI 1.4 compliant, HDMI and DVI inputs can support resolutions up to 4K@30Hz, including 3840x2160P @24/30Hz, 1920x1080P @25/30/50/60Hz;
    8 adjustable display modes: Up to 4 LCD TVs or other monitors can be connected, supporting a variety of display modes, all providing a variety of splicing, easy mode switching via IR remote control, also supports RS232 advanced remote control.
    180 ° screen rotation and edge masking: rotation function flips the image of HDMI output 1 and output 2 by 180 degrees, which can adjust the screen to the thinnest edge orientation, reducing the middle of the thick bezel, making multi-screen display more comfortable.
