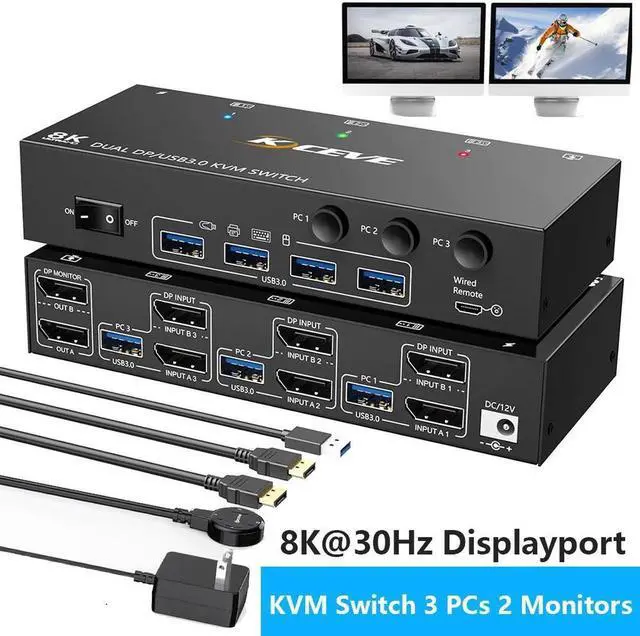

KVM Switch 3 Computers 2 Monitors, 8K@30Hz Dual Monitors Displayport USB 3.0 KVM Switcher for 3 DP Computers Share 2 DP Monitors, Keyboard and Mouse, Wired Remote and 12V Power Adapter Included

Dual Monitor DP KVM Switch for 3 Computer and 2 Monitors


Product name: Displayport KVM Switch for 3 computer 2 monitors
Material: Metal shell

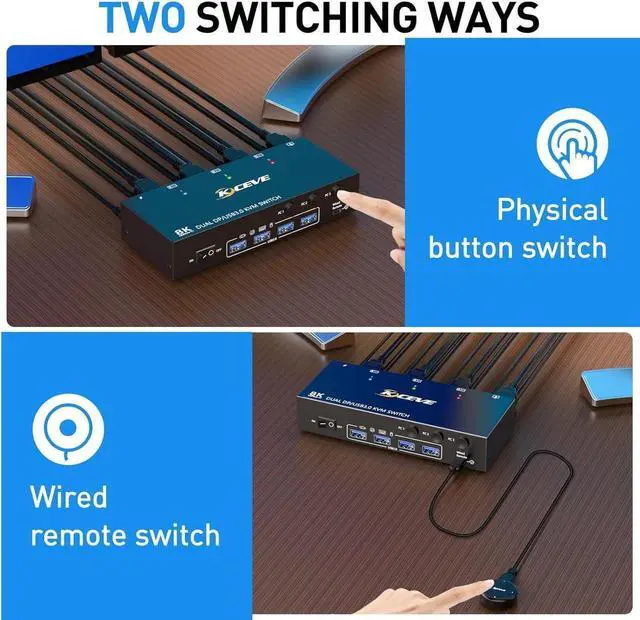

Control way: physical button and wired control
Keyboard hotkey switch way: Not supported
Resolution range: Up to 8K@30Hz
Support wired or wireless keyboard and mouse
Easy set up for displayport devices, 2 DP connection are requird for each computer



Each computer needs 2 DP ports, please make sure your computer has 2 DP ports before purchasing.
This USB 3.0 version 2 monitor KVM switch is for 3 computers share 2 monitors, keyboard, mouse and USB devices. You have to connect 6 DP cables to make 2 monitors working.
Upgraded USB 3.0 version ensure data transfer more faster and stable, it's a great solution to solve many USB device disconnected issue during use.
Power suppy is not required for normal USB device, but if USB recognition is unstable, we recommend connect a external power adapter to provide enough power.
Bluetooth mouse and keyboard will be exist delay for few seconds, we not recommend use Bluetooth mouse and keyboard.
8K@30Hz Displayport KVM Switch for 3 Computers 2 Monitors



KVM switch DisplayPort 1.4 supports up to 8K@30Hz, 4K@144Hz, 2K@144Hz and is backwards compatible with DP 1.2.


NOTE: The final resolution also depends on the graphics card, monitor, cables and adapters and their collaboration. To achieve the best resolution, graphics cards, monitors and cables must support 8K.

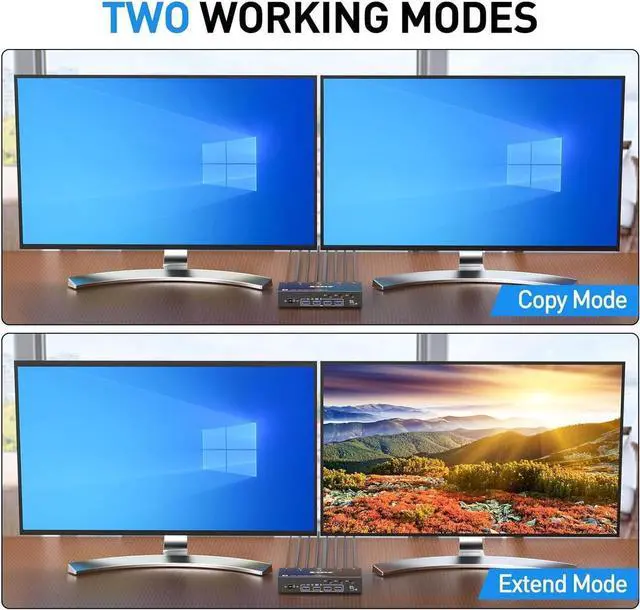

Support 2 display modes
In "COPY" mode, 2 output monitors will output same image from PC1 or PC2.
In "EXTEND" mode, the working window from main screen can be dragged to seond output monitor. You can have the mouse across between 2 monitors.

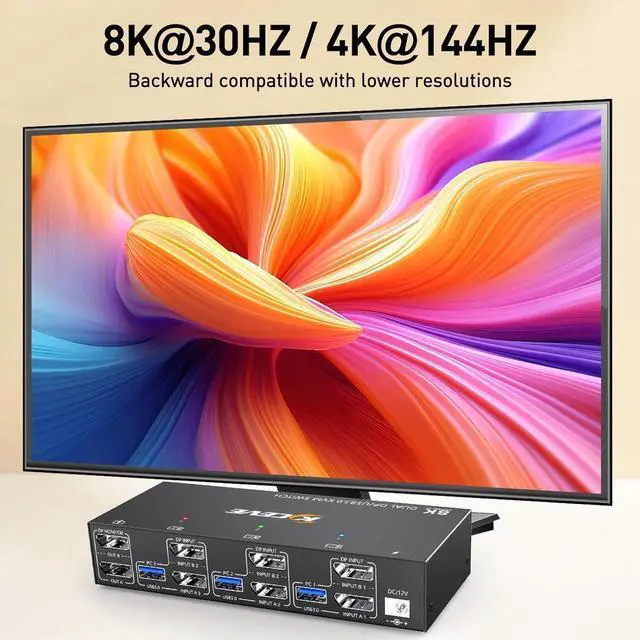

Support 8K HD resolution
KVM switch DisplayPort 1.4 supports up to 8K@30Hz, 4K@144Hz, 2K@144Hz and is backwards compatible with DP 1.2.
NOTE: To achieve the best resolution, graphics cards, monitors and cables must support 8K.

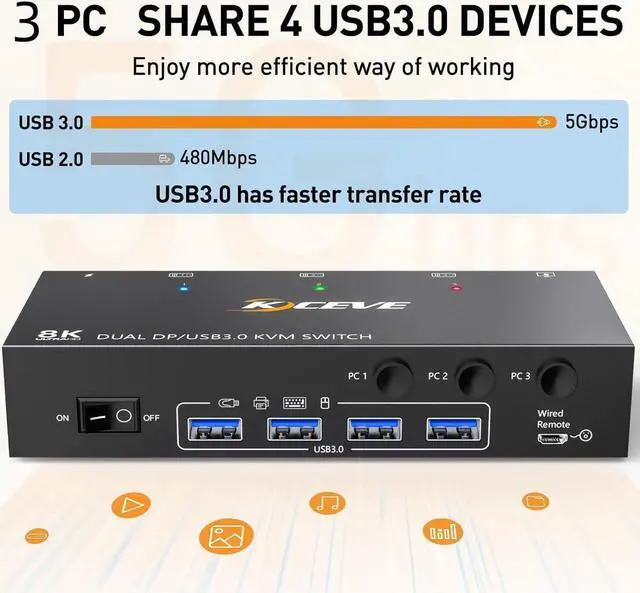

4 USB 3.0 ports
Upgraded USB 3.0 version ensure data transfer more faster and stable, it's a great solution to solve many USB device disconnected issue during use.
Power on / off button
Power on / off button allows power outage at any time, it is very convenient to turn off the 2 monitors KVM switch when you are not working.
DC12V port for power supply
External power supply is not required for normal USB device.
DC12 power adapter is included. When connected high power consumption USB device, you will need to connect power adapter to ensure it's connection stable
3 LED light indicator
Blue light shows PC1 working
Green light shows PC2 working
Red light shows PC3 working

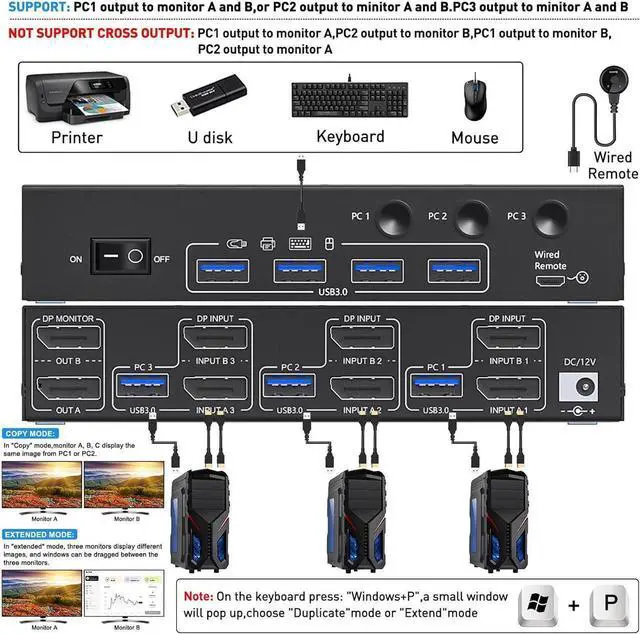

Detailed explanation of common non-2*Displayport configurations
Laptop/Desktop (2*DP Port) Just use 1*USB + 2*DP cables to connect each PC and KVM.
Laptop/Desktop (2*HDMI Port) Requires 1*USB cable+2*HDMI to DP cable or (2*HDMI to DP converter with USB powerd + DP cable) Not recommended.
Desktop (1*HDMI +1 DP Port) Requires 1*USB cable+1*DP cable + 1*HDMI to DP cable with USB powerd or (HDMI to DP converter with USB powerd + DP cable) Not recommended.
Laptop(only 1*DP+USB-C Port) Requires 1*USB cable+1*DP cable + 1*USB-C to DP cable or (USB-C to DP converter + DP cable)
Laptop(only 1*HDMI+USB-C Port) Requires 1*USB cable+1*HDMI to DP cable with USB powerd + 1*USB-C to DP cable or (USB-C to DP converter + DP cable)
Note: HDMI to DP cable is Not recommended.
Laptop(only USB-C Port) Requires 1*USB cable+ USB C docking station with 2 DP ports and supports expansion capabilities
PC with VGA or DVI Port VGA or DVI to DP cables are Not recommended
Monitor (DP Port) Just use 1*DP cable to connect the KVM and Monitor.
Monitor (HDMI Port) Requires 1*DP to HDMI cable or ( DP to HDMI converter + HDMI cable) to connect the KVM and Monitor.
Monitor (only DVI Port) 1*DP to DVI cable or (DP to DVI converter + DVI cable)
Monitor (only VGA Port) 1*DP to VGA cable or (DP to VGA converter + VGA cable)
Monitor(only USB-C Port) Not support
About resolution Using conversion cables or converters may cause monitor resolution to drop, flicker, or the monitor to not work (depending on their quality and compatibility). It is recommended to use 8K DP 1.4 cables with a length within 1.5 meters.
