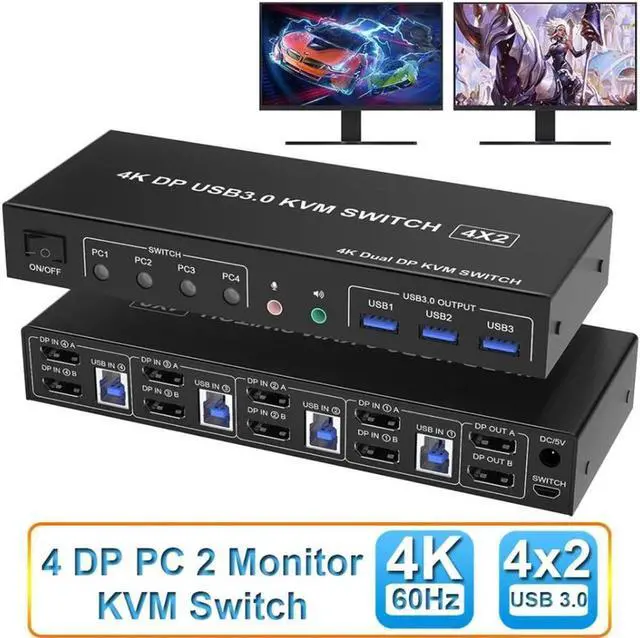

USB 3.0 Displayport KVM Switch 2 Monitors 4 Computers 4K 60Hz, Dual Monitor Displayport KVM Switch 4 Port with Audio Microphone Output and 3 USB 3.0 Ports, Display Port KVM Switch 4 in 2 Out

4 ports dual-monitor Displayport USB 3.0 KVM Switch (DP + DP + DP + DP)-4 computers share 2 monitors and 3 USB 3.0 devices.


This DisplayPort KVM Switch 4-Port, you can easily control 4 signal sources at the same time, share the same keyboard and mouse, and share 2 monitors.
You can toggle and control any input device at any time with a button switch.
Product Features:

4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 peripherals;
4 Ports Dual displayport KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output;
Supports DP 1.2 with a transfer rate of 18Gbps; Dual monitors output support up to 4K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card. );
Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
Compatibility with all computers and other devices with DP ports.
Advanced switching modes: push button and wired remote;
The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
No complicated installation is required, and non-professionals can easily operate it.

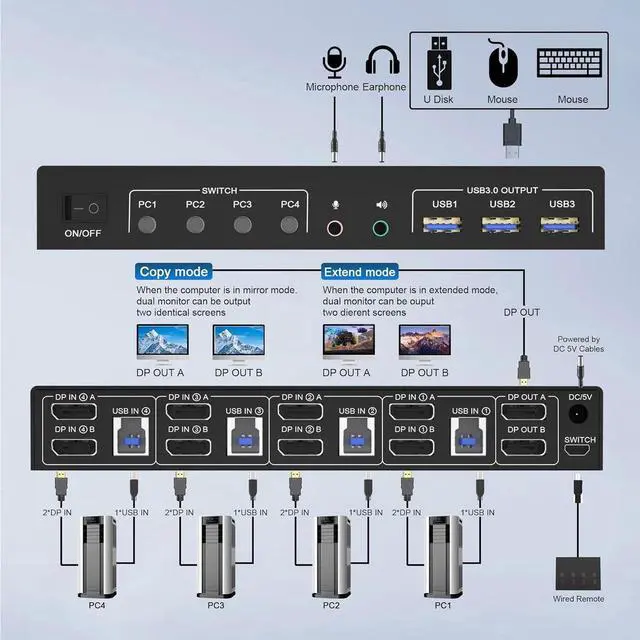

Connection steps:



1. Insert the DC/5V adapter into the KVM;

2. Plug the DP cable into the KVM and monitor; (Output)

3. Plug the DP cable and USB cable into the KVM and your computer/laptop (DP cables are not included) (Input)
DP IN1 A + DP IN1 B + USB IN1=PC1
DP IN2 A + DPIN2 B + USB IN2=PC2
DP IN3 A + DPIN3 B + USB IN2=PC3
DP IN4 A + DPIN4 B + USB IN2=PC4

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port
Kindly Note:




1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 DP cables+1 USB cable) connect to the KVM.

2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
3. Before purchasing this DP dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally, Otherwise, the KVM will not be available.

4.
Note: DP cables are not included

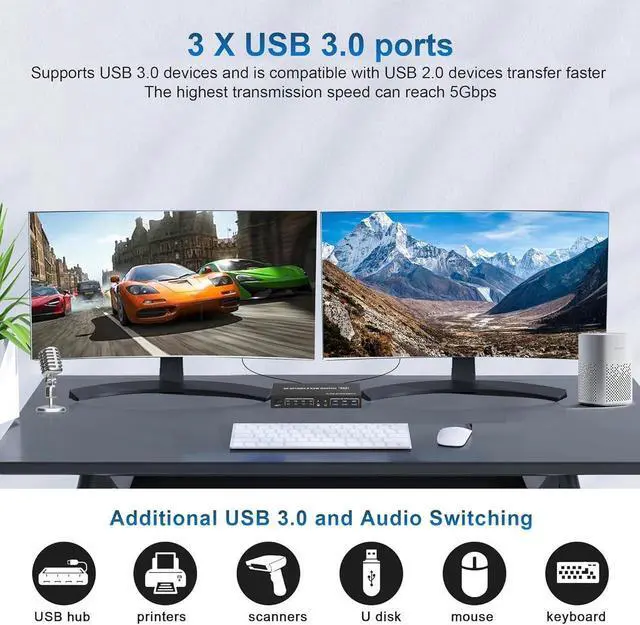

USB 3.0 interface 4 PCs 2 Monitors with 5Gbps

USB 3.0 Supports 5Gbps data transfer speed, can transfer files in Seconds, Much faster than USB 2.0.
3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.
Supports separate audio and microphone output
The KVM Switch comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone.

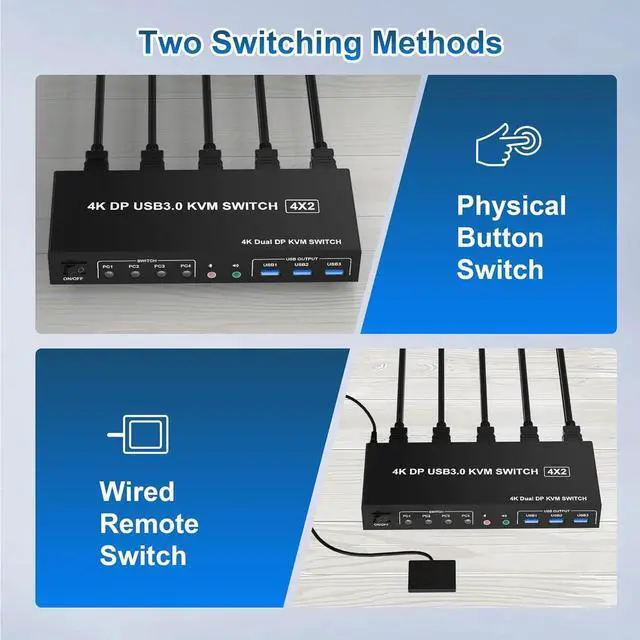

Support 2 Switching Modes
Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
Please note: This KVM does not support hotkey switching.
USB 3.0 displayport Dual Monitor KVM Support 4K@60HZ
Supports high resolution up to 4K@60Hz and downwards.
Note: Only when both your computer Graphics card and monitor support 4K@60Hz then you can get 4K@60Hz effect, so if you want the max resolution you have to check your devices (Cable, monitor, computer Graphics) first.
Three Display Modes


3 Display Modes
Extended Display
Mirrored Display
Spliced Display


If you are a designer or illustrator, you can use this mode to see the effect while working.



1)Extended mode can output two different screens and mirror mode can output two identical screens.
Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.

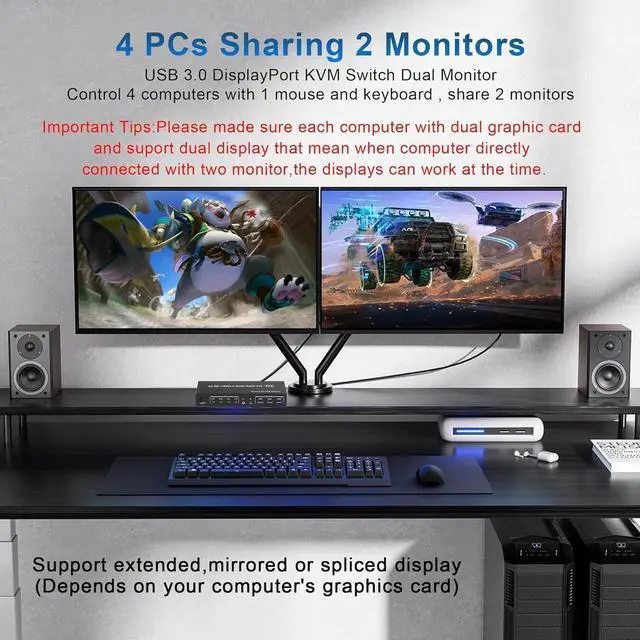

2) The requirement for this KVM to achieve a dual-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM.
