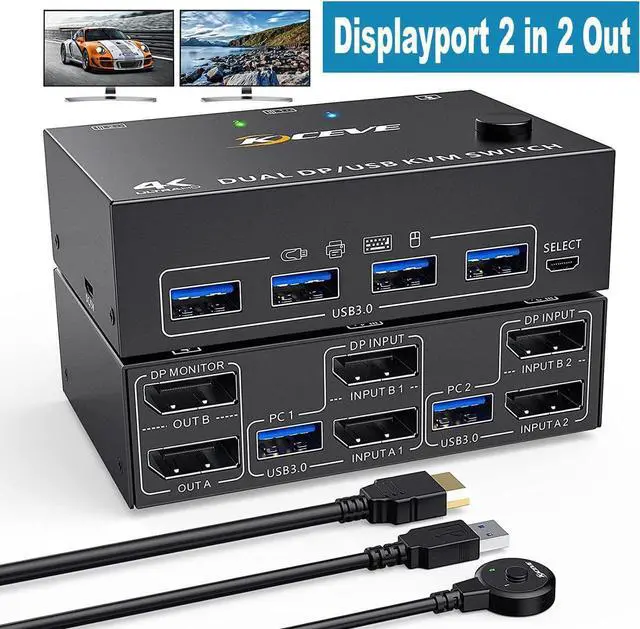

2 Port Dual Monitor DisplayPort KVM Switch 8K @30Hz 4K @60Hz, 2 in 2 Out Displayport KVM Switch for 2 PC 2 Monitors, KVM Switches with 4 USB 3.0 Ports, with DP + USB Cable and Desktop Controller

Dual Monitor KVM Displayport


Product advantages:
2 computers share 4 USB 3.0 devices and 2 monitors.
Dual monitor output supports extended and copy display.
Switching mode: push-button switch and wired remote control.
Supports wired or wireless keyboard and mouse.
Support for most major operating systems, including Windows, Linux, and Mac
Support the highest resolution 8K@30Hz, 4K@144Hz, downward compatible.
Supoort DP 1.2 and downward compatible.
Ultra HD 8K@30Hz AND 4K@60HzVisual feast

This DisplayPort 2 PC 2 monitor KVM switch supports ultra-high resolutions up to 8K@30Hz and 4K@60Hz and is backwards compatible with other lower resolutions and refresh rate. Supports DP 1.4 standard, a transfer rate of up to 32.4G bps, the image transmission is more realistic and offers you a clearer viewing experience.

Resolution range: 7680X4320@30Hz 3840*2160@120Hz/60Hz 3440*1440@144Hz/120Hz 2560*1440@144Hz/120Hz 1920*1080@60Hz@60120 Hz



Important note:

If you need a resolution and refresh rate of 4K@120Hz or higher, please make sure that the computer can output a resolution and refresh rate of 4K@120Hz or higher, the monitor can support a resolution and refresh rate of 4K@120Hz or higher and the connection. cable a DP1. 4 8K cables.
KVM Switch DisplayPort Dual monitors with 4 USB 3.0 port

KVM Switch DisplayPort dual monitors with 4 USB 3.0 port, backward compatible with USB 2.0 and USB 1.1 share USB devices such as scanners, printers, flash drives, etc.



Note:


1. If the USB 3.0 input ports are not or incorrectly connected, the USB output device will not be detected.


2. If you use high power USB devices, or if the USB port is not detected and the detection is not stable, please connect the DC5V power cord (included)

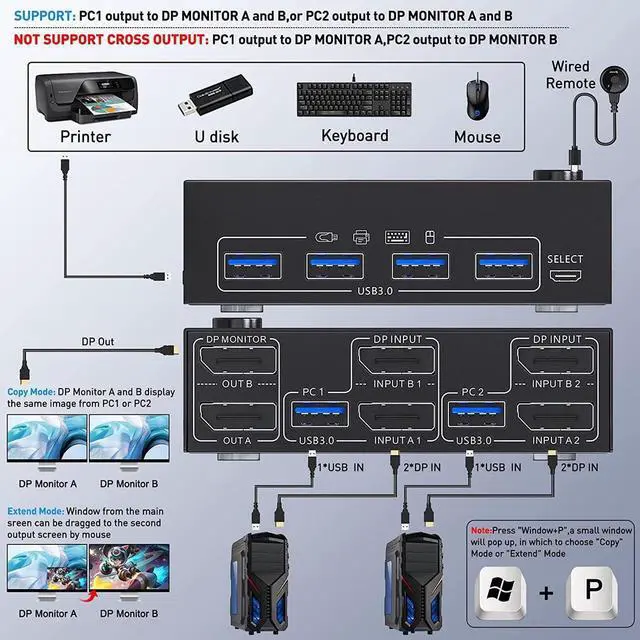

How to connect?

Step
1. Connect 2 x DP cables +1 x USB cable to PC 1 and KVM (USB 1, INPUT A1, INPUT B1).

Step
2. Connect 2 x DP cables +1 x USB cable to PC 2 and KVM (USB 2, INPUT A2, INPUT B2).

Step
3. Connect a 2 x DP cable between the KVM (OUT A, OUT B) and the monitors.

Step
4. Connect the keyboard and mouse to the USB ports of the KVM.

Step
5. Plug the USB devices into the USB port of the KVM.

Step
6. Connect the desktop controller to the SELECT port and remotely switch between PC1 and PC2.

Note:


1. Each computer needs to be connected with 2 DP cables and 1 USB cable for keyboard, mouse and monitor to work properly. If there is a USB connection between computer and KVM, but mouse and keyboard or other USB devices are not detected, please connect the DC5V power supply (power cord is included)


2. After connecting the computer to the monitor via the KVM, set the screen output mode (press Windows+P) on the keyboard and select the output mode in the displayed dialog box. Otherwise, only 1 of the two connected monitors will have a picture.
image for this item
with 4x USB 3.0 port

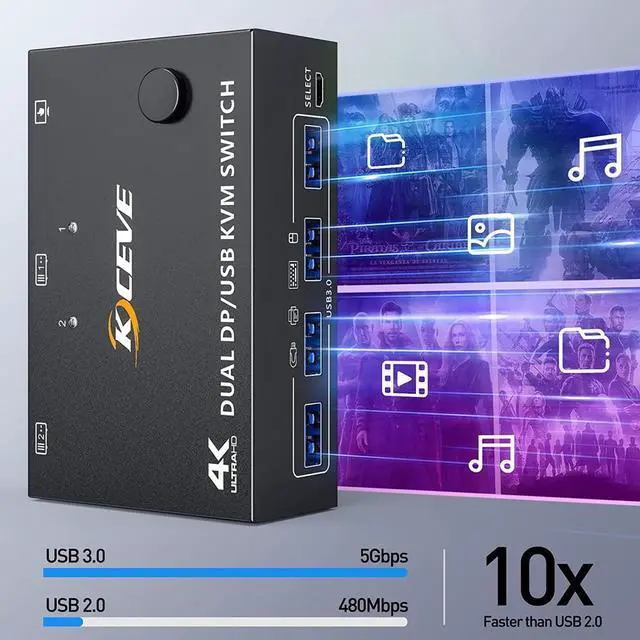

USB 3.0 provides data transfer speeds of up to 5Gbps for a better data transfer experience.
If your USB port is used with a more powerful USB device, you need to connect a DC/5V power supply to power it (DC/5V power cable included)
Convenient and quick switching: Just press the button on the front of the KVM panel or wired desktop controller (included), and you can switch to another computer in about 2-4 seconds.
