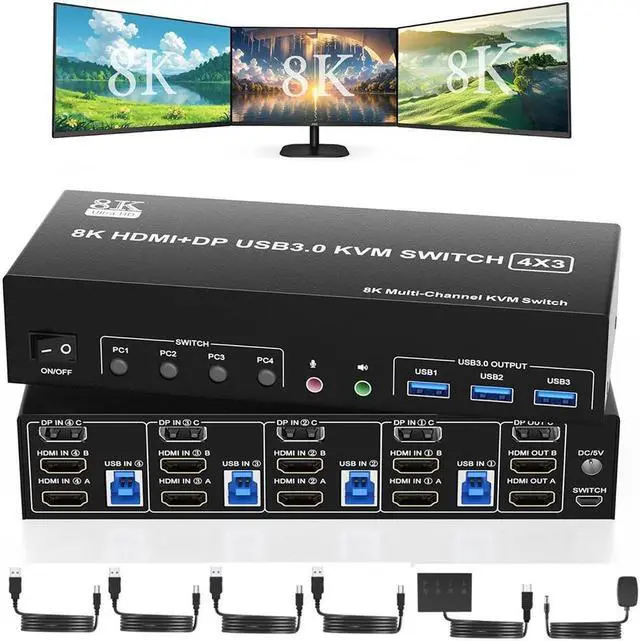

KVM Switch 3 Monitors 4 Computers 8K@60Hz, 2 HDMI +1 Displayport Triple Monitor KVM Switch for 4 PCs Share 3 Monitor and 3 USB 3.0 Ports, with Audio Microphone Output Support Extended and Copy Mode

8K@60Hz 4K@144Hz 2 HDMI + 1 DisplayPort USB 3.0 Triple Monitor KVM Switch for 4 Computer Sharing 3 Monitor and 3 USB 3.0 Ports, Audio & Microphone
KVM Switch Does Everything You Need!


4 Port USB 3.0 triple monitor KVM Switch (HDMI+ HDMI+DisplayPort ). Each input source device must be connected to 3 monitor.

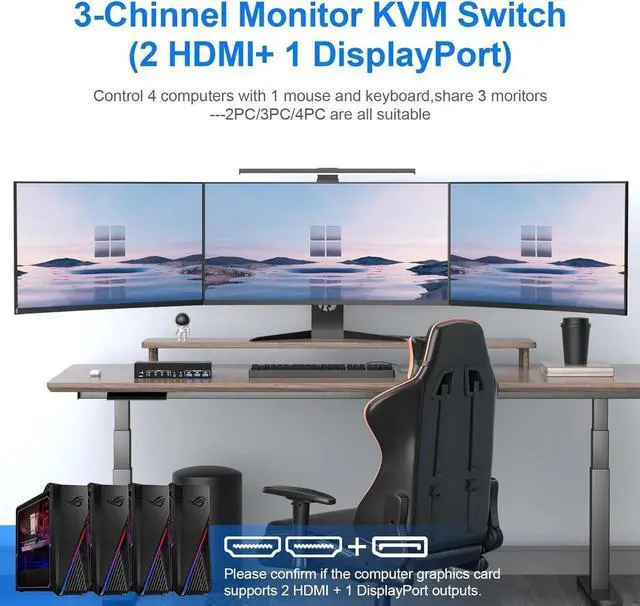

This kvm switch triple monitor 4 port help you control 4 PCs share 3 monitors by only one set of USB keyboard & mouse.
Advantages:

1, Share one set of keyboard, mouse and 3 monitors (2 HDMI +1 DisplayPort ) between 4 computers or laptops;
2, Supoort DP 1.4, HDMI 2.1 and downward compatible. 3 monitors output support up to 8K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card. );
3, No complicated installation is required, and non-professionals can easily operate it, Ideal for multi-tasking professionals and gamers who need to access multiple devices quickly and efficiently;
4, Cross support major operation systems including Windows, Linux, Mac and more;
5,
Switching modes: Buttons on the front panel and wired remote;
6, The ports that need to plug in DP/HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
7, A USB hub can expand the USB 3.0 ports if multiple connections are required, Please use a hub that can provide power. Also an audio microphone output.

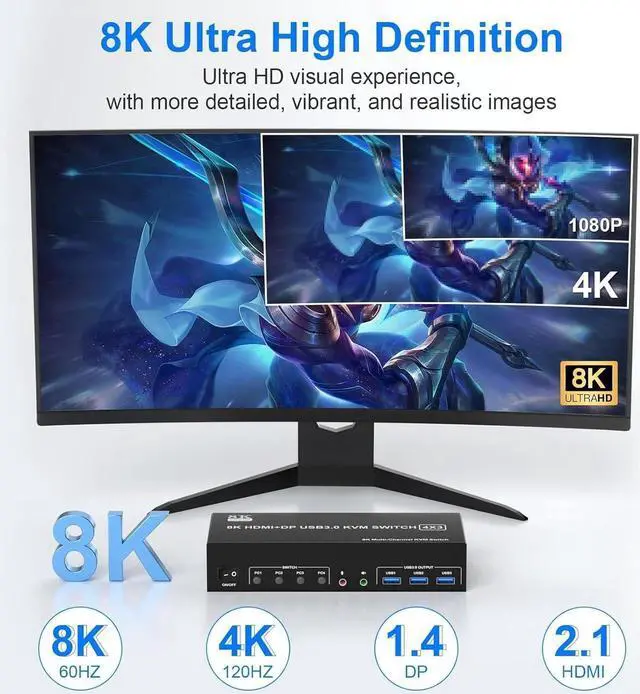

HDMI 2.1, DP 1.4 HD Resolution


This kvm switch 3 monitor supporting high resolution max up to 8K@60Hz, and also supports 4K@60Hz or other lower resolution (Downward Compatible).


Note:

Only when both your computer Graphics card, monitor and DP, HD-MI cable support 8K then you can get 8K effect, so if you want the max resolution you have to check your devices first.

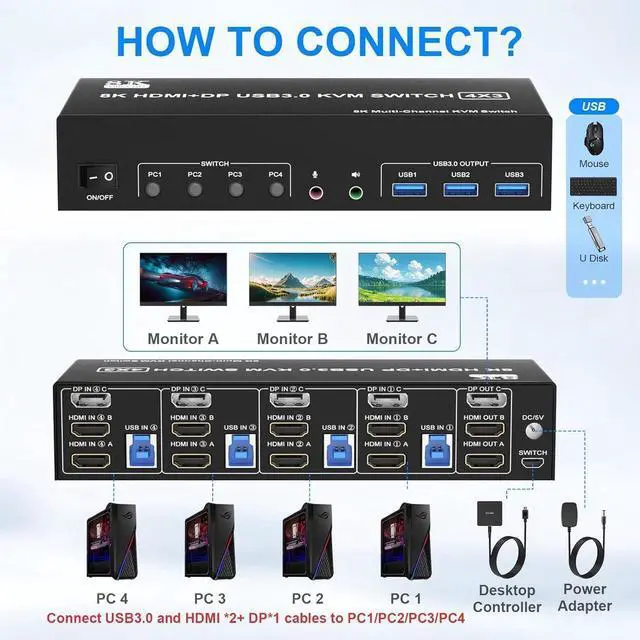

installation steps:



1. Insert the power adapter into the KVM;

2. Plug the 2*HDMI cable and Displayport cable into the KVM switch and monitor; (Output)
3. 1). Connect PC1 Firstly (Input)
Use 1 HDMI cable to connect the "HDMI IN 1 A" input interface and PC1 HDMI A output interface,
Use 1 HDMI cable to connect the "HDMI IN 1 B" input interface and PC1 HDMI B output interface.
Use 1 DP cable to connect the "DP IN1 C" input interface and PC1 DP C output interface.
Use 1 "USB-a to USB-b" USB 3.0 cable to connect the "USB IN 1" input interface and PC1 USB 3.0 interface.
2) Then, Connect PC2, PC3, and PC4 according too the connection steps of PC1.

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port
Note:




1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(1 DP cables+2 HDMI cable +1 USB cable) connect to the KVM.
2. If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.

3.
Note: DP/HDMI cables are not included

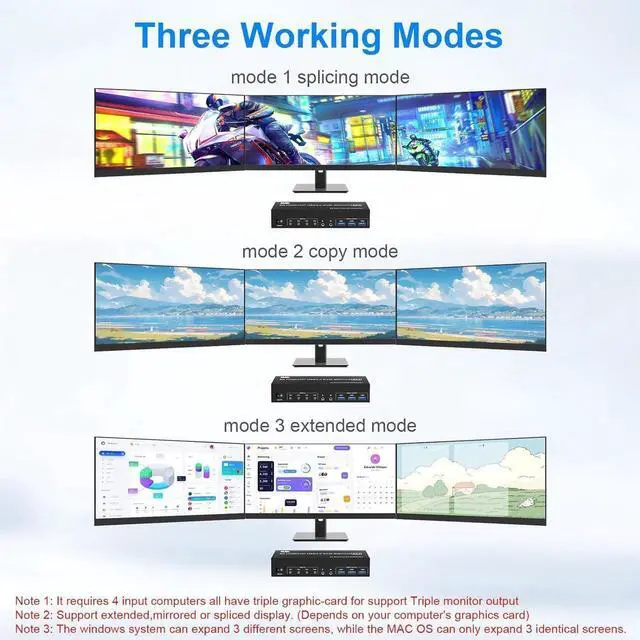

3 Display Modes


Extended Display
Mirrored Display
Spliced Display
If you are a designer or illustrator, you can use this mode to see the effect while working.
1)Extended mode can output 3 different screens and mirror mode can output 3 identical screens.
Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2) The requirement for this KVM to achieve a 3-screen display is that each PC you connect to has the capability to support a 3 screen display. This has nothing to do with KVM.

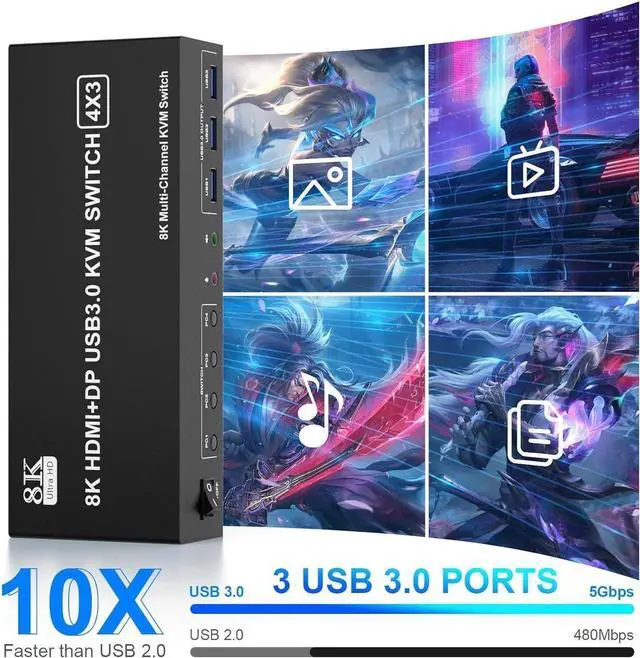

3 USB 3.0 Ports


USB 3.0 is compatible with USB 3.0, and the data transmission speed can reach 5Gbps, while the data transmission speed of USB 2.0 is only 480Mbps.
Supports separate audio and microphone output
Display port kvm switch comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone.

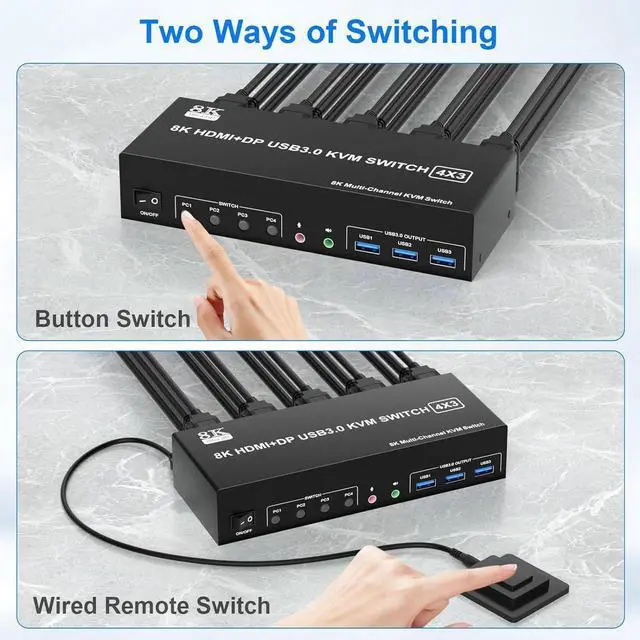

Desktop Controller
The included extension cable for the push button switch allows for easy switching without having to stand up.
Button Switch
With a touch of a button on the control panel, you can easily and quickly switch between computers.
LED Indicator
When switching to which PC, the LED will tell you whether PC1 or PC2/PC3/PC4 is active.
