4 Port 8K Displayport USB 3.0 KVM Switch 3 Monitors 4 Computers, DP1.4 Triple Monitor KVM Switch with Audio Microphone Output and 3 USB3.0 Ports, Displayport KVM Triple Monitor Keyboard Mouse Switcher

USB 3.0 Displayport KVM Switch (DP + DP + DP + DP) 4 ports Triple Monitor


Does Everything You Need!
4 port USB 3.0 triple monitor DP KVM Switch (DP+ DP+DP). Each input source device must be connected to 3 Triple-monitor.

This kvm switch triple monitor 4 port help you control 4 PCs share 3 monitors by only one set of USB keyboard & mouse.

Advantages:



1, Share one set of keyboard, mouse and 3 monitors (3 DisplayPort) between 4 computers or laptops;
2, Supoort DP 1.4 and downward compatible. 3 monitors output support up to 8K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card. );
3, No complicated installation is required, and non-professionals can easily operate it, Ideal for multi-tasking professionals and gamers who need to access multiple devices quickly and efficiently;
4, Cross support major operation systems including Windows, Linux, Mac and more;
5,
Switching modes: Buttons on the front panel and wired remote;
6, The ports that need to plug in DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

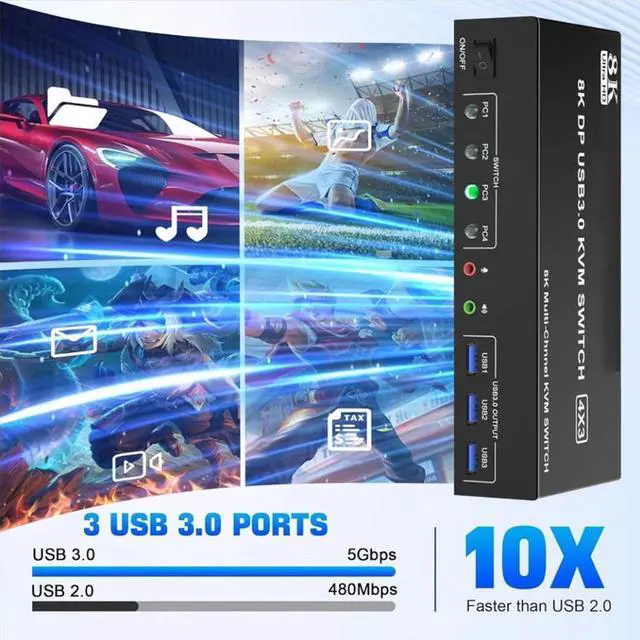

7, A USB hub can expand the USB 3.0 ports if multiple connections are required, also an audio microphone output.
Displayport KVM Switch up to 8K@60HZ


8K/4K HD Resolution
This kvm switch 3 monitor supporting high resolution max up to 8K@60Hz, and also supports 4K@60Hz or other lower resolution (Downward Compatible).


Note:

Only when both your computer Graphics card, monitor and DP cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.
Connection steps:



1. Insert the DC/5V adapter into the KVM;

2. Plug the 3 DP cable into the KVM and monitor; (3 DP Output)

3. Plug the 3 DP cable and USB cable into the KVM and your computer/laptop (DP cables are not included) (Input)
DP IN 1A + DP IN 1B + DP IN 1C + USB IN 1=PC1
DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2=PC2
DP IN 3A + DP IN 3B + DP IN 3C + USB IN 3=PC3
DP IN 4A + DP IN 4B + DP IN 4C + USB IN 4=PC4
Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported. The same goes for PC3 and PC4.

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port
Note:


1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(3 DP cables+1 USB cable) connect to the KVM.
2. If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.

3.
Note: DP cables are not included
3 Display Modes


3 Display Modes

Extended Display
Mirrored Display
Spliced Display


If you are a de-signer or illustrator, you can use this mode to see the effect while working.



1)Extended mode can output 3 different screens and mirror mode can output 3 identical screens.
Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2) The requirement for this KVM to achieve a 3-screen display is that each PC you connect to has the capability to support a 3 screen display. This has nothing to do with KVM.
2PC/3PC/4PC are all suitable


4 ports does not mean that it can only be connected to 4 computers. You may have 4 computers currently, or you may only have 2 computers now, but you may need to use 3 or 4 computers in the future, then you can choose this switch. As long as your computer confirms that it supports dual-screen display, you can use 2 screens.

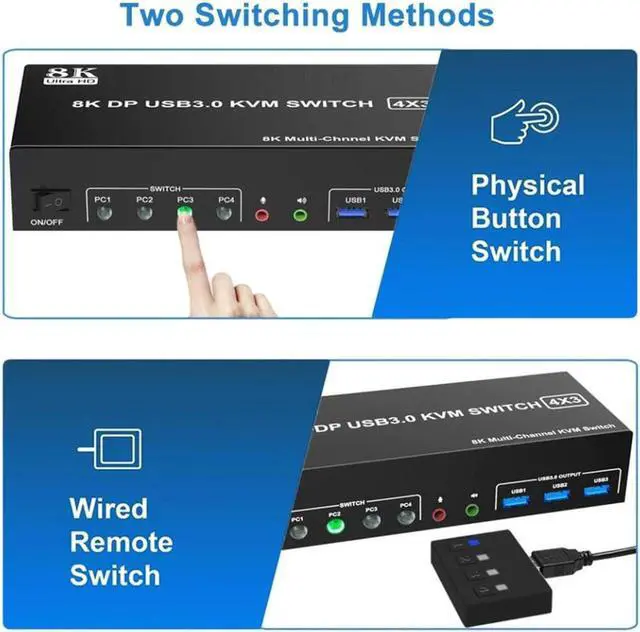

3 monitors 4 computers KVM Support 2 Switching Modes
Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
Please note: This KVM does not support hotkey switching.
Supports separate audio and microphone output
Display port kvm switch comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone.
LED Indicator
When switching to which PC, the LED will tell you whether PC1 or PC2/PC3/PC4 is active.

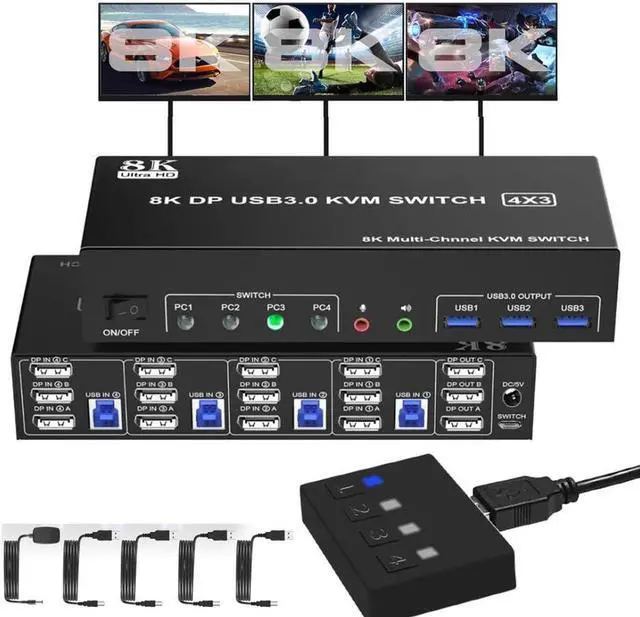

What You Get
1x 4 Ports USB 3.0 DisplayPort Triple Monitor KVM Switch,
4x USB 3.0 Cables,
1x Power Adapter,
1x Wired Button Switch,
1x User's manual.
We offer 12 months warranty. If you have any questions about the product, please contact us.
