8K@60Hz Displayport KVM Switch 3 Monitors 2 Computers 4K@144Hz, DP USB 3.0 KVM Switch Triple Monitor for 2 PCs Share 3 Monitors, RJ45 Ethernet Splitter 1 to 2, Audio Mic Port and 3 USB 3.0 Port

8K@60Hz USB 3.0 KVM Switch 3 Monitors 2 Computers 4K@144Hz


DP 1.4 Displayport KVM Switch Triple Monitor for 2 PCs Share 3 Monitors, RJ45 Ethernet Splitter 1 to 2, Audio Mic Port and 3 USB 3.0 Devices

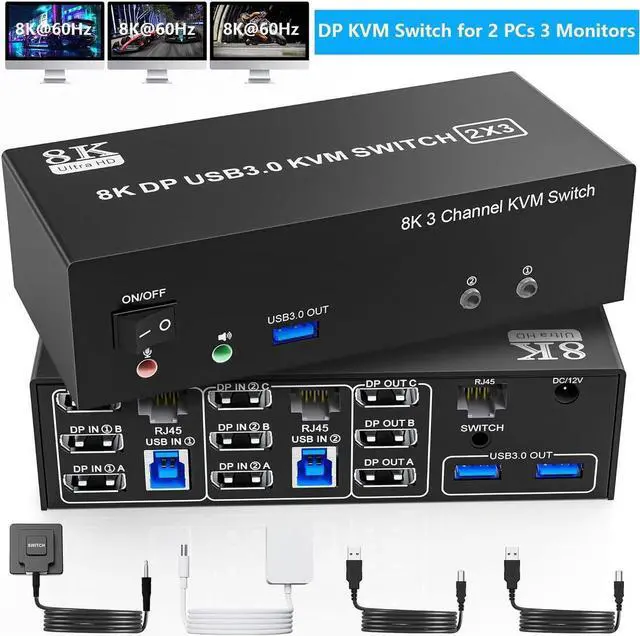

You will get:

1x 8K@60Hz Triple Monitor KVM Switch,
2x USB 3.0 Cables,
1x Power Adapter,

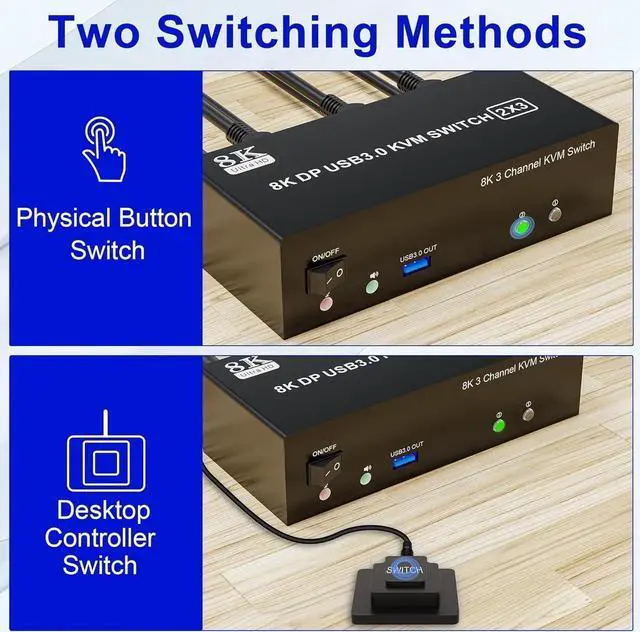

1x Wired Button Switch,
1x User's manual.
DP cables and Ethernet RJ45 cables are not included

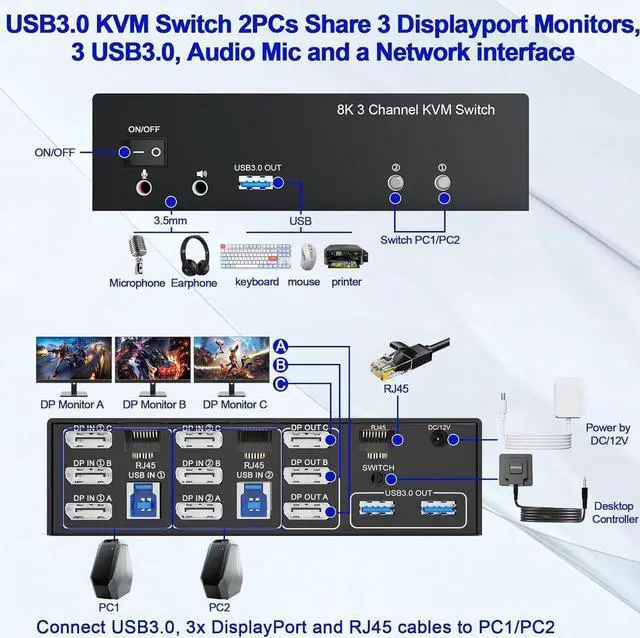

installation steps:



1. Insert the DC/5V adapter into the KVM;

2. Plug the Ethernet RJ45 cable into the KVM switch;

3. Plug the 3*DisplayPort cable into the KVM switch and monitor; (Output)

4. Plug the DisplayPort cable, Splitter Adapter Cable and USB cable into the KVM switch and your computer/laptop (DP cables are not included) (Input)
DP IN 1A +DP IN 1B + DP IN 1C + USB IN 1 + RJ45=PC1
DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2 + RJ45=PC2
Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding.
Mixed insertion is not supported.

5. Insert the mouse and keyboard into the KVM switch

6. If needed, you can connect a microphone and audio port
Note:




1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(3 DP+USB cable) connect to the KVM.

2. If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.

3.
Note: DP cables and Ethernet RJ45 cables are not included
KVM Switch Triple Monitor RJ45 Ethernet Splitter 1 to 2:


This RJ45 Ethernet Splitter KVM Switch can split one network cable into two outputs.
Two computers can be connected to the Internet at the same time.
Supports 1000 Mbps Gigabit Ethernet performance. RJ45 Ethernet Splitter connector extender is compatible with Cat67 Cat6 Cat5 Cat5e network ethernet cable.
KVM Switch Triple Monitor Ultra HD 8K@60Hz:


3 Monitors KVM Switch DisplayPort: support resolution up to 8K@60Hz/4K@144Hz, and backward compatible with lower resolution.
Note: that you can only get 8K if both your computer's graphics card and monitor support 8K.

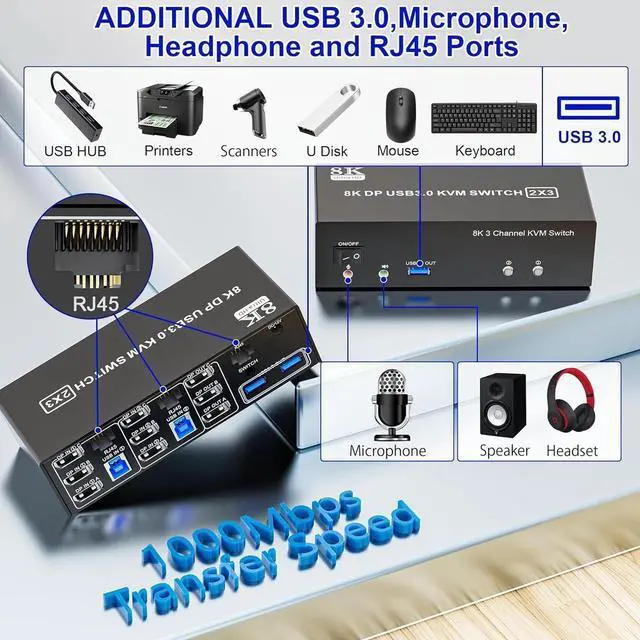

3 USB 3.0 Ports


Audio & Microphone Output:

Triple monitor KVM switches with 3 integrated USB 3.0 ports that can recognize keyboard, mouse, printer, scanner and other USB devices.

Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0 / 1.1 devices.

3 Monitor KVM also supports separate audio and microphone output.

Plug and play without any software needed.
3 USB 3.0 Ports


Triple monitor KVM switches with 3 integrated USB 3.0 ports that can recognize keyboard, mouse, printer, scanner and other USB devices.
Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0 / 1.1 devices.


Audio & Microphone Output:

3 Monitor KVM also supports separate audio and microphone output.
Plug and play without any software needed.

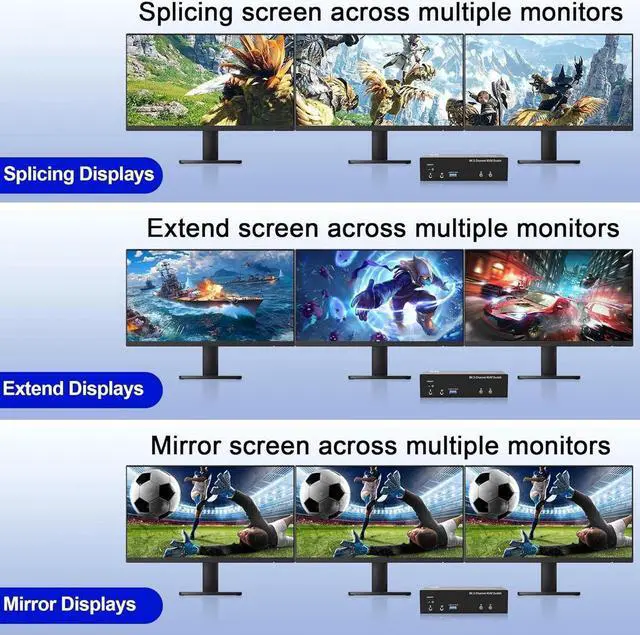

You only need one set of keyboard and mouse to control all the monitors, and it supports splicing, extend and mirror displays mode.


Splicing Mode: Computer host outputs splice screens on 3 monitors.
Extended Mode: PC host in output 3 different images on 3 monitors.
Copy Mode: Computer host outputs 3 identical images on 3 monitors.
(Note: Please make sure your computer supports multi-display and each connected computer requires 3 DP ports)
