Triple Monitor 2 Displayport + HDMI KVM Switch 8K@60Hz 4K@144Hz, [HDMI + 2 Displayport] KVM Switch for 2 Computers Share 3 Monitors and 4 USB 3.0 Device, with Wired Remote and 5 Cables

3 Monitors HDMI + 2 Display Port KVM Switch -- 2 Computers Share 3 Monitors and 4 USB 3.0 Devices, ideal for users with multiple monitors


Advantages:



2 computers share one set of keyboard mouse and 3 monitors.
KVM triple monitors support extended and mirror display.
Support wired or wireless keyboard and mouse.
Cross support most major OS including Windows, Linux, Mac OS.
USB KVM switch with 4 USB 3.0 ports for keyboard, mouse, printer, etc.
Switching modes: Button switch and wired remote ( 1.5 m), switch between 2 computers just need 2-4 seconds, fast and convenient.
Support ultra-wide monitors.

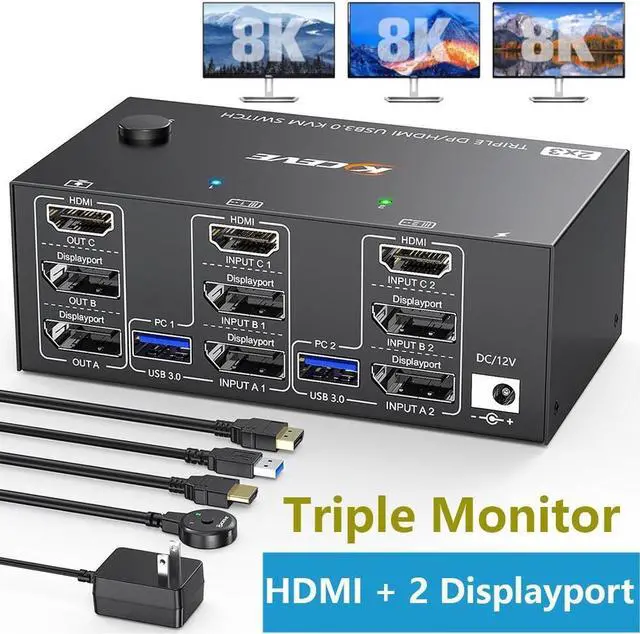

1*HDMI+2* Displayport KVM Switch: HDMI support resolution up to 8K@60Hz/4K@60Hz;
Display Port: support resolution up to 8K@30Hz/4K@144Hz.

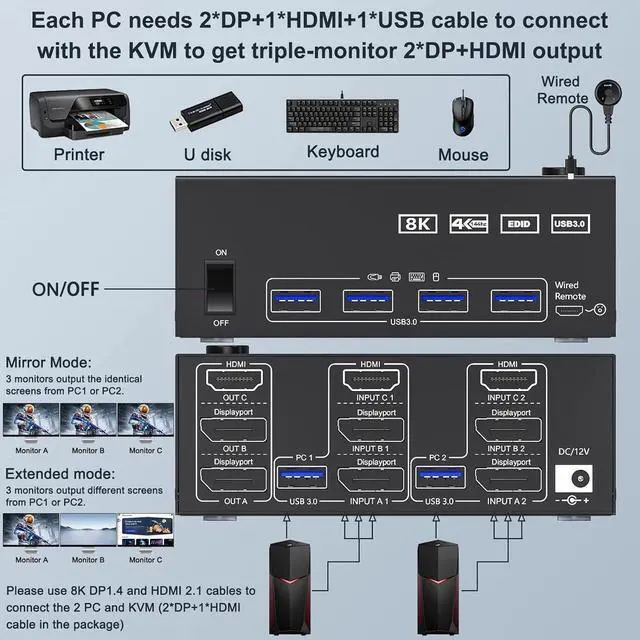

How to connect the KVM Switch?
Installation Guide:
Each computer must be connected to KVM with 1*HDMI+2*DP cables+1*USB cable.



Connection steps:

Step
1. Connect 2*DP cables+1*HDMI+1*USB-A cable between PC 1 and KVM (INPUT A1, INPUT B1, INPUT C1, USB 3.0 ).

Step
2. Connect 2*DP cables+1*HDMI+1*USB-A cable between PC 2 and KVM (INPUT A2, INPUT B2, INPUT C2, USB 3.0 ).

Step
3. Connect 2*DP+1*HDMI cables between the KVM (OUT A, OUT B, OUT C) and your 3 monitors.

Step
4. Connect the DC12V power adapter.

Step
5. Insert your USB devices (keyboard mouse and U disk) into the USB port on the KVM.
Triple Monitor KVM Switch Supports mirror mode and extended mode output

Mirror mode: 3 monitors output the same screen

Extended mode: 3 monitors output different screens



How to set the output mode

Windows OS: Press the shortcut key "WIN+P" and then select "Extension" or "mirror" below

Mac OS: Set [Mirror
Mode]: Select [A-p-p-l-e Icon] [System Preferences], click [Display] [Arrange], and then check [Mirror Display];

Set [Extended Mode]: When [Mirror Display] is unchecked, "Extended Mode" can be achieved.



NOTE:

Macbook Air and Macbook pro13 with M1 and M2 chips do not support expanded 3-screen output.
Before purchasing this 3 monitor KVM switch, please make sure that connecting your computer directly to 3 monitors can work normally, Otherwise, the KVM will not be available.
8K/4K HD Resolution
Support 8K@60Hz, 4K@144Hz, 1440P@144Hz and backward compatible with lower resolutions.

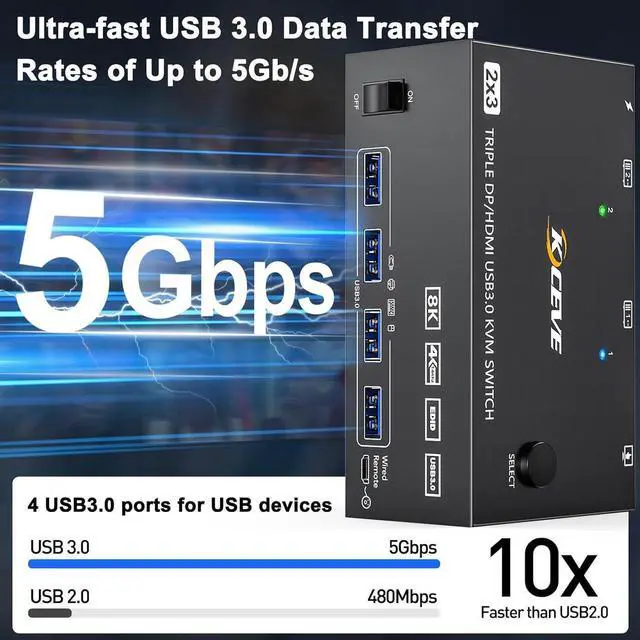

4-Port USB 3.0 with 5Gbps
Supports 5Gbps data transfer speed, can transfer files in Seconds, 10 times faster than USB 2.0.

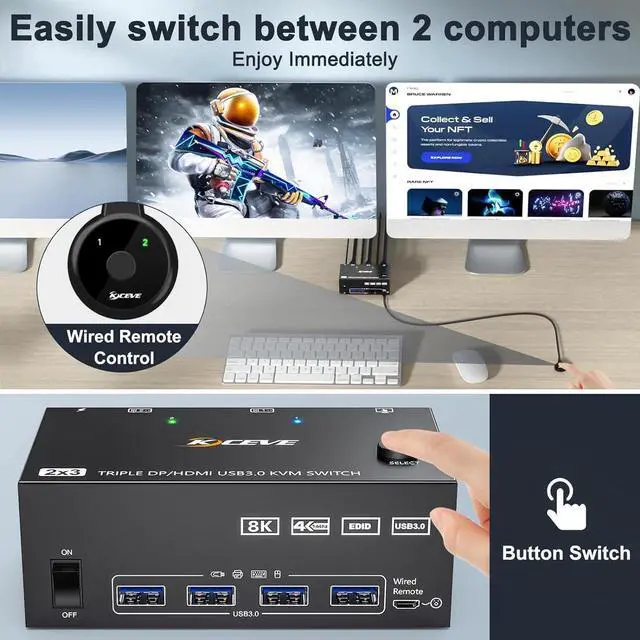

Button switch/Wired remote ( 1.5 m)
Supports wired remote switching for easy cable management, with digital 1/2 indicator light (green light)
Equipped with 12V power adapter
Solve the issue of unstable connection when using high-power USB devices such as RGB keyboard, hard disk, SSD, etc.
Attention
Input Tip: 2*DP+1*HDMI+1*USB (for PC 1, PC 2).
Desktop: The graphics card is required to have at least 2*DP+1*HD
Output Tip: 2*DP+1*HDMI+4*USB 3.0 (for 3 monitor and USB devices). It is recommended to use 2*DP monitor + 1 HDMI
Resolution HDMI: up to 8K@60Hz;
Displayport: up to 8K@30Hz,
About Power Supply: Using the equipped DC12V power adapter can effectively solve the problem of insufficient power suppl
Important Note If the cable version is lower or the cable is too long, the monitor will not work.
Package Content:
1x Triple Monitor KVM Switch,
2x DP 1.4 Cable,
1x HD-MI 2.1 Cable,
2x USB 3.0 Cable,
1x Power Adapter,
1x Wired Remote,
1x User's Manual.
