USB 3.0 HDMI Dual Monitor KVM Switch for 4 PCs, Supports EDID, 4K 60Hz KVM Switch 2 Monitors 4 Computers, with Audio Microphone Output & 3 USB 3.0 Ports, 4 PC 2 Monitor Keyboard Mouse Switcher

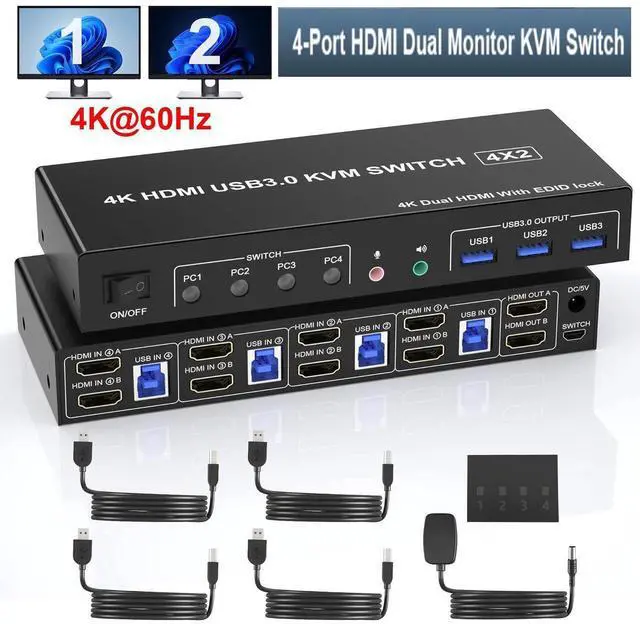

4 Port USB 3.0 Dual Monitor (HDMI+HDMI ) KVM Switch 4K@60Hz



With this 4 port USB 3.0 dual-monitor HDMI KVM Switch (HDMI+HDMI), you can easily control 4 signal sources at the same time, share the same keyboard and mouse, and share 2 monitors.
Note: Each input source device must be connected to two dual monitors.
Product Features


4 computers share one set of keyboard, mouse, 2 monitors, and more USB 3.0 peripherals.
This dual monitor HDMI KVM switch Supports maximum resolution up to 4K 60Hz

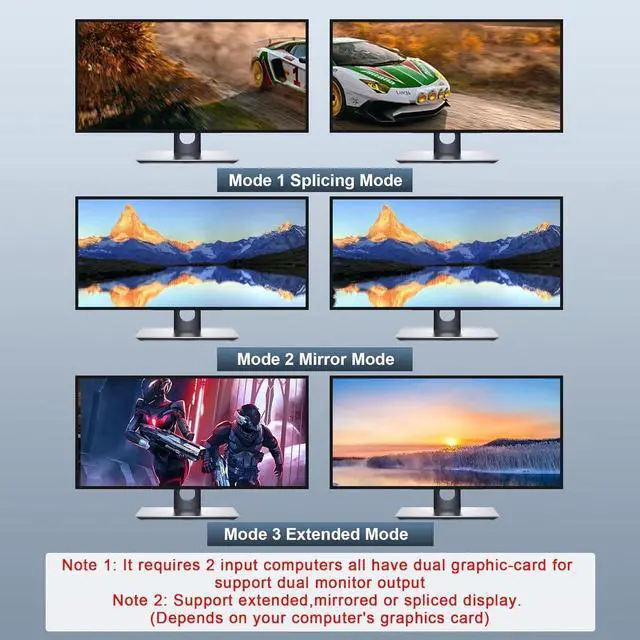

YUV 4:4: 4, HDCP 1.4, HDR 2.2, with EDID Emulator; Dual monitors output support up to 4K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card. );
Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
2 Switching modes: Button switch and wired remote.
The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
No complicated installation is required, and non-professionals can easily operate it.
Independent Audio Microphone output.

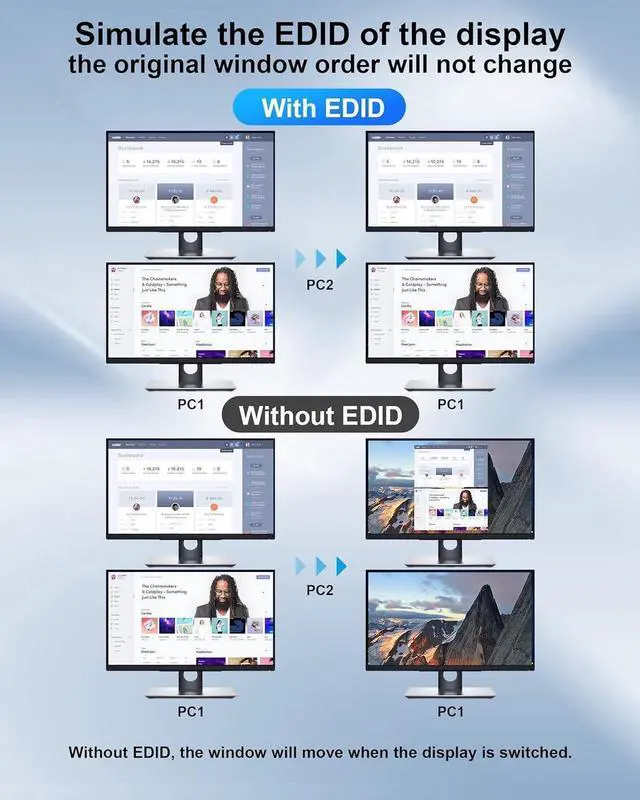

Support EDID Lock Screen



USB 3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between 4 computers, the original window order will not change.

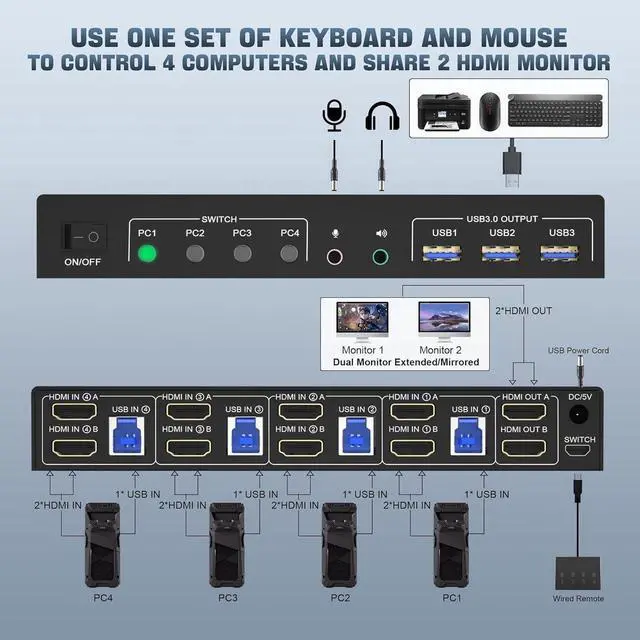

Installation steps:


1. Insert the DC/5V adapter into the KVM;


2. Plug the HDMI cable into the KVM and monitor; (Output)


3. Plug the HDMI cable and USB cable into the KVM and your computer/laptop (HDMI cables are not included) (Input)

HDM1 IN1 A + HDM1IN1 B + USB IN1=PC1

HDM1 IN2 A + HDM1IN2 B + USB IN2=PC2

HDM1 IN3 A + HDM1IN3 B + USB IN2=PC3

HDM1 IN4 A + HDM1IN4 B + USB IN2=PC4


4. Insert the mouse and keyboard into the KVM switch


5. If needed, you can connect a microphone and audio port
Note:



1. Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each computer has 2 HDMI cables connected to the KVM.


2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.


3. Please check the HDMI IN A1 & A2 & A3 & A4, HDMI IN B1 & B2 & B3 & B4 and USB IN1 & IN2 & IN3 & IN4 is corresponding, HDMI OUT A, HDMI OUT B is corresponding, NOT support mixed insertion.


4.
Note: HD-MI cables are not included
USB 3.0 Dual Monitor KVM Support 4K@60HZ



Supports high resolution up to 3840*2160@60Hz and downwards.
Note: Only when both your computer Graphics card and monitor support 4K@60Hz you can get the 4K@60Hz effect, so if you want the maximum resolution you have to check your devices first.
4 PCS Share 3 USB 3.0 Devices



This KVM switch 2 monitors 4 computers with 3 USB 3.0 Ports for keyboard, mouse, printers, USB headsets, or webcams.


Supports Separate Audio and Microphone Output



This HDMI dual monitor KVM switch comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone.

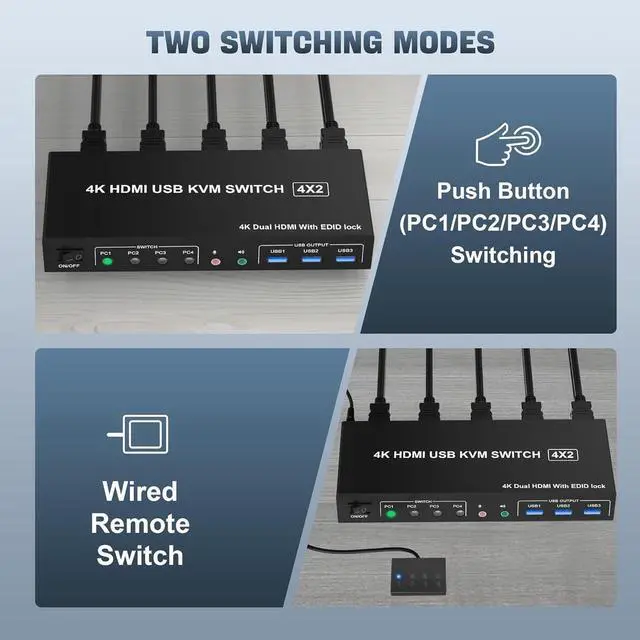

Dual Monitor KVM Support 2 Switching Modes



Quickly switch between the 2 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
Please note: This dual monitor KVM switch HDMI does not support hotkey switching.
