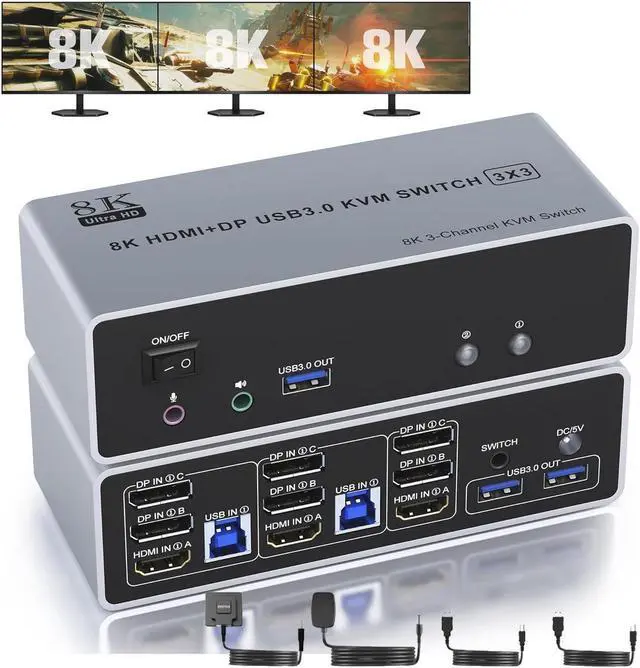

KVM Switch 3 Monitors 2 Computers 8K@60Hz 4K@144Hz, HDMI + 2 Displayport Triple Monitor KVM Switch for 2 PC Share 3 Monitor, Audio Mic Port and 3 USB 3.0 Devices Support Extended and Copy Mode

4K@120Hz HDMI and 2 Displayport KVM Switch for 2 Computers Share 3 Monitors and 3 USB 3.0 devices, Audio & Microphone



Does Everything You Need!



2 port USB 3.0 3 monitor KVM (HDMI+ DP+DP). Each input source device must be connected to 3 monitor.
This 2 computers 3 monitors switch help you control 2 PCs share 3 monitors by only one set of USB keyboard & mouse.

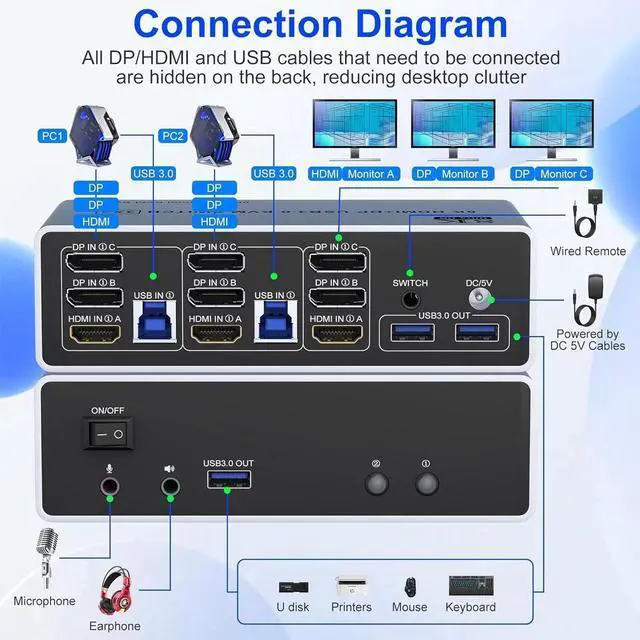

Connection Steps & Notes



1. Insert the adapter into the KVM;
2. Plug the DP/HDMI cable into the KVM and monitor; (Output)
3. 1). Connect PC1 Firstly (Input)
Use 1 HDMI cable to connect the "HDMI IN 1 A" input interface and PC1 HDMI A output interface,
Use 1 DP cable to connect the "DP IN1 B" input interface and PC1 DP B output interface.
Use 1 DP cable to connect the "DP IN1 C" input interface and PC1 DP C output interface.
Use 1 "USB-a to USB-b" USB 3.0 cable to connect the "USB IN 1" input interface and PC1 USB 3.0 interface.
2)Then, Connect PC2 according to the connection steps of PC1.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:



1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(HDMI+2 DP+USB cable) connect to the KVM.
2. If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.
3.
Note: DP/HDMI cables are not included

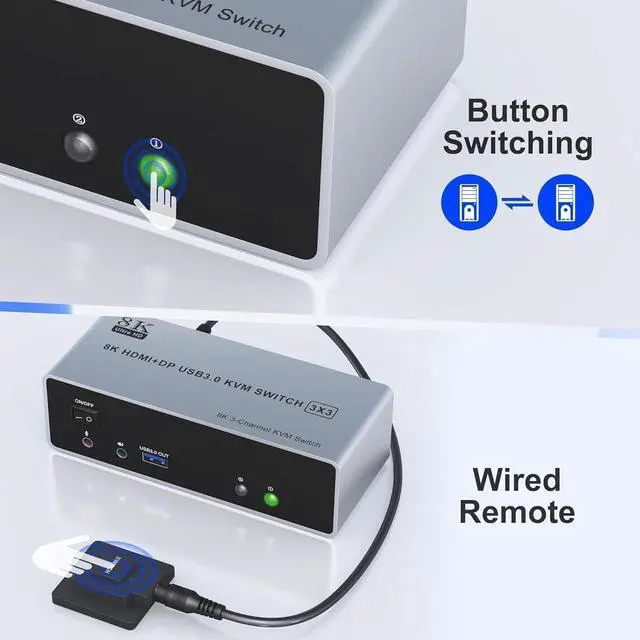

Supports key switching

You can easily and quickly switch between computers with the push of a button on the control panel.


Support wired remote control

A push-button controlled switch extension cable is included for easy switching without having to get up when using it.


Supports separate audio and microphone output

Display port KVM comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone.


LED Indicator

When switching to which PC, the LED will tell you whether PC1 or PC2 is active.

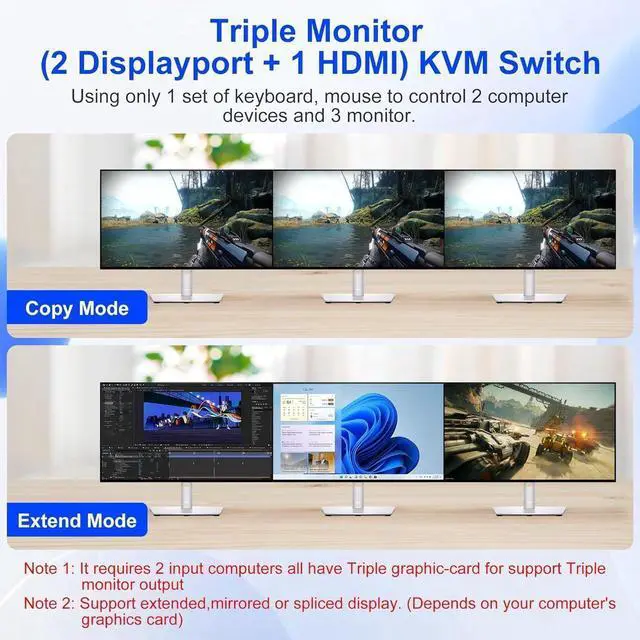

2 Display Modes



Extended Display
Mirrored Display


1)Extended mode can output 3 different screens and mirror mode can output 3 identical screens.
Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2) The requirement for this KVM to achieve a 3-screen display is that each PC you connect to has the capability to support a 3 screen display. This has nothing to do with KVM.
Supports Resolutions Up to 8K@60Hz, 4K@120Hz

This kvm switch 3 monitor supporting high resolution max up to 8K@60Hz, and also supports 4K@60Hz or other lower resolution (Downward Compatible).


Note:

Only when both your computer Graphics card, monitor and DP/HDMI cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

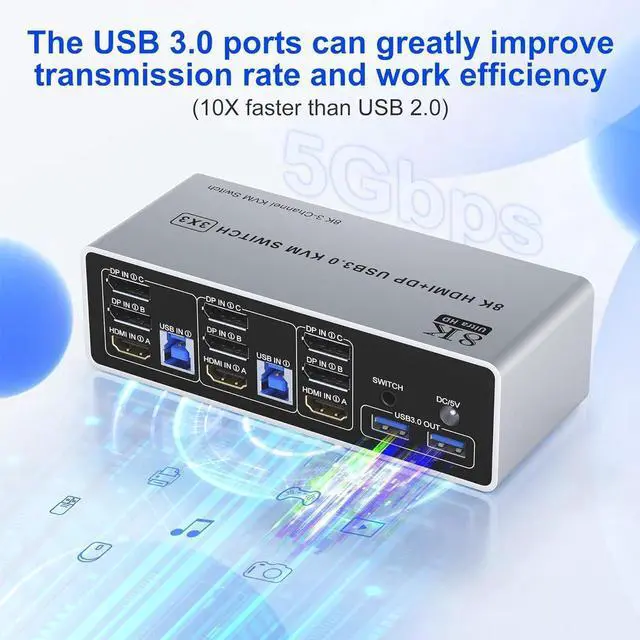

3 USB 3.0 Ports

USB 3.0 is compatible with USB 3.0, and the data transmission speed can reach 5Gbps, while the data transmission speed of USB 2.0 is only 480Mbps.
