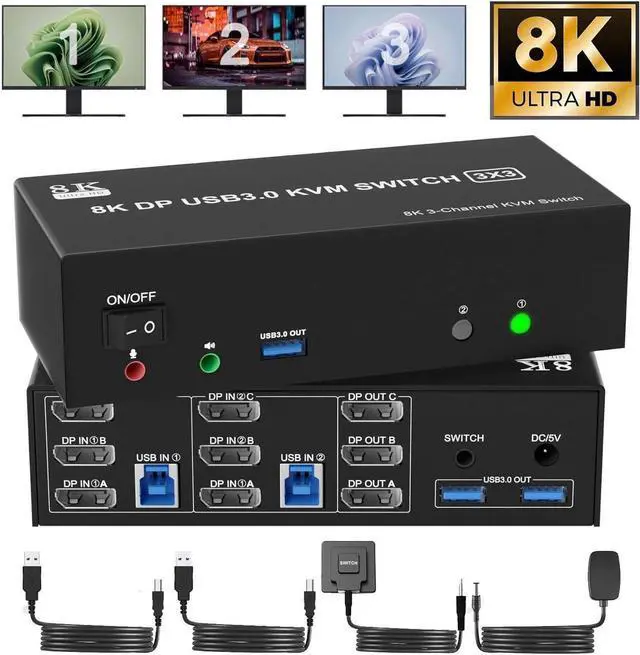

8K@60Hz KVM Switch 3 Monitors 2 Computers 4K@144Hz, DP 1.4 8K Displayport Triple Monitor KVM Switch for 2 Computer Share 3 Monitor, Audio Mic Port and 3 USB3.0 Devices, Wired Remote, 5V Adapter

8K@60Hz DisplayPort KVM Switch 3 Monitors 2 Computers Sharing 3 Monitor and 3 USB 3.0 Ports, Audio & Microphone


Features:

1. 8K Triple Monitor KVM Switch allows 2 computers/laptops to share one set of keyboard, mouse, and 3 monitors (3 DisplayPort)


2. Support DP 1.4 standards and downward compatibility. 3 monitors output support up to 8K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card. );

3. 2
Switching modes: Button switch and wired remote.

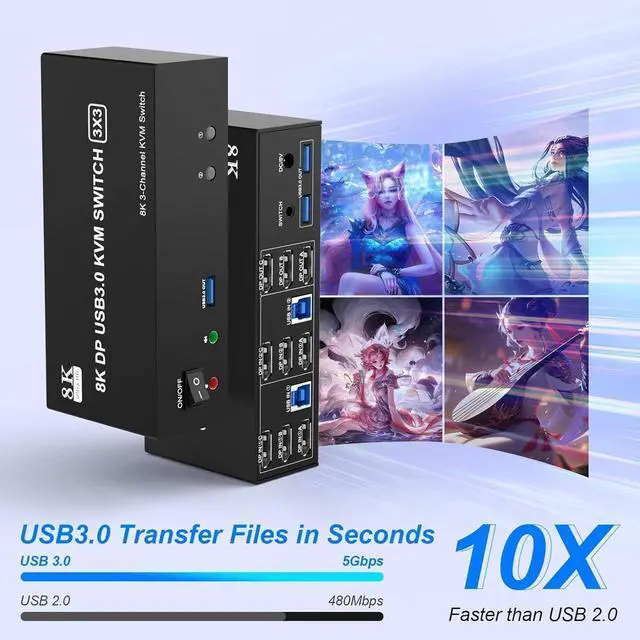

4. KVM switch equipped with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output


5. Equipped with a 5V power supply, ensuring stable operation even when high-power devices are connected.


6. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS


7. The ports that need to plug in DisplayPort/USB cables are all hidden behind the triple monitor KVM switch, so the desktop doesn't get cluttered, you can enjoy the clean workspace.

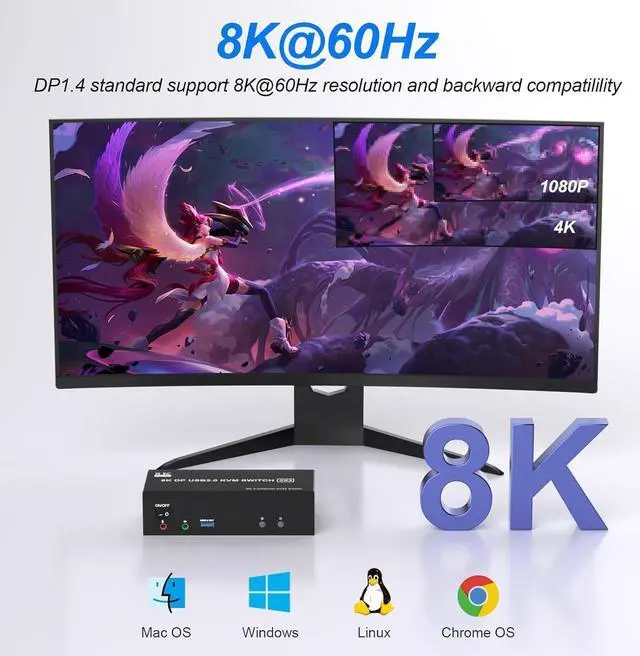

Ultra HD 8K@60Hz Triple Monitor KVM Switch


Confirms to DP 1.4 protocol, supports a maximum resolution of 8K@60Hz 4K@144Hz, and is compatible downwards.
Only when both your computer Graphics card, monitor and cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

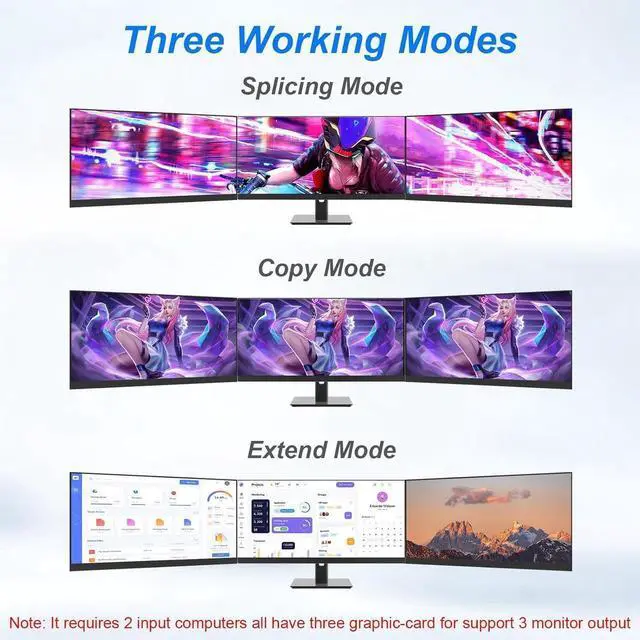

3 Display Modes


Extended Display

Mirrored Display

Spliced Display



1)Extended mode can output three different screens and mirror mode can output three identical screens.
Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.

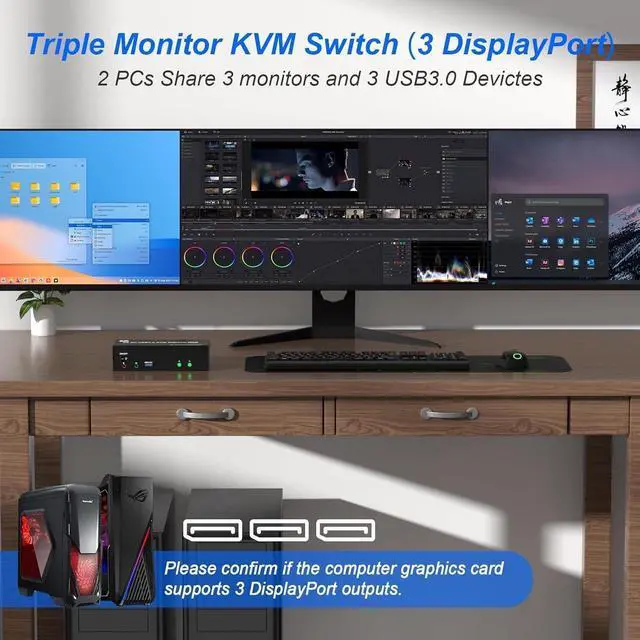

2) The requirement for this KVM to achieve a triple-screen display is that each PC you connect to has the capability to support a triple-screen display. This has nothing to do with KVM.

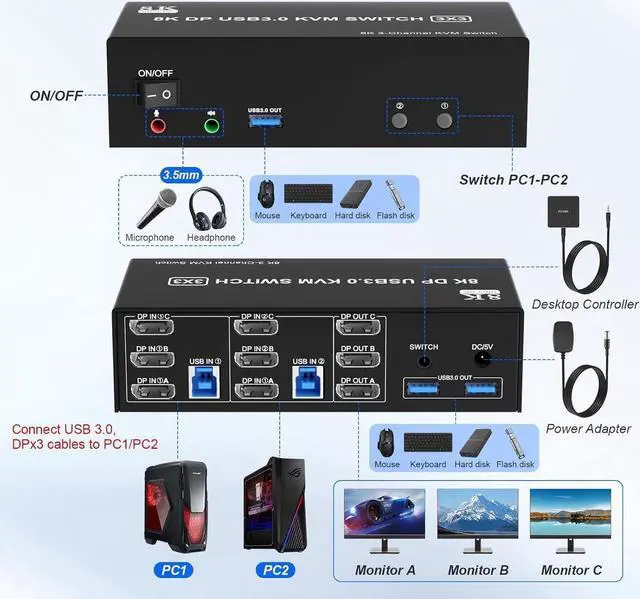

installation steps:



1. Insert the DC/5V adapter into the KVM;


2. Plug the 3*DisplayPort cable into the KVM switch and monitor; (Output)


3. Plug the DisplayPort cable and USB cable into the KVM switch and your computer/laptop (DP cables are not included) (Input)

DP IN 1A +DP IN 1B + DP IN 1C + USB IN 1=PC1

DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2=PC2

Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported.


4. Insert the mouse and keyboard into the KVM switch


5. If needed, you can connect a microphone and audio port

Note:


1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(3 DP+USB cable) connect to the KVM.


2. If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.


3.
Note: DP cables are not included

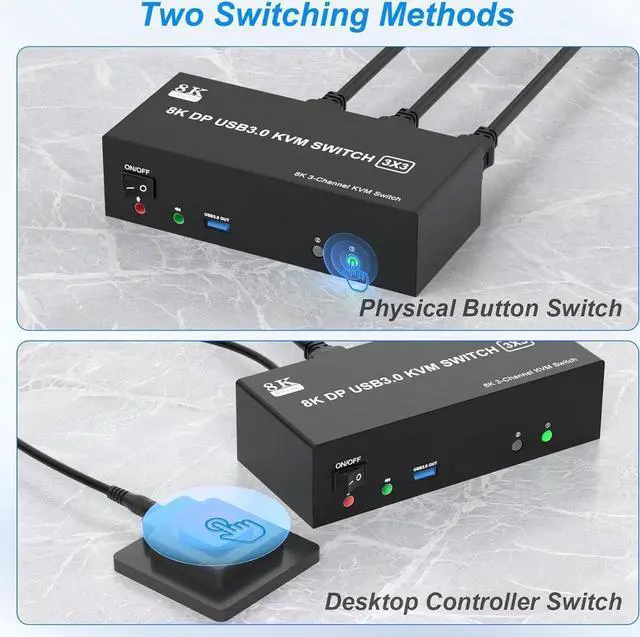

Wired Remote Control
Supports wired remote switching for easy cable management, you can switch directly on the desktop, convenient for your life and work.
Switch by Panel button
Push-button design allows for one-touch switching using a button on the KVM Switch box, eliminating the need to plug and unplug cables frequently, saving space and time.
LED Indicator
When switching to which PC, the LED will tell you whether PC1 or PC2 is active.
Audio and microphone output
3 monitors 2 computers KVM comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone.
What You Get:


1x 8K Triple Monitor KVM Switch,
2x USB 3.0 Cables,
1x Power Adapter,
1x Wired Button Switch,
1x User's manual
