KVM Switch 3 Monitors 3 Computers 8K@60Hz 4K@144Hz, HDMI + 2 Displayport KVM Switch Triple Monitor for 3 Computer Share 3 Monitors and 4 USB3.0 Devices, with Wired Remote and 12V power Adapter

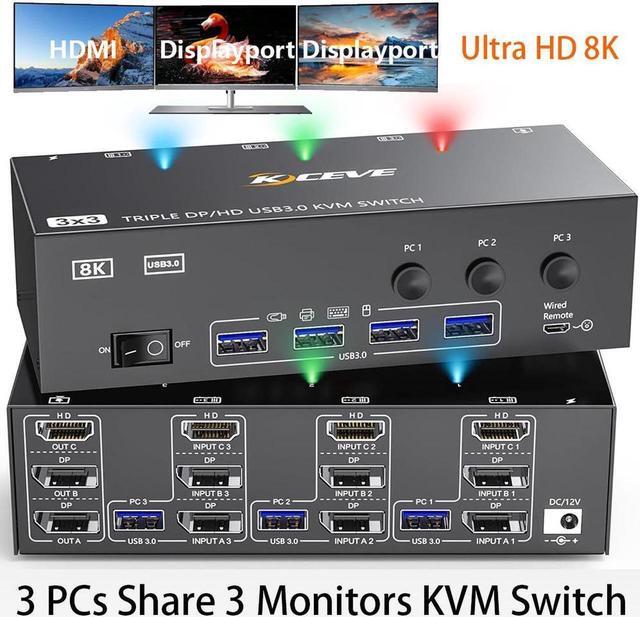

3 Monitor USB 3.0 HDMI+2 Displayport KVM Switch



3 Computers Share 3 Monitors and 4 USB 3.0 Devices



This 2 Displayport+HDMI triple monitor KVM switch is perfect for 3 computers or laptops to share 3 monitors and 4 USB 3.0 devices (keyboard, mouse, printer, scanner and other USB devices.


Ultra HD 8K@60HZ/4K@144Hz Visual Experience

This 3 in 3 out KVM switch output max resolution up to 8K@60Hz/4K@144Hz, each details can be displayed without any latency.
Displayport 1.4 support max resolution up to 8K@30Hz/4K@144Hz and backward compatible.
HDMI 2.1 supports max 8K@60Hz/4K@60Hz and down compatible with lower resolution.
Note: HDMI part does not support 4k@144Hz or 4K@120Hz


Important Note: The final resolution is subject to your graphics card, cables, monitors and adapters.

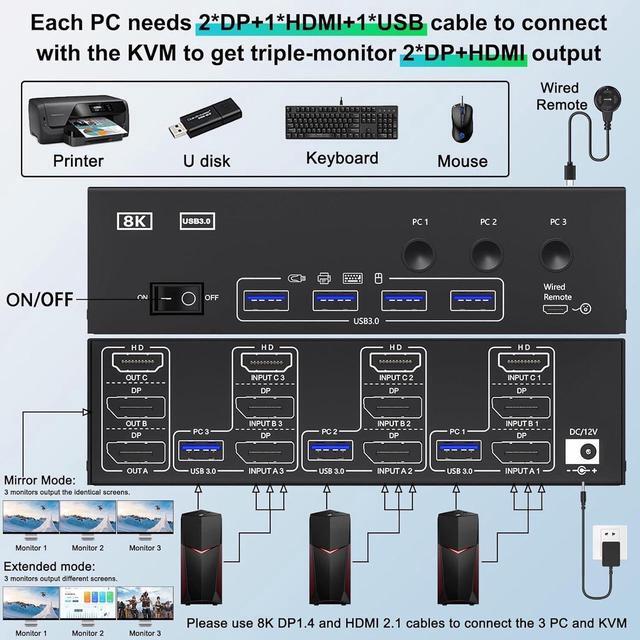

or input, each computers needs 2 DP + 1 HDMI connection, for output needs 2 DP monitors + 1 HDMI monitor
To make 3 monitors working, each computer will need 1 HDMI cable + 2 DP cables + 1 USB cable connect the KVM switch. Please buy good HDMI and DP cable yourself, if HDMI cable and DP cable is not good enough, the screen will flicker or unstable.



Step 1: Connect 1 HDMI cable + 2 DP cables + 1 USB cable to PC 1 and KVM switch (INPUT A1, INPUT B1, INPUT C1, USB 3.0 ).
Step 2. Connect 1 HDMI cable + 2 DP cables + 1 USB cable to PC 2 and KVM switch (INPUT A2, INPUT B2, INPUT C2, USB 3.0 ).
Step 3. Connect 1 HDMI cable + 2 DP cables + 1 USB cable to PC 3 and KVM switch (INPUT A2, INPUT B2, INPUT C2, USB 3.0 ).
Step 4. Connect 1 HDMI cable and 2 DP cables to the KVM switch (OUT A, OUT B, OUT C) and three monitors.
Step 5: Connect your USB device (keyboard and mouse) to the USB 3.0 port on the KVM switch. You can connect up to 4 USB 3.0 devices at the same time. Compatible with USB 2.0 / 1.1 devices.
Step 6. Connect the wired remote control


Note: Please connect the 12V DC power adapter to provide sufficient power. Using a shorter 8K HDMI + DP cable can make the KVM switch more stable.

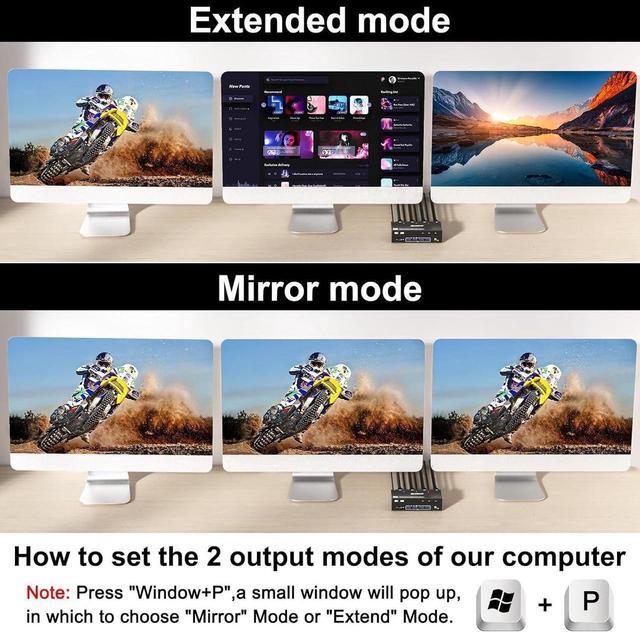

Support 2 display modes
In "COPY" mode, 2 output monitors will output same image from PC1 or PC2.
In "EXTEND" mode, the working window from main screen can be dragged to seond output monitor. You can have the mouse across between 2 monitors.
Support 8K HD resolution
7680x4320@60hz, 4K x 2K (3840x 2160@ 60Hz); 4K x 2K (2560× 1600@ 60Hz); 1920×1440 @ 144hz / 120hz / 60hz; 1920×1200 @ 144hz / 120hz / 60hz
To achieve 8K high resolution, please make sure that HD-MI cables, computers, and monitors you are using are all support 8K resolution

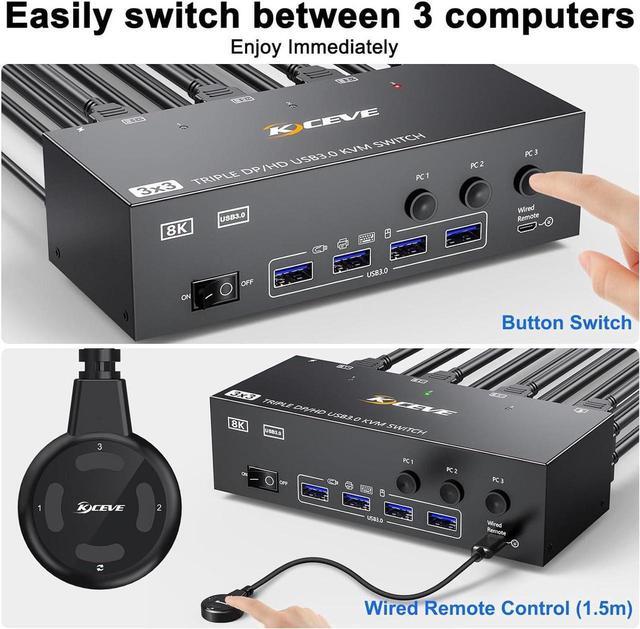

Support 2 switching ways
Physical button control.
Wired control, we upgraded the wired control, it's size is more bigger and touch feel more comfortable, this switching way is fast respond and flexible, you can hide the KVM switch under the table and keep desk tidy when using this wired control.
3 LED light indicator



Blue light shows PC1 working
Green light shows PC2 working
Red light shows PC3 working
DC12V port for power supply



External power supply is not required for normal USB device.
DC12 power adapter is included. When connected high power consumption USB device, you will need to connect power adapter to ensure it's connection stable.

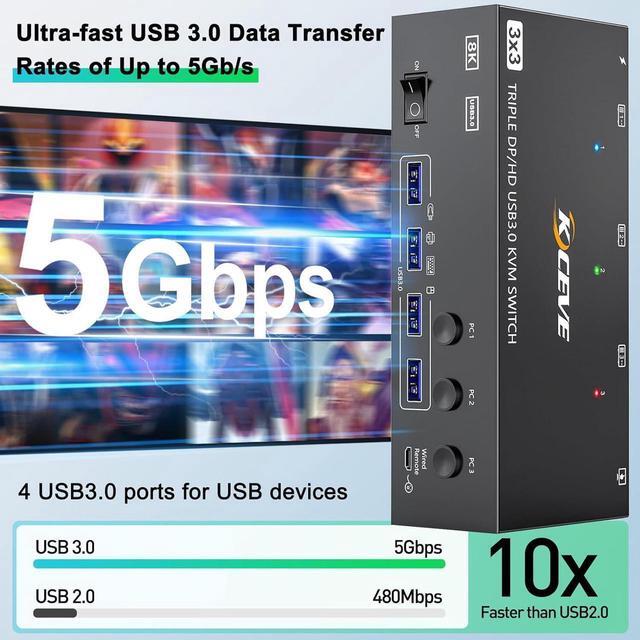

Four USB 3.0 ports



Upgraded USB 3.0 version ensure data transfer more faster and stable, it's a great solution to solve many USB device disconnected issue during use.
