Displayport KVM Switch 3 Monitors 4 Computer, DP1.4 Triple Monitor KVM Switch 4 in 3 Out with Audio Microphone Output and 3 USB 3.0 Port, KVM Triple Monitor Keyboard Mouse Switcher for 4PC

USB 3.0 Displayport KVM Switch (DP + DP + DP + DP) 4 ports Triple Monitor

Product Features:

4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 peripherals;

Support maximum resolution up to 4K 144Hz Triple monitors output

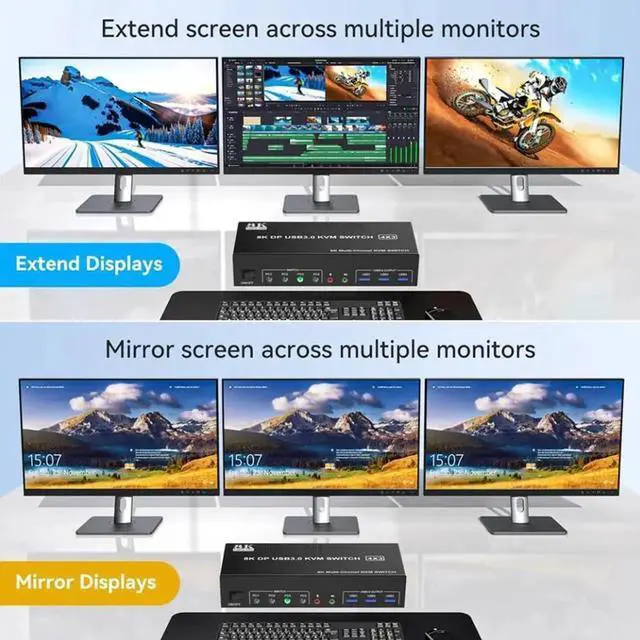

support up to 8K@60Hz/4K@144Hz, 2K@165Hz/1080P@240Hz for extended and mirrored display;

Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;

Advanced switching modes: push button and wired remote; No complicated installation is required, and non-professionals can easily operate it;

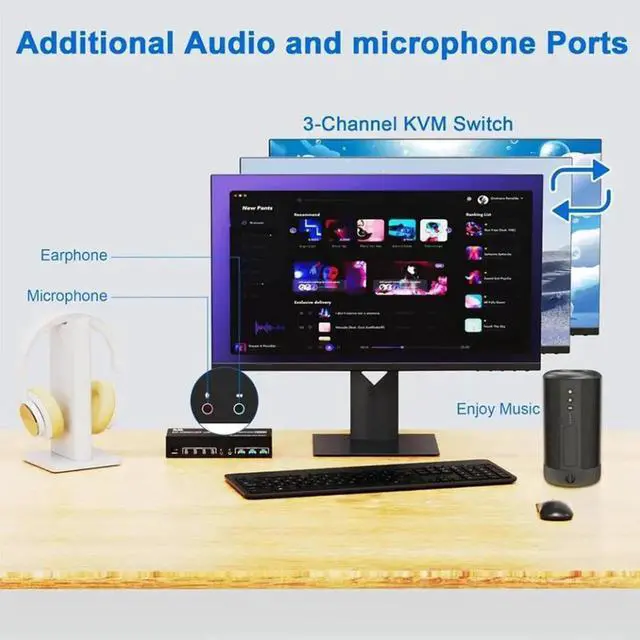

The ports that need to plug in DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered; Audio Microphone output.

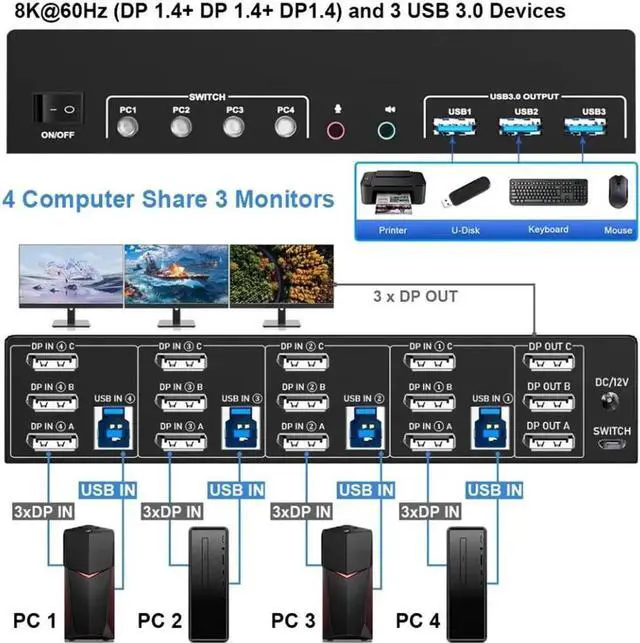

Connection steps:

1. Insert the DC/5V adapter into the KVM;

2. Plug the DPcable into the KVM and monitor; (Output)

3. Plug the DP cable and USB cable into the KVM and your computer/laptop (DP cables are not included) (Input)

DP IN1 A + DP IN1 B+DP IN1 C + USB IN1=PC1

DP IN2 A + DPIN2 B+DP IN2 C + USB IN2=PC2

DP IN3 A + DPIN3 B+DP IN3 C + USB IN2=PC3

DP IN4 A + DPIN4 B+DP IN4 C + USB IN2=PC4

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

Note: 1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(3 DP cables+1 USB cable) connect to the KVM. 2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal. 3. Before purchasing this DP triple monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally, Otherwise, the KVM will not be available. 4.

Note: DP cables are not included

8K 60Hz 4x3 Displayport USB 3.0 KVM Switch allows you to share one USB keyboard, USB mouse, and three DP monitor to control 4 computers, laptops, game consoles.

It is designed for multitask with four computers at your necessary, increasing productivity in the office or at home ; You can switch between 4 computers using a manual switch located on the top of the KVM unit.
