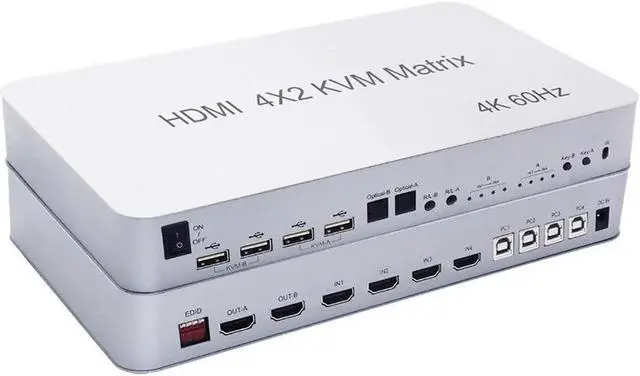

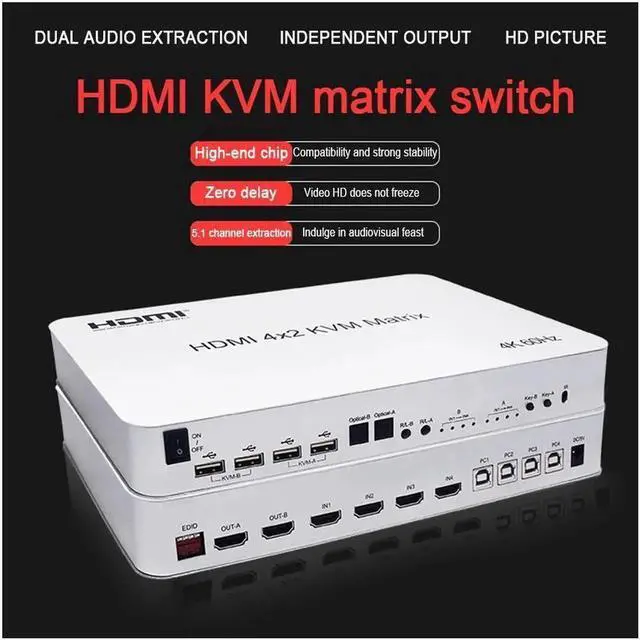

    4X2 HDMI KVM Switch Matrix 4Port Dual Monitor Extended Display 4K 60Hz Supports USB2.0 Devices Control Up to 4 Computers Limited time offer, ends 10

    • Support HDMI resolution up to 3840*2160/60Hz
    • Support 3D video format
    • Support 3 switching modes:IR remote control,button,keyboard hotkeys
    • Support 4K (input) resolution turn to 2K (output)(Down scaler)
    • Support 2 HDMI audio extraction, 3.5mm earphone jack and optical fiber interface output at same time
    • 4 HDMI inputs switch and split to 2 HDMI displays
    • Support LPCM/Dolby/DTS 5.1 channel
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

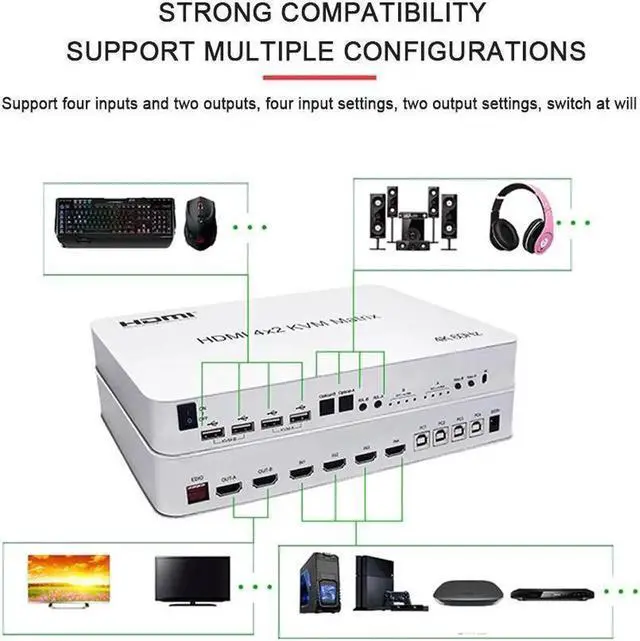

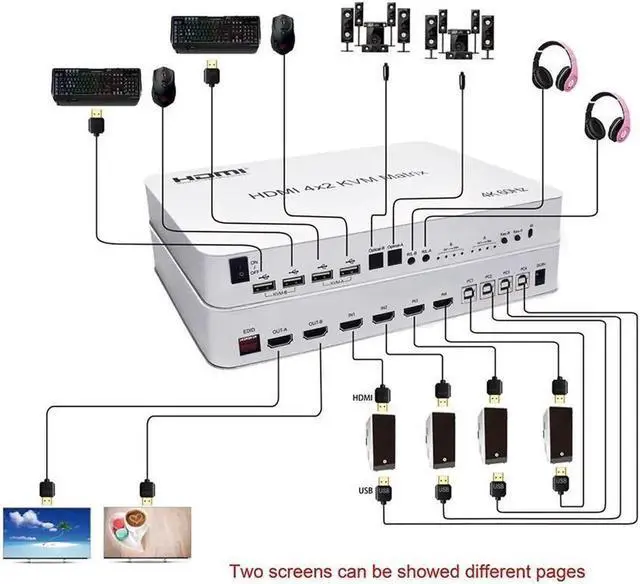

    This HDMI 4x2 KVM matrix can connect 4 HD signal sources to 2 HD display terminalswith optical fiber or stereo headphone output. Two sets of mouse and keyboard can control devices on 4 PC ports at will. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output ports can realize independent audio output by optical fiber or stereo headphone.


    Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.




    Specifications

    :


    HDMI resolution: up to 3840*2160/60Hz;

    Support video format: 8/10/12 bit deep color;

    Support audio format: LPCM/DTS/Dolby-AC3;

    Max bandwidth: 600MHz;

    Max baud rate: 3x6Gbps;

    Input cable distance: 4K/30Hz =15M AWG26 HDMI standard cable

    4K/60Hz =5M HDMI 2.0 standard cable;

    Output cable distance: 4K/30Hz =15M AWG26 HDMI standard cable

    4K/60Hz =5M HDMI 2.0 standard cable;

    Cable length: Standard USB 2.0 A male to B male cable= 2m;

    HDMI Input: 4

    HDMI Output: 2

    Max working current: 800mA

    Power adapter format:

    Input: AC (50HZ, 60HZ) 100V-240V;

    Output: DC5V/ 1.5A;

    Operating temperature range: (-15 to +45? );

    Operating humidity range: 5 to 90%RH (No Condensation);
