Multi-User Control of Remote Systems
Deploy up to 16 sets in the same network for multiple one-to-one extension. Just toggle each DIP switch in a receiver to the same position as a transmitter for pairing.
Plug and Play, Easy to Install
Works flawlessly with a universal Ethernet switch; no need to configure IGMP. Supports simple DIP setting, quite friendly to installers and end-users.
KVM Extension with Zero Latency
There is no delay at all on end-to-end signal extension! Install it in your control center and get everything under your control!
Wonderful Gaming Experience with 1080P@120hz
Transmits 4K@30hz HDMI and USB 2.0 signals over single Cat5e/6 cable up to 120m/390ft. Also supports 1080P@120Hz, ideal for extending movie or game sources.
Remote Control with up to 3x USB Peripherals
You can remotely control a computer, PlayStation or Xbox with up to 3x USB 2.0 peripherals, like a keyboard, mouse, microphone, camera, speakerphone, game controller, touch-screen panel, etc. Perfect for your house, school, office, or control center.
KVM Extension with Zero Latency
A pair of IP transmitter and receiver can be directly connected, extending 4K@30hz HDMI and USB signals over a single Cat5e/6/6a/7 cable up to 120m/390ft with zero latency. It transmits high-quality picture without any video loss and time delay.
Remote Control with up to 3x USB Peripherals
Install this 4K KVM extender in your house, school, office, or control center to transmit high-speed USB 2.0 signals up to 120m/390ft via a single Cat cable. You can remotely control a computer, PlayStation or Xbox with up to 3x USB 2.0 peripherals, like a keyboard, mouse, microphone, camera, speakerphone, game controller, touch-screen panel, etc.
Up to 16 sets of transmitter and receiver can work together via a standard Gigabit Ethernet switch without VLAN settings. The 4KIP100 KVM over IP extender is ideal for control centers, especially data control centers and video surveillance centers, where multiple operators can have concurrent access to their respective remote computer/server from their local console.
Note: This product doesnt support PoE at present. It is recommended to use a PoE adapter to connect it to your PoE switch if you need.

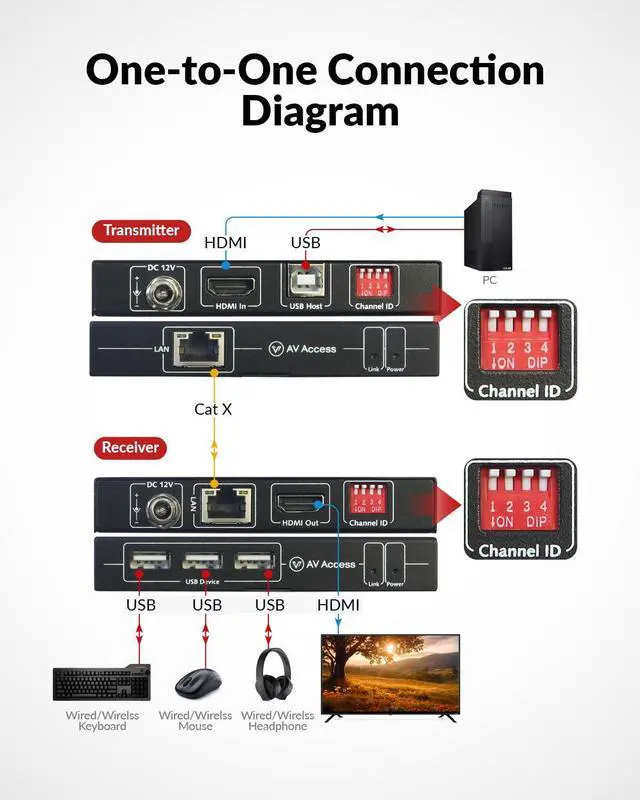

Plug & Play. No driver needed.Mounting ear for easy installationUsed for various application scenario, especially for engineering project usagePower adapter has a locking connector for a solid installation to avoid accidental disconnects To route the signal from a transmitter to a receiver, toggle each individual switches of the DIP Switch in receiver to the same positions as these in transmitter. If you want to link the receiver to a different transmitter, change the receiver switch settings in the same way as how the transmitters switch is positioned.
You need to repower the transmitter and receiver for the switch setting changes to take effect.The product only supports point-to-point configuration, which means one TX can only be paired with one RX via the DIP switch. To provide enough bandwidth for data transmission and stable performance, a Gigabit switch is required when using one or more sets in the same network.KVM switching is not supported when you use multiple sets with a Gigabit switch in the same network.This product is a transmitter (TX) and receiver (RX) kit. We dont sell them separately.
Work & Gaming at Home
The 4KIP100-KVM 4K HDMI KVM extender offers multi-site access to the equipment. Can you imagine enjoying your favourite video game in the courtyard? Your gaming console will be safe in the game room and the KVM extender will send HDMI and USB signals to where you want.
School Server Room
Servers/PCs are normally stored in the server center in schools so that the IT staff can easily manage them at one place. 4KIP100-KVM helps connect the server room and the multi-media classrooms. Even with the server miles away, teache
