AV Access HDMI USB Extender(HDBaseT) KVM, 100m/330ft 4K 60Hz 1080p 120Hz Over Cat5e/6/6a/7, 4 Ports USB2.0, No Signal Loss and Latency, RS232, POE, Independent EDID Management (4KEX100-KVM)

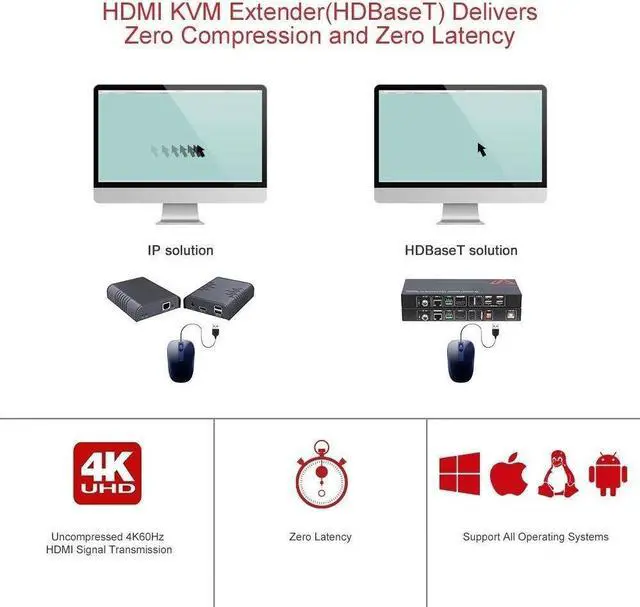

- 4K@60Hz and 1080P@120Hz over 100mWith the HDBaseT 2.0 uncompressed technology, the device can extend 4K@60Hz ultra HD (YUV4:2:0 8bit) HDMI signal over single Cat 5e/6/6a/7 cable up to 330ft/100m. With audio input/output ports both on transmitter and receiver, it also supports bi-directional 3.5mm stereo pass through.
- High-speed USB 2.0 up to 480MbpsIt provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps pass through over HDBaseT with zero delay.

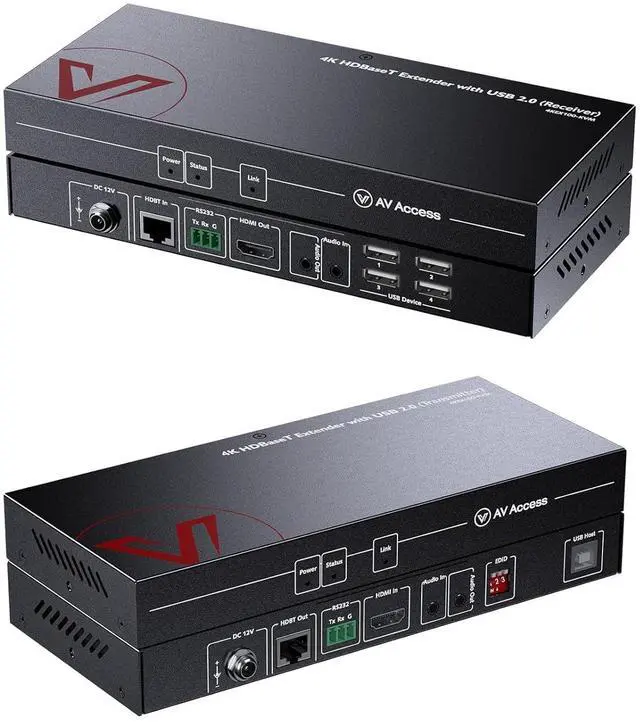

- Main FunctionsNo video loss, no time delay, with one way PoE(from transmitter to receiver), RS232 pass through over HDBaseT; DIP switch for EDID management; USB 2.0 pass through,1 x USB-Host connector built in transmitter and 4 x USB-Devices connector built in receiver.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ESD Protection: +/- 8KV(Air-gap discharge) +/- 4KV(contact discharge)Surge Protection: Voltage: +/- 1KV
HDMI 1.4 with 4k@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDBT 2.0 complianceUSB 2.0 pass through, USB-Host connector built in TX and 4 x USB-Device connector built in RXHigh-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up to 100m/330ft

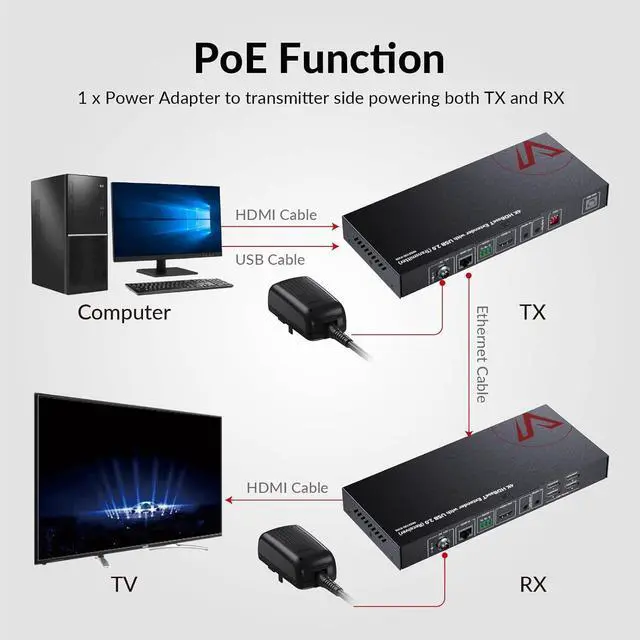

Via Cat 6/6a/7 cables, 4Kx2K@60Hz output up to 100m/330ft, 1080P@60Hz up to 100m/330ftVia Cat 5e cable, 4Kx2K@60Hz output up to 90m/300ft, 1080P@60Hz up to 100m/330ftPlug & Play. No driver needed.Mounting ear for easy installationUsed for various application scenario, especially for engineering project usage. One-way POE, transmitter (PSE) with PSU to power both transmitter and receiver (PD)

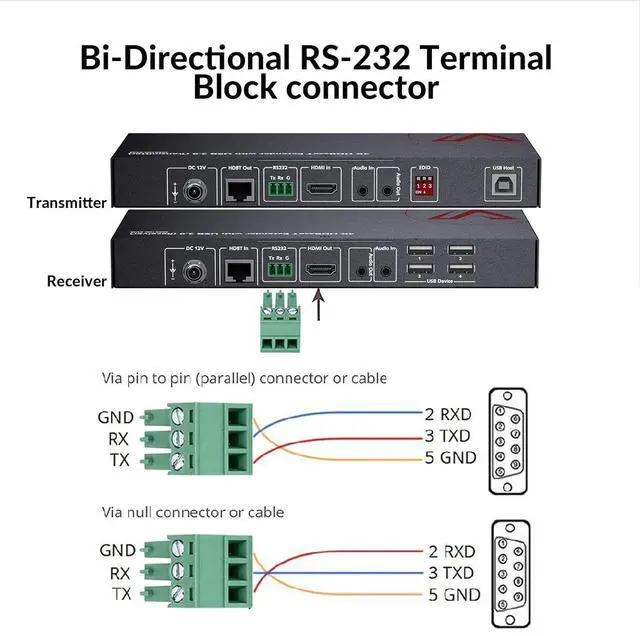

RS232 pass through supports serial communication
Bi-directional Analog Stereo passthrough
Independent DIP switch for EDID management
Idock Series No Latency Extenders Best Selling KVM Switch Renovate Your Hybrid Life KVM HDMI Extenders Dual Monitor KVM Switch Other Products from AV Access 4K HDMI KVM EXTENDER Easy Install One-way POE
