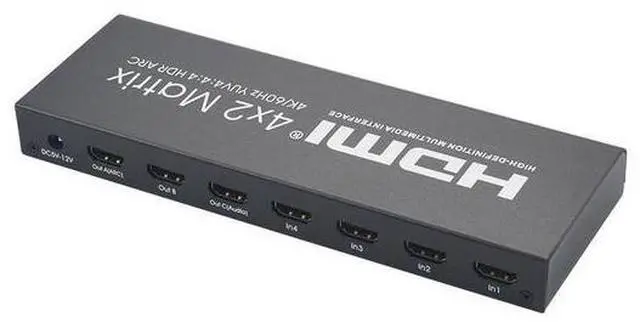

4K60Hz KVM HDMI2.0 Matrix Ultra-clear 4-in-2-out HDMI switcher distributor

Be the first to review this product...

This 4X2 HDMI matrix can switch the four input high-definition signal sources into two HDMI outputs. It can switch between the two output interfaces to display different images or the same image. It supports one HDMI pure audio output, and can also support optical fiber and stereo headphone output (the audio output can be switched between Out A and Out B). It can easily switch or distribute four high-definition signals freely on two displays or projectors that are compatible with high-definition signals. Our equipment provides solutions for noise, space and security issues in data centers, and is widely used in information distribution, meeting room presentations, exhibition halls, school and enterprise training environments and other application scenarios.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

HDMI version: HDMI
2.0B HDMI resolution 4K/60Hz Supported video formats 8/10/12-bit dark Supported audio formats TS-HD/Dolby-trueHD//DTS/Dolby-AC3/DSD Maximum bandwidth transfer 600z Maximum transfer rate 6Gbps Input cable length (4K/30Hz resolution)s1
0m (4K/60Hz resolution)s5m AWG24 HDMI 2.0 standard cable Output cable length (4K/30Hz resolution)s10m (4K/60Hz resolution)s5m AWG24 HDMI
2.0 standard cable, 4 HDMI input ports, 3 HDMI output ports, maximum operating current 700mA, power adapter specifications, operating
temperature range input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/1A(-15 to +55°
C) Operating humidity range: 5 to 90%RH (no condensation) Dimensions (length * width * height): 240×71×22 (mm)
Shell material: Metal
weight: 324g
