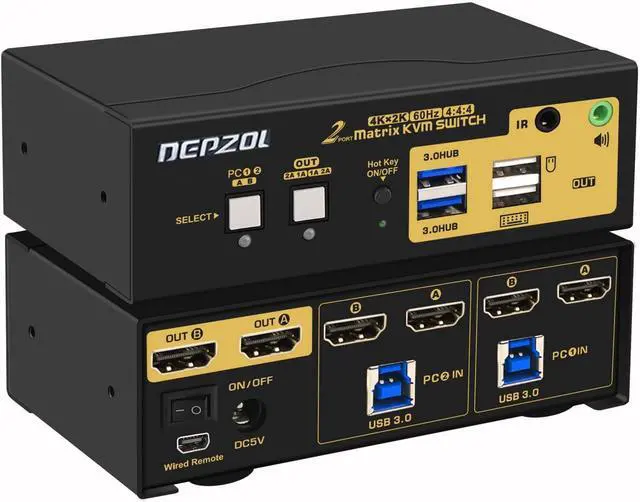

2x2 Matrix HDMI KVM Switch Dual Monitor USB 3.0 4K 60Hz, PC Monitor Keyboard Mouse Peripherals Sharing Box with Cables for 2 Computers or Laptops 922HUA-M

How Does It Help You?
1. Control 2 Computers or Laptops using 1 indenpendent set of keyboard and mouse, with dual extended or matrix display;
2. With 2 Extra high speed USB 3.0 HUB ports to share more USB 3.0 peripherals like webcam, headset, printer, scanner and USB drives;
3. Support Dual HDMI 2.0 outputs up to 4K 60Hz, either 2 single or extended displays on one selected computer, or 2 matrix display on 2 computers;
4. Cross support multiple platforms like Windows, Linux, Mac and most major operation systems;
5. Switch freely between computers and display modes via hotkeys, push button, wired remote and IR remote (battery CR2025 3V not included)
6. Also support auto scan with adjustable intervals between 8-999 seconds (default as inactive);
7. Support auto detection and memory in case of power down;
8. Support HDMI digital audio (need to set HDMI audio or monitor on HDMI out A audio as default sound device);
9. Comes with all cables and accesorries (except cables for montors which usually comes with monitor;
Most computers especially laptops do not have dual HDMI outputs. Please use reliable video adapters per the following guideline:
Computer Inputs:
1. Use video adapters instead of simple video conversion cable for USB C, DisplayPort, VGA or DVI;
2. VGA adapter needs to be individually powered. DisplayPort adapter needs to be active type;
3. USB 3.0 to HDMI adapter may work but not guaranteed;
4. Resolution output relies on adapters if used any.
Monitor Outputs:
1. HDMI monitors are preferred.
2. If in case your monitor is DP or VGA interfaced, please use powered HDMI to DP or HDMI to VGA adapter;
3. If you are using a video adapter on input side (from computer to the KVM switch), and then another video adapter for connecting montior on the same video chain, it will probably cause display issue.

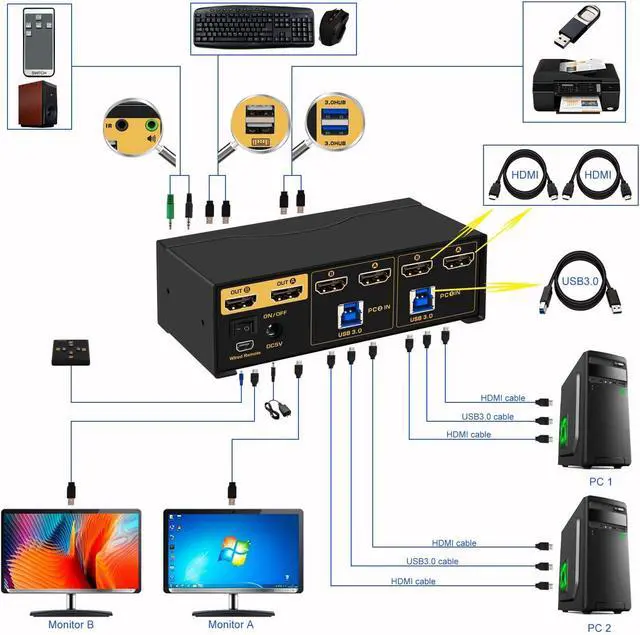

How to Get Dual Monitor Display:
1. Make sure to power off everything before installation, and connect the power adapter included;
2. Each computer needs 2 video connection to corresponding HDMI A and B port, HDMI IN A is for HDMI Out A, HDMI IN B is for HDMI Out B.
3. If you only need single display on each computer, you can just connect one video to IN A ports.
How to Get Keyboard and Mouse Work:
1. Connect a USB 3.0 port on each computer to corresponding USB B male port on the KVM switch using theincluded USB 3.0 cable;
2. The USB keyboard and mouse port are dedicated for hotkeys, they can be changed to standard USB 2.0 HUB ports by turning off the hotkeys;
3. Some special keyboard and mice with special features may not work well with the hotkeys, the workaround is to use the USB 3.0 HUB ports or turn off the hotkeys;
4. If you are using wireless keyboard and mouse that shares a unifying dongle, suggest to plug it into USB keyboard port (with hotkeys), or USB 3.0 port (no hotkeys).

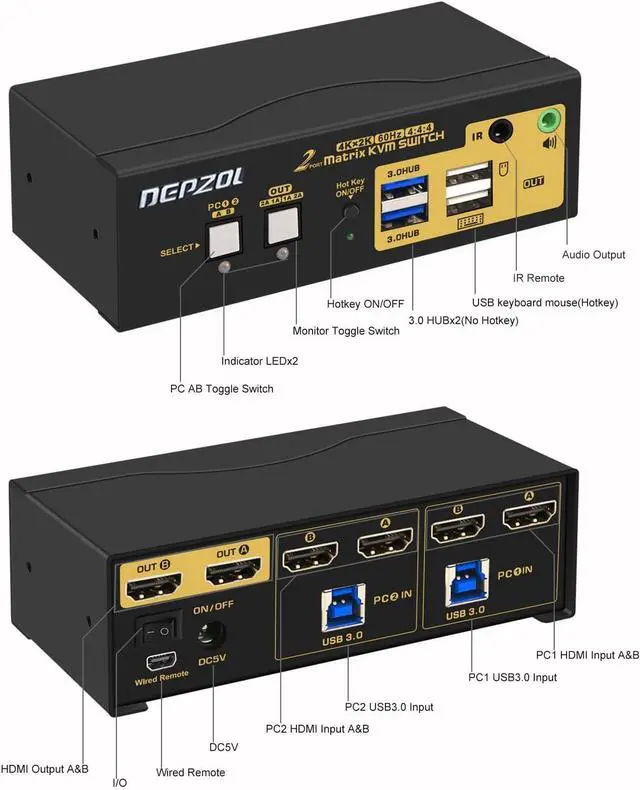

Mode 1: Dual Monitor Mode means extended, or mirrored or spliced display modes on one selected computer at the same time (Use push button on left)
Mode 2: Matrix Monitor Mode means matrix display on 2 different computers, one monitor on one compouter at the same time (use push button on right)
Cross supports Windows 10/7/2000/XP/VistaLinux and Mac and more.
Support 4 display modes depending on computer setting:
ExtendedMirroredSplicedMatrix
Default Hotkey Rght Ctrl can be Changed to Num Lock or Scroll Lock, Support Mac keyboard
1.Keyboard Hotkey Switch: Double click the right Ctrl then Port Number then Enter
2. Mouse Click Switch: Double click the middle roller of mouse
3. Push Button Switch: Simply press the white buttonon front panel
4. IR Remote: Press button on the IR remoter
5. Wired remote switch: optional when special keyboard and mouse do not work well on rear USB ports.

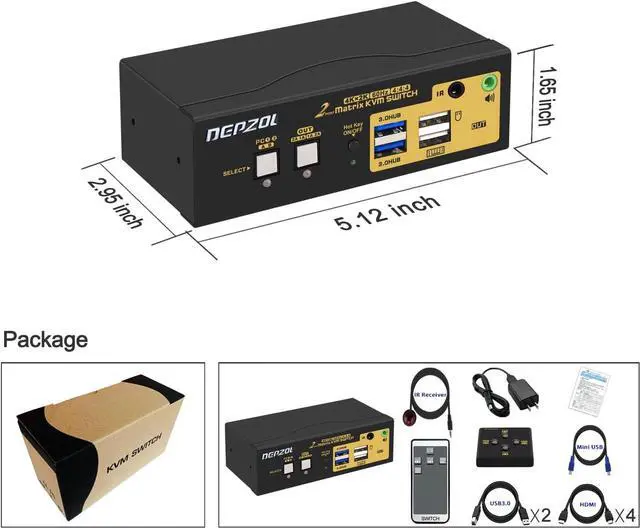

1* 2 port Matrix HDMIDual Monitor KVM Switch
1* Mini USB Cable+Wired
