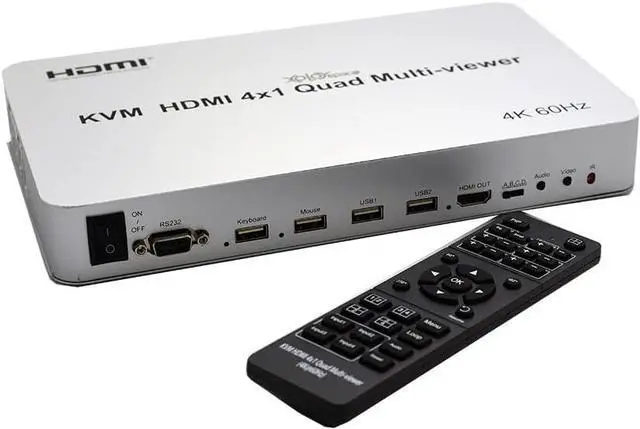

QV401K KVM 4K 60HZ HDMI 4x1 Quad Multi-Viewer Supports RS232 Control and PIP

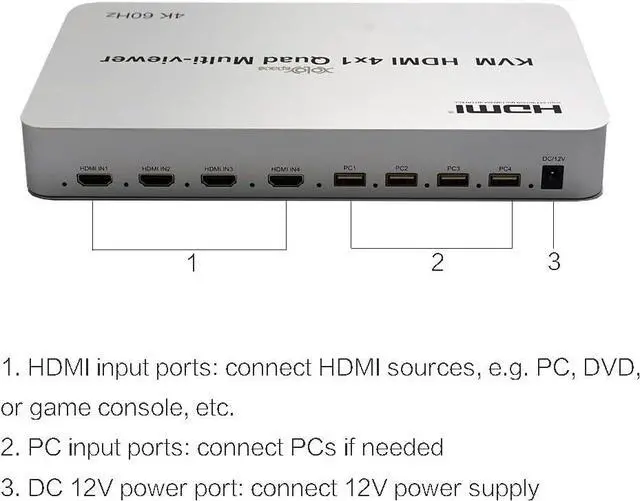

- With four 4K HDMI inputs and four USB 2.0 ports, switching four HDMI inputs with KVM signal to display on one HDMI output
- HDMI 1.4 version. Input supports 480, 720, 1080p 4k 30hz and output support up to 4k 60hz. Upscale to 4k 60hz output. Not support 4K 60HZ input. On devices such as PS 4, roku or some computer, it will be forced to 1080p as the input.

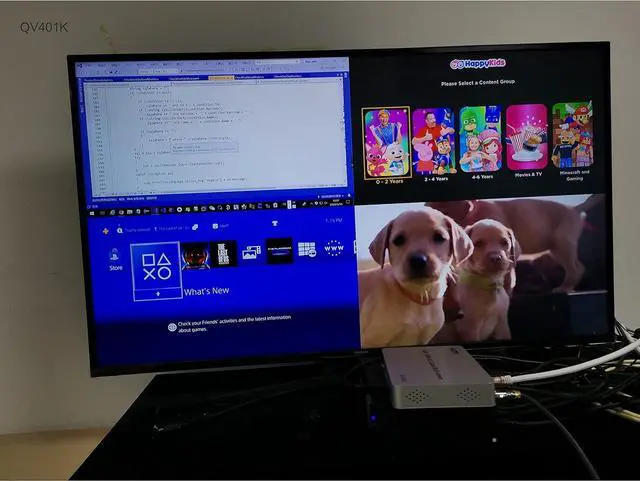

- Supports multiple multi-view modes, 4x1 quad viewer, 3x1 multi-viewer and 2x1 multi-viewer.

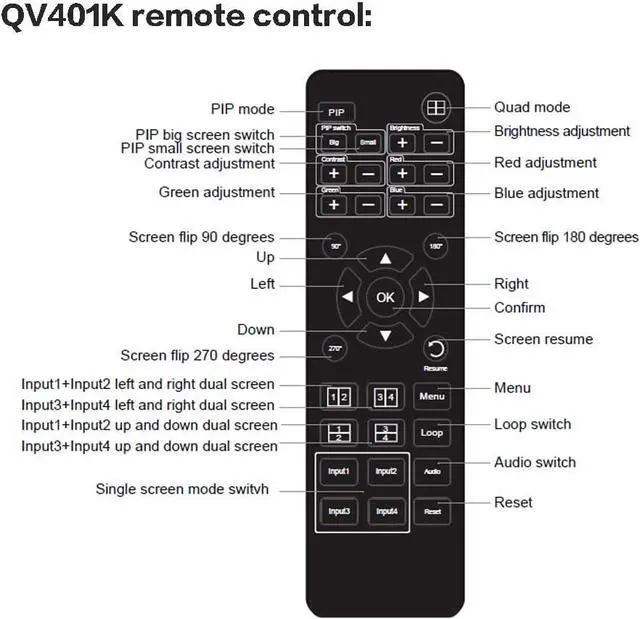

- Supports IR control and RS232 control
- Single input display supports 90 degrees, 180 degrees and 270 degree rotation; the multi-view display mode supports 180 degree rotation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
StandardHDMI 1.4v and HDCP 1.4Input portsHDMI female *4, USB * 4, RS232 *1Output portsHDMI female *1Input Resolution480p, 576p, 720p, 1080p 50hz/60hz, 4k 30hzOutput Resolution480p, 576p, 720p, 1080p 50hz/60hz, 4k 30hz, 4k 60hz, 2560x1600@60HzAudio formatPCM2.0Deep color24/30/36 bit Color formatRGB 4:4:4; YUV 4:4:4, YUV 4:2:2Max. Bandwidth600MhzMax. Baud rate18GbpsUSBSupports USB 2.0 Low speed(1.5Mb/s); Full speed(12Mb/s)EDID dip switchSupports resolution switching: A- 1080P; B-4K 60HZ; C- 4K 30HZ; D-2560x1600 60hzSuggest cable lengthSupport standard AWG26 cable, at 1080p input up to 10 meters , output up to 10 meters; at 4k 60hz up to 3 meters Max. 4k 30hz input and 4k 60hz output
Read text more clearly. Capable of doing data comparision.

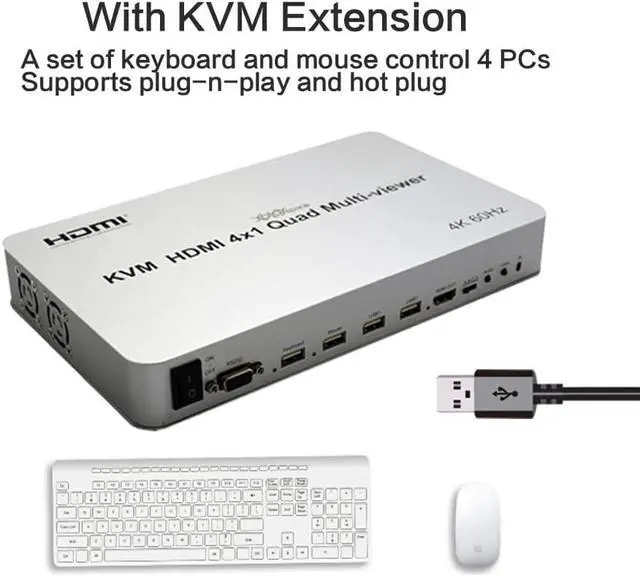

Supports 1 way mouse and keyboard to control 4 PCs

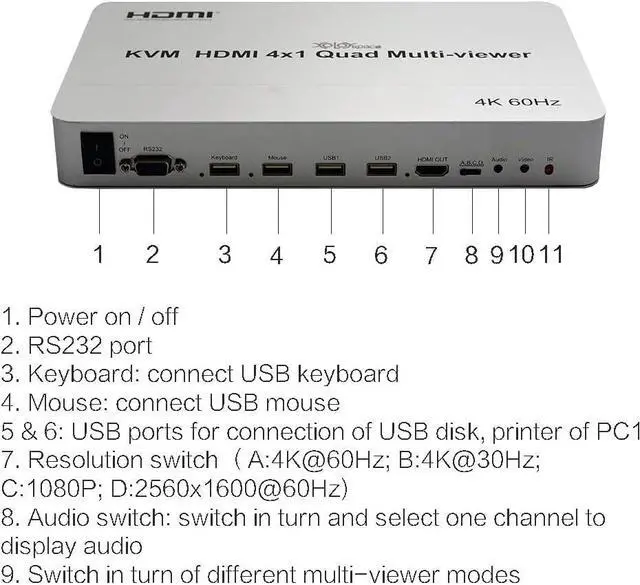

Support IR control and RS232 control. Support EDID dip switch.
HDMI Quad viewer supports 4K 60HZ display: read Text more clearly Features 4K UHD Clear text display KVM Control RS232 Control
Read text more clearly. Capable of doing data comparision.
Supports 1 way mouse and keyboard to control 4 PCs
Support IR control and RS232 control. Support EDID dip switch.
HDMI Quad viewer supports 4K 60HZ display: read Text more clearly Features 4K UHD Clear text display KVM Control RS232 Control
