HT005 4K 150M HDMI KVM Extender Over IP Transmit 4k 30hz HDMI Signal Plus KVM (Keyboard and Mouse) up to 492ft by CAT6 Cable
- XOLORspace HT005 150m 4K HDMI IP extender can transmit 4K 30hz HDMI high-definition video plus KVM (keyboard and mouse) by CAT5E / 6 cable up to 150 meters / 492ft
- HDMI video resolution up to 4k 30hz and audio format up to 7.1 ch
- It suppose point-to-point streaming and one-to-many distribution (by pass a Gigabit switch)
- Supports IR return signal, enable controlling the source on the far-end receivers side
- This technology is based on TCP/IP, and it is normal if there is latency between the transmitter and the receiver less than 100ms.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features :
-Support HDMI 1.4b;
-HDMI Version up to 3840x2160/30Hz;
-Color space: 8/10/12 bit deep color;
-Audio format: stereo audio LPCM 2.0, 7.1CH;
-Send HDMI 4K/30HZ signal plus KVM (keyboard and mouse) up to 492ft between each pair of one transmitter and one receiver;
-KVM function is optional, do not connect USB port if this function is not needed;
-Apply KVM function: connect USB cable as attached from PC to the Transmitter and plug keyboard & mouse to USB 1 & USB 2 on the receiver;
-IR return signal is optional, when it is used, plug the IR receiver cable"into IR-RX port on receiver, and IR transmitter cable into the IR-TX on transmitter;
-Supports One-to-many distribution bypass a Gigabit network switch, distributing one transmitter to more receivers (extra receivers can be ordered optional);
-This technology is based on TCP/IP, and it is normal if there is latency between the transmitter and the receiver less than 100ms;
-Pure hardware design, plug and play, no need to install additional software;
-The max working currency: TX 420mARX 480mA;
-Dimension(L-W-H): 124×85×24mm
Weight: TX: 204gRX:207g

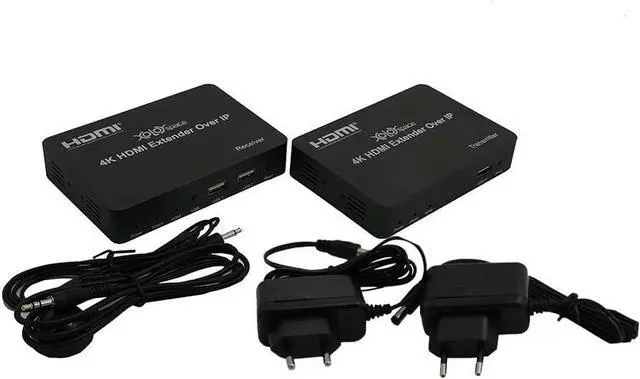

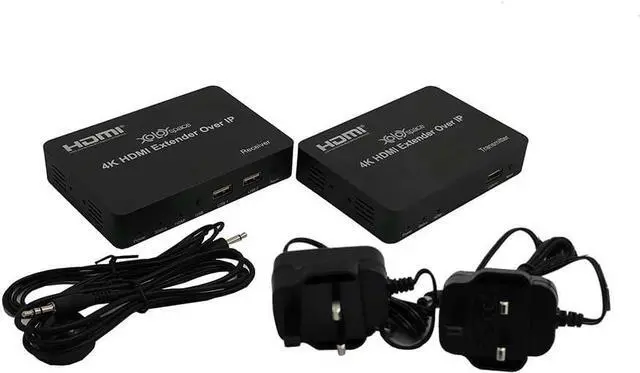

Package Contents :
HDMI Transmitter*1
HDMI Receiver*1
5V/1A Power adapters *1
IR cable for TX*1
IR cable for RX*1
USB cable male to male 1.5m*1
USER Manual*1
-Support HDMI 1.4b;
-HDMI Version up to 3840x2160/30Hz;
-Color space: 8/10/12 bit deep color;
-Audio format: stereo audio LPCM 2.0, 7.1CH;
-Send HDMI 4K/30HZ signal plus KVM (keyboard and mouse) up to 492ft between each pair of one transmitter and one receiver;
-KVM function is optional, do not connect USB port if this function is not needed;
-Apply KVM function: connect USB cable as attached from PC to the Transmitter and plug keyboard & mouse to USB 1 & USB 2 on the receiver;
-IR return signal is optional, when it is used, plug the IR receiver cable"into IR-RX port on receiver, and IR transmitter cable into the IR-TX on transmitter;
-Supports One-to-many distribution bypass a Gigabit network switch, distributing one transmitter to more receivers (extra receivers can be ordered optional);
-This technology is based on TCP/IP, and it is normal if there is latency between the transmitter and the receiver less than 100ms;
-Pure hardware design, plug and play, no need to install additional software;
-The max working currency: TX 420mARX 480mA;
-Dimension(L-W-H): 124×85×24mm
Weight: TX: 204gRX:207g
Package Contents :
HDMI Transmitter*1
HDMI Receiver*1
5V/1A Power adapters *1
IR cable for TX*1
IR cable for RX*1
USB cable male to male 1.5m*1
USER Manual*1
