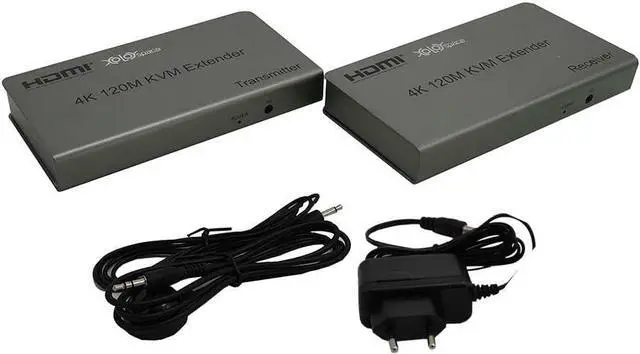

Main image of HT006 4k HDMI KVM Extender up to 393ft by CAT6 Cable with Loop Out and IR Return Signal

Alt view image 2 of 3 - HT006 4k HDMI KVM Extender up to 393ft by CAT6 Cable with Loop Out and IR Return Signal

Alt view image 3 of 3 - HT006 4k HDMI KVM Extender up to 393ft by CAT6 Cable with Loop Out and IR Return Signal

Shop All XOLORspace Products | Visit Guihetingshangmao Store

HT006 4k HDMI KVM Extender up to 393ft by CAT6 Cable with Loop Out and IR Return Signal

4k HDMI extension: uses single cat5e or cat6 (recommended) cables transmit UHD HDMI signal max. at 4k 30hz, and use CAT6e cable when transmit UHD 4k signal longer than 300ft
HDMI loop out: supports HDMI local display. While either local display or remote display is 1080p, both display will down to 1080p simultaneously.
KVM extension: KVM (Keyboard and mouse) transmission over CAT5e / CAT6 / CAT6e /CAT7 cable
Transparent HDMI transmission over CAT6 cable. No delay, no compression, no signal loss.
IR Return Signal: IR frequency 38 KHZ. Control the source on the far-end receivers side.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Features :
Support HDMI 1.4 / HDCP1.4;
Support local loop-out;
Support 120m long distance transmission;
Low power consumption, low temperature and high safety ;
Both the TX and RX support 3.5MM left and right audio output;
Support IR return signal (IR frequency 38 KHz);
Support USB mouse and keyboard extension;
Transmission distance by CAT6 cable between Rx and TX: 120 meters;
HDMI Input: 4k 30 Hz /1080p 50 & 60 Hz /720p/576p/576i/480p/480i;
HDMI Output: 4k 30 Hz /1080p 50 & 60 Hz /720p/576p/576i/480p/480i; Audio format supports analog LCPM 2.0.
Not support 3D

Max bandwidth: 340MHz;
Max baud rate: 3x3.4Gbps;
Input video signal: 0.5~1.5Volts p-p;
Output DDC signal: 5Volts p-p (TTL);
Input HDMI cable distance: less than 10m AWG26 HDMI standard cable;
Output HDMI cable distance: less than 10m AWG26 HDMI standard cable;
TX Max working current: 350mA;
RX Max working current: 200mA;
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A;
Dimension (L x W x H): 107x105x27.3 (mm) ;
TX Net Weight: 499g;
RX Net Weight: 494g.
