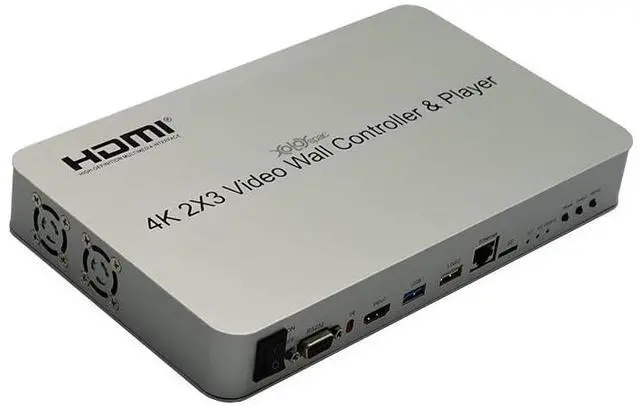

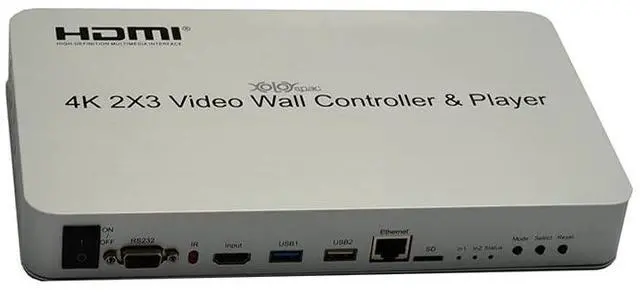

TW23 2x3 4K 60HZ HDMI Video wall controller TV wall processor (one HDMI input and 6 HDMI outputs) with USB media player
- XOLORspace TW23 video wall controller is with 1 HDMI input, 6 HDMI output and 1 HDMI loop out, supports one HDMI source splicing on 6 HDMI screens
- HDMI input resolution up to 3840x2160/60Hz and HDMI output resolution up to 1920x1080/60Hz
- Support 2x3, 1x4, 1x2 splicing mode and two devices cascading supports 3x3 mode
- With audio extractor: synchronized output audio to digital optical fiber and analog 3.5mm audio output
- Supports on panel control, remote control and RS232 control
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
HDMI input resolution up to 3840x2160/60Hz
HDMI output resolution up to 1920x1080/60Hz
With 1 HDMI input, 6 HDMI outputs and 1 HDMI output in loop, supports HDMI source splicing on 6 HDMI displays.
With USB media player
Supported audio format: DTS-HD/DTS/Dolby-AC3/PCM, etc.

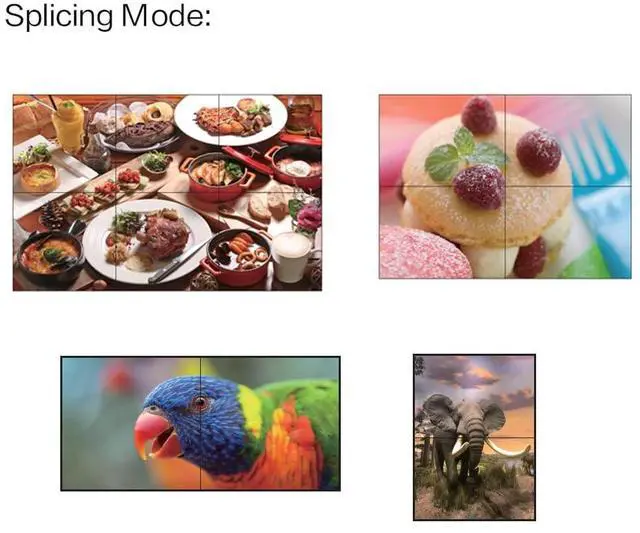

2x3, 1x4, 1x2 splicing mode support
Support for two-layer waterfall and 3x3 splicing mode
Suggest HDMI cable length: to 4K/30HZ in 8m AWG26 standard HDMI cable to 4K/60HZ within 3m, standard V2.0 cable
Maximum working current: 1.6 A
AC adapter specifications: AC input (50HZ, 60HZ) 100V-240V
Output 12VDC/2A
Dimensions (L x W x H): 263x159x38(mm)
Net weight: 1300 g
Support for multiple splicing modes
Support WIFI player, DLAN connection
The drive supports 2-way USB 2.0 input
With audio extraction, digital fiber optic and 3.5mm analog audio output
Pure material design, plug and play, no need for software
Box contents:
TW23*1

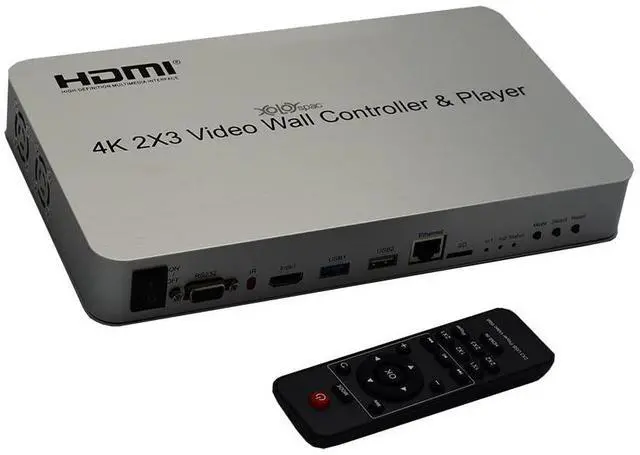

Remote Control * 1
Power supply 12 V * 1
Antenna * 1
HDMI input resolution up to 3840x2160/60Hz
HDMI output resolution up to 1920x1080/60Hz
With 1 HDMI input, 6 HDMI outputs and 1 HDMI output in loop, supports HDMI source splicing on 6 HDMI displays.
With USB media player
Supported audio format: DTS-HD/DTS/Dolby-AC3/PCM, etc.
2x3, 1x4, 1x2 splicing mode support
Support for two-layer waterfall and 3x3 splicing mode
Suggest HDMI cable length: to 4K/30HZ in 8m AWG26 standard HDMI cable to 4K/60HZ within 3m, standard V2.0 cable
Maximum working current: 1.6 A
AC adapter specifications: AC input (50HZ, 60HZ) 100V-240V
Output 12VDC/2A
Dimensions (L x W x H): 263x159x38(mm)
Net weight: 1300 g
Support for multiple splicing modes
Support WIFI player, DLAN connection
The drive supports 2-way USB 2.0 input
With audio extraction, digital fiber optic and 3.5mm analog audio output
Pure material design, plug and play, no need for software
Box contents:
TW23*1
Remote Control * 1
Power supply 12 V * 1
Antenna * 1
