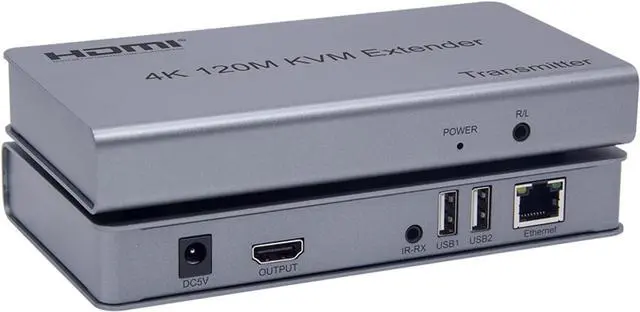

Swallow 4K 120M HDMI KVM Extender by RJ45 Ethernet Cat5e Cat6 Cable Converter TX RX Support USB Mouse Keyboard Extension Touch Screen
Limited time offer, ends 07/16 By Rufei Tech

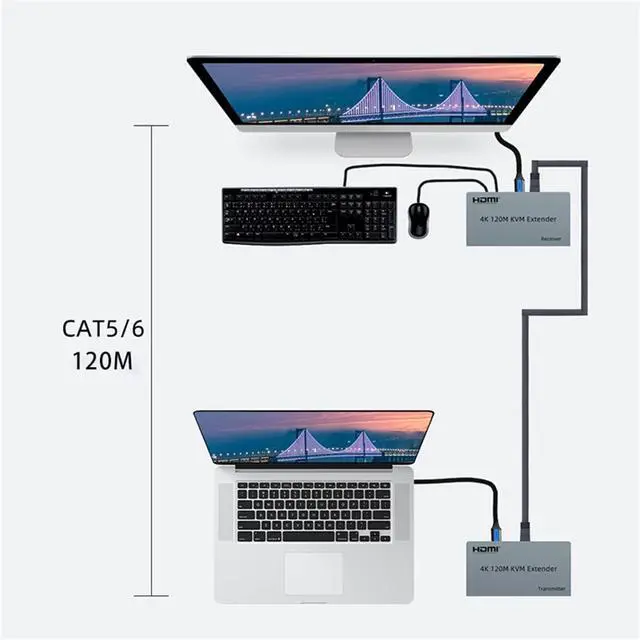

- 1. Use a CAT5e or CAT6 cable (recommended) instead of the HDMI cable to extend the HDMI2.0 4K @ 60Hz signal for 60 meters.
- 2. Support keyboard / mouse / USB2.0 extendin
- 3. The transmitter supports an HDMI loop-out to monitor the signal source more conveniently. Both the transmitting and receiving ends support 3.5MM left and right channel audio output.
- 4. It supports infrared remote extension and remote control, which can remotely control the source equipment on the display side, which is easy to install and plug and play.
- 5. It is widely used in video conference, monitoring center, multimedia teaching, home theater, etc. It can efficiently and quickly transmit video to meet the needs of your various occasions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

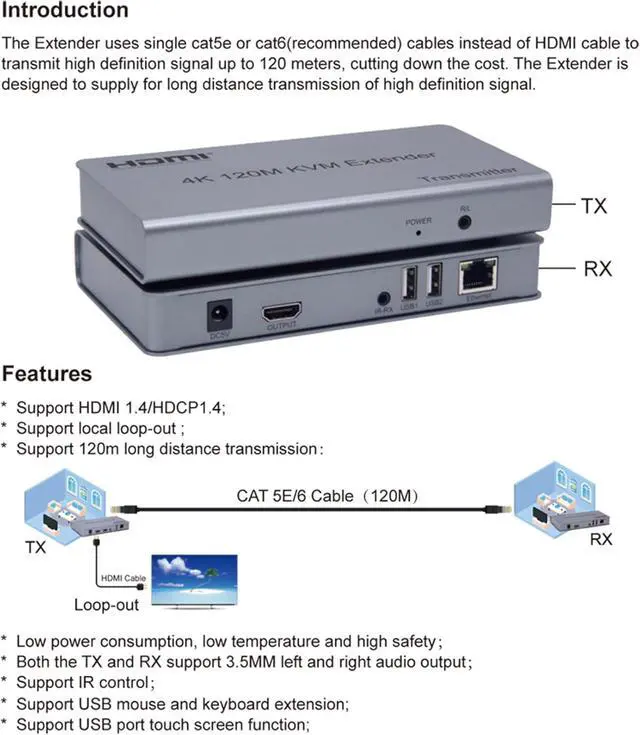

Features
* Support HDMI 1.4/HDCP1.4;
* Support local loop-out ;
* Support 120m long distance transmission.
* Low power consumption, low temperature and high safety;
* Both the TX and RX support 3.5MM left and right audio output;
* Support IR control;

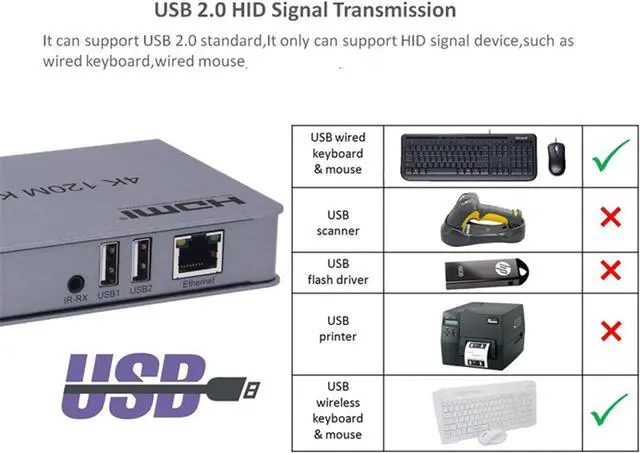

* Support USB mouse and keyboard extension;
Specifications:
Length of CAT5e/CAT6 cable between Rx and TX120 meters
HDMI Input4k/1080p/720p/576p/576i/480p/480i
HDMI Output 4k/1080p/720p/576p/576i/480p/480i
Max bandwidth 340MHz
Max baud rate3x3.4Gbps
Input video signal0.5~1.5Volts p-p
Output DDC signal 5Volts p-p (TTL)
Input HDMI cable distance 10m AWG26 HDMI standard cable
Output HDMI cable distance 10m AWG26 HDMI standard cable
TX Max working current350mA
RX Max working current 200mA
Power adapter format Input:AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/1A
Operating Temperature range (-15 to +55)
Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (L x W x H) 107x105x27.3 (mm)
TX Weight 499g RX Weight 494g
The Package includes:
1. TX Extender 1pcs
2. RX Extender 1pcs
3. IR cable 1pair
4. 12V/2A DC Power adapter 2pcs
5. User Manual 1pcs
