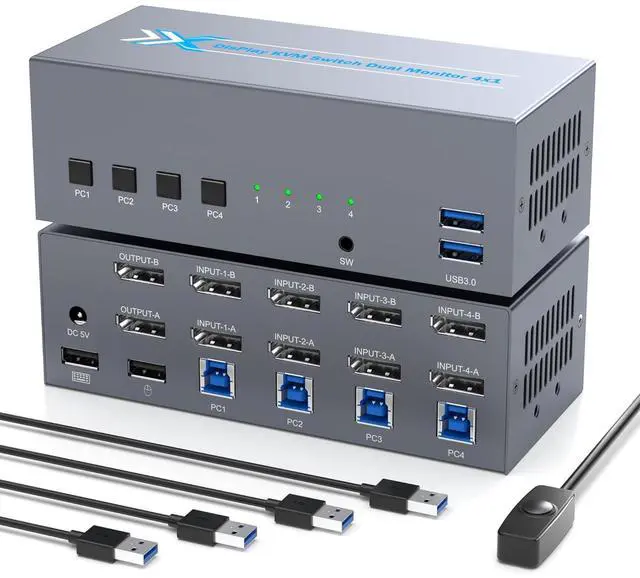

Ennovor ALGOX 8K@60Hz USB3.0 DisplayPort KVM Switch 2 Monitors 4 Computers 4K@120Hz Dual Monitor KVM Switcher DisplayPort 1.4 KVM Switch Support Hotkey Switching with 1.5m Desktop Controller

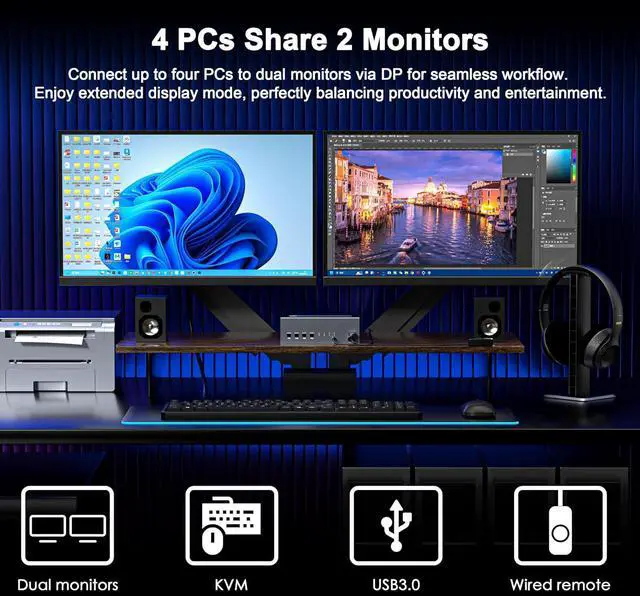

Supports Ultra-High Resolution: DP1.4 standard with up to 8K@60Hz or 4K@120Hz, plus HDR and 3D support.Dual-Monitor Functionality: Mirror or extend displays to suit different usage scenarios.Efficient KVM Control: Manage four computers with one keyboard and mouse.Multiple Switching Options: Switch via buttons, wired remote control, or customizable hotkey combinations.USB 3.0 Expansion: Share two USB 3.0 devices between all connected computers for fast data transfers.Optimized for Modern Graphics Cards: Dual-DP design aligns with most graphics card configurations.Wide Compatibility: Works with mainstream devices and operating systems.
Unlike similar products with DP1.2 ports that max out at 4K@60Hz, this KVM switch supports resolutions up to 8K@60Hz, and at 4K, it achieves a refresh rate of 120Hz. Enjoy sharper, smoother visuals, ideal for high-performance tasks.
In addition to KVM switching, this product includes two USB 3.0 Type-A ports, enabling four computers to share devices like printers, USB drives, hard drives, and card readers. With USB 3.0 speeds reaching up to 5Gbps, youll experience significantly faster file transfers than with standard USB 2.0 ports.

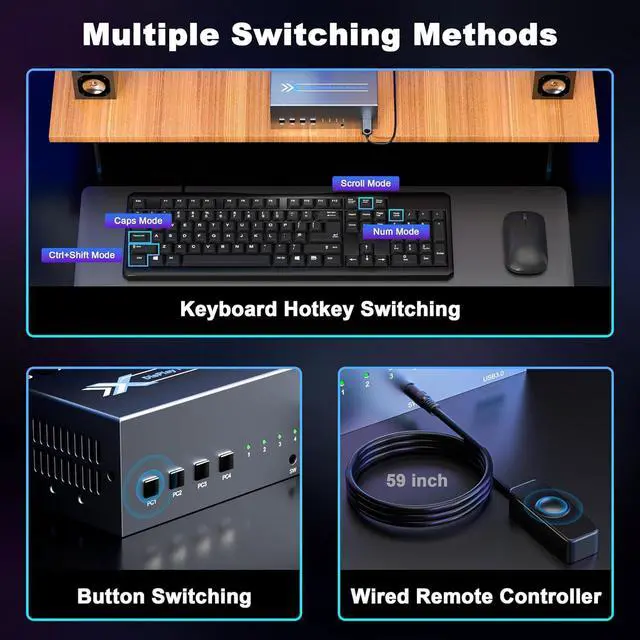

Our KVM switch features multiple hotkey combinations, allowing you to select the mode that best suits your needs, reducing setup time and making operation seamless from the start.

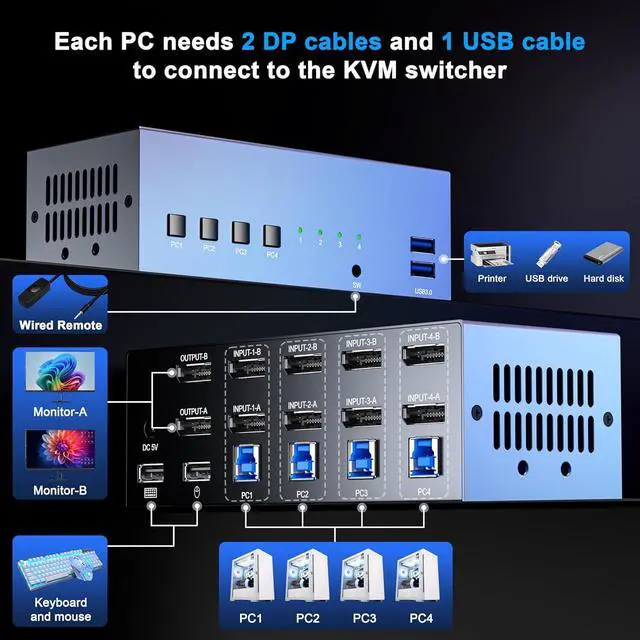

Connection: Each computer requires two DP cables and one USB A to B cable (four USB A to B cables included; DP cables are not included).Step 1: Power the KVM switch using the provided adapter.Step 2: Connect each computer with two DP cables and one USB A to B cable to the corresponding DP and USB-B ports on the KVM switch. Repeat this setup for all four PCs.Step 3: Connect your keyboard and mouse to the labeled USB KVM ports on the switch. Connect the wired remote controller to the SW port. Finally, plug any additional USB devices into the USB 3.0 ports to complete the setup.
Important:

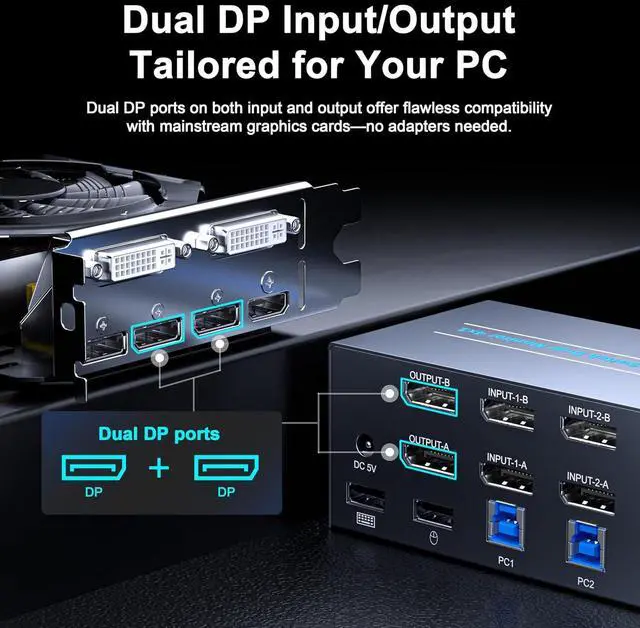

Ensure all DP cables are DP1.4 compliant, and that your computer&monitor support 8K resolution. Supports HDMI/VGA/DVI/USB-C to DP adapters or cables, but please ensure they support up to 8K resolution.The left/right DP port order is flexible; monitor order can be adjusted in the display settings on your PC.
1. Check Cable Connections: Ensure all DisplayPort cables are securely connected to both the KVM switch and your computers. Use high-quality DP 1.4 cables to ensure stable signal transmission. If using an adapter, confirm that it supports 8K resolution and dual monitor output.
2. Verify Power Supply: Use the included power adapter to ensure stable power delivery. Avoid using passive USB power sources, as they may cause switching failures.
3. Adjust Display Settings: On Windows: Press Win + P and select "Extend" or "Duplicate" mode. On Mac: Go to System Settings > Displays, and make sure both monitors are detected.
4. Reinitialize the KVM Switch: Step 1: Power off the KVM switch and all connected computers. Step 2: Disconnect and reconnect the cables. Step 3: Power on the KVM switch before turning on the computers.
5. Test with a Single Monitor
If dual monitors do not work, test with only one monitor to isolate the issue.
6. Ensure Proper Switching Method
If using keyboard hotkeys, confirm that the correct key combination is used.
If using the physical button, press it firmly and wait for the signal to sync.
7. Update Graphics Drivers
Ensure your GPU drivers are up to date to avoid compatibility issues.
If the issue persists, please contact our customer support for further assistance.

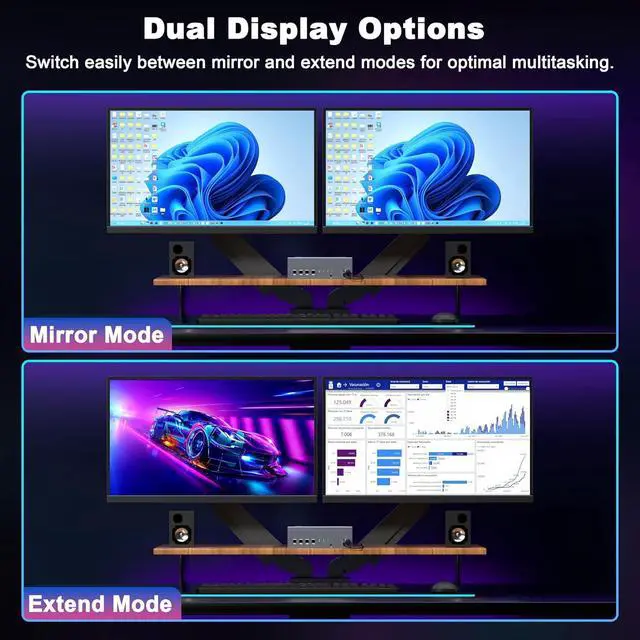

How to Switch Between Mirror and Extend Mode on Windows
Open Display SettingsRight-click on the desktop and select "Display settings".Select Display ModeScroll down to the "Multiple displays" section. Click the drop-down menu and select either "Duplicate these displays" (for mirroring) or "Extend these displays" (for extendi
