Ennovor 8K@60Hz 2 Displayport +HDMI USB3.0 KVM Switch 3 Monitors 4 Computers, 2 DP 1.4 +HDMI 2.1 Triple Monitor KVM Switch with Audio Microphone +3 USB3.0 Ports, Triple Monitor Keyboard Mouse Switcher

USB 3.0 Triple Monitor HDMI + 2 DisplayPort KVM Switch for 4 Computers
Features:
4 computers / laptops share one set of keyboard, mouse and 3 monitors (HDMI+2 DisplayPort)Triple monitors output support up to 4K@60Hz for extended and mirrored displayTwo Switching modes: Button switch and wired remote.With extra 3 USB 3.0 and Audio Microphone outputCross support most major OS including Windows, Linux, Mac and moreThe ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered

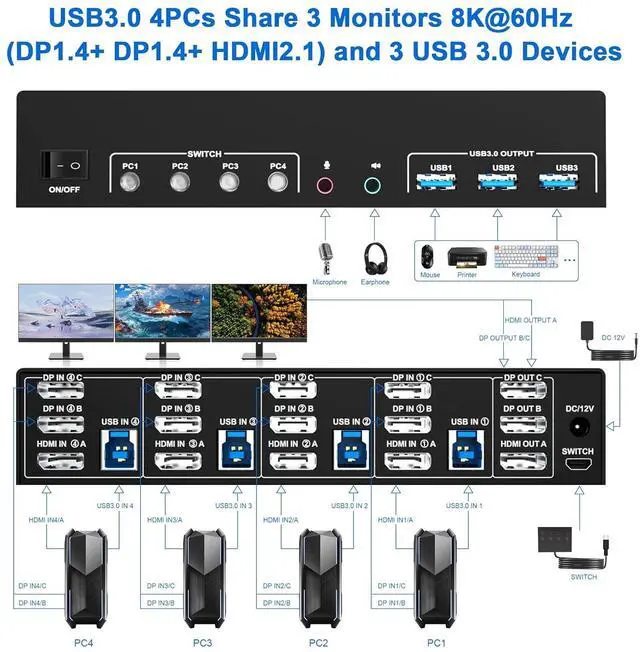

installation steps:
1. Insert the adapter into the KVM ;
2. Plug the 2*Displayport cable and HDMI cable into the KVM switch and monitor;(Output)
3. Plug the Displayport cable, HDMI cable and USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included)(Input)
Please check whether HDMI IN1A, DP IN1B, DP IN1C and USB IN1 are corresponding, whether HDMI IN2A, DP IN2B, DP IN2C and USB IN2 are corresponding, whether HDMI IN3A, DP IN3B, DP IN3C and USB IN3 are corresponding, whether HDMI IN4A, DP IN4B, DP IN4C and USB IN4 are corresponding. Mixed insertion is not supported.
HDMI IN1A + DP IN1B + DP IN1C + USB IN1=PC1HDMI IN2A + DP IN2B + DP IN2C + USB IN2=PC2HDMI IN3A + DP IN3B + DP IN3C + USB IN3=PC3HDMI IN4A + DP IN4B + DP IN4C + USB IN4=PC4
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port

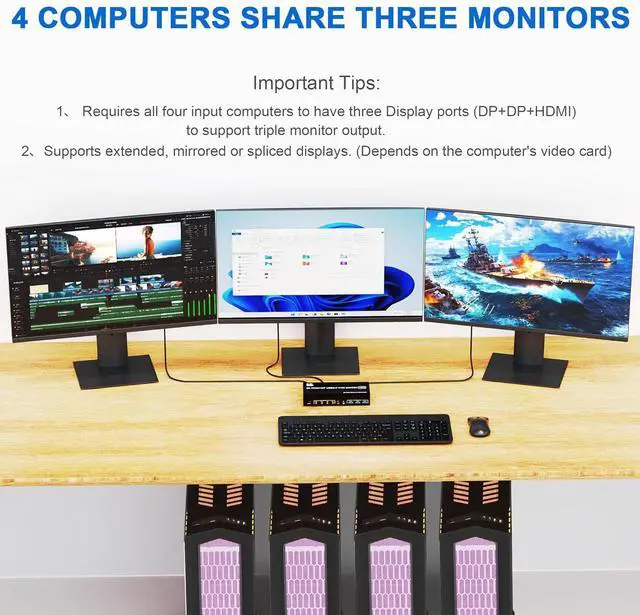

KVM Switch Triple Monitor Ultra HD 8K@60Hz:
The HDMI 2.1, DP 1.4 triple monitors ( DisplayPort +DisplayPort +HDMI) 4Ports kvm switch supports resolution up to 8K@60Hz and downwards. Please be reminded it only when both your computer Graphics card and monitor support 8K@60Hz then you can get 8K@60Hz effect.
4 PCs Share 3 USB 3.0 Devices
This kvm switch 3 monitors 4 computers with 3 USB 3.0 Ports for keyboard, mouse, printers, USB headsets or webcams.
Note
Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 1 HDMI /2 DP cables connect to the KVM.If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.Triple Monitor KVM Support 2 Switching ModesQuickly switch between the 2 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).Please note: This kvm switch displayport does not support hotkey switching.Please use the 5V power adapter ( include in the packge) to power this Displayport and HDMI triple Monitors KVM Switch.
Headphone Jack and Microphone Jack
This Triple Monitor HDMI + 2 DisplayPort KVM Switch comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.
2 Switching Mode:
You can press the button on the panel or use the wired remote controller (included in the package) to switch the computers. It provides several switching options for different scenarios.
