Ennovor 8K Displayport USB 3.0 KVM Switch 3 Monitors 2 Computers, DP1.4 Triple Monitor KVM Switch with Audio Microphone Output and 3 USB 3.0 Ports, 8K DP KVM Triple Monitor Keyboard Mouse Switcher

8K@60HZ DisplayPort USB 3.0 Triple Monitor KVM Switch for 2 Computer Sharing 3 Monitor and 3 USB 3.0 Ports, Audio & Microphone
Advantages:
1, Share one set of keyboard, mouse and 3 monitors (3 DisplayPort) between 2 computers or laptops;2, Supoort DP 1.4 and downward compatible.3 monitors output support up to 8K@60Hz for extended,mirrored or spliced displayDepends on your computer's graphics card.;3, No complicated installation is required, and non-professionals can easily operate it, Ideal for multi-tasking professionals and gamers who need to access multiple devices quickly and efficiently;4, Cross support major operation systems including Windows, Linux, Mac and more;5, Switching modes: Buttons on the front panel and wired remote;6, The ports that need to plug in DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;7, A USB hub can expand the USB3.0 ports if multiple connections are required, also an audio microphone output.
8K/4K HD Resolution
This kvm switch 3 monitor supporting high resolution max up to 8K@60Hz, and also supports 4K@60Hz or other lower resolution (Downward Compatible).

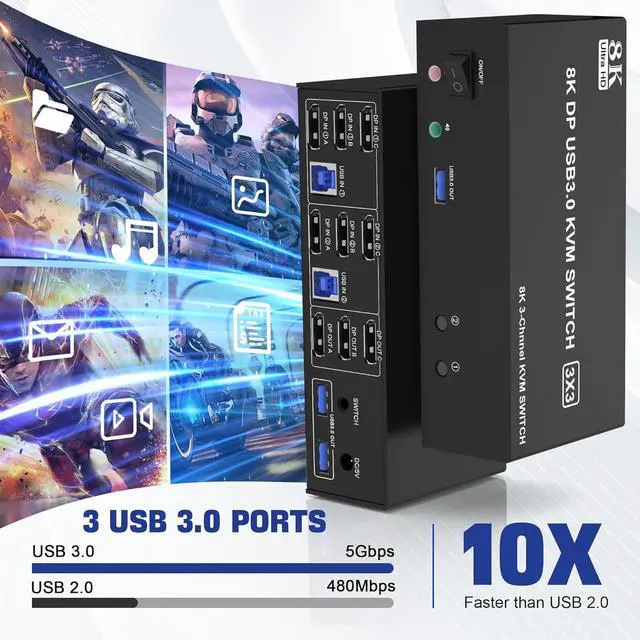

Note:
Only when both your computer Graphics card, monitor and DP cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

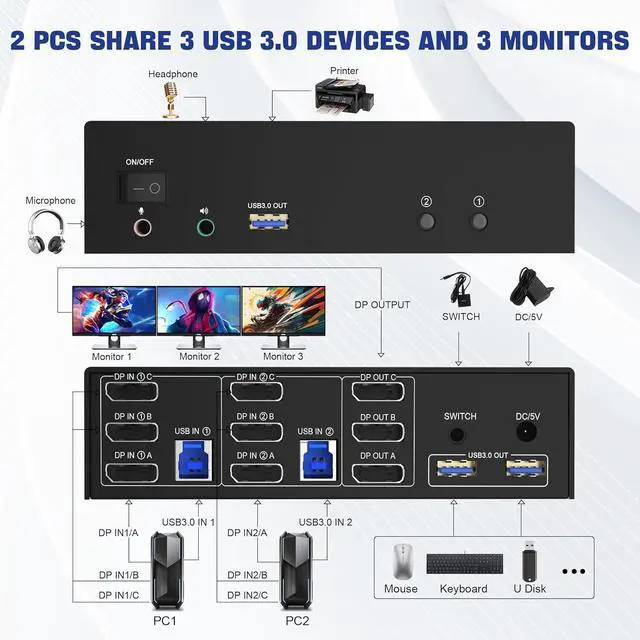

installation steps:
1. Insert the DC/5V adapter into the KVM ;2. Plug the 3 DP cable into the KVM and monitor;(3 DP Output)3. Plug the 3 DP cable and USB cable into the KVM and your computer/laptop (DP cables are not included)(Input)DP IN 1A + DP IN 1B + DP IN 1C + USB IN 1=PC1DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2=PC2Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported.4. Insert the mouse and keyboard into the KVM switch5. If needed, you can connect a microphone and audio port
Note
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(3 DP cables+1 USB cable) connect to the KVM.2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.3.If the input USB3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.4. Note: DP cables are not included

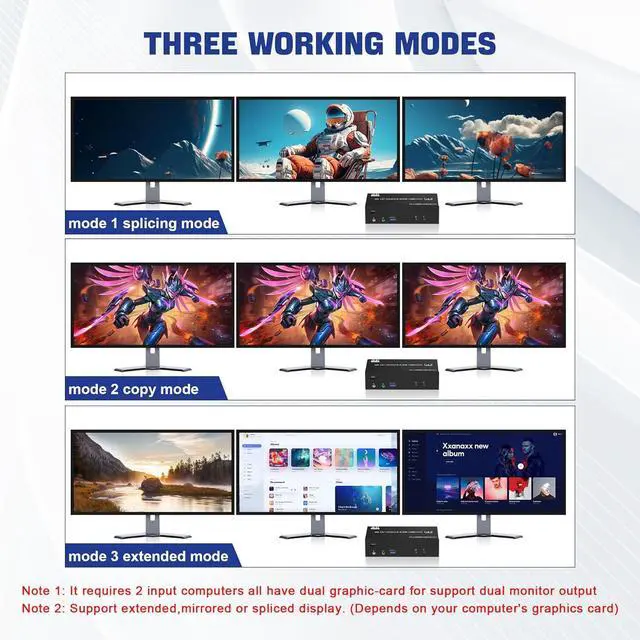

3 Display Modes
Extended DisplayMirrored DisplaySpliced Display
If you are a designer or illustrator, you can use this mode to see the effect while working.
1)Extended mode can output 3 different screens and mirror mode can output 3 identical screens.NoteIf your graphics card has a splicing screen function, you can use the splicing screen mode.2) The requirement for this KVM to achieve a 3-screen display is that each PC you connect to has the capability to support a 3 screen display. This has nothing to do with KVM.

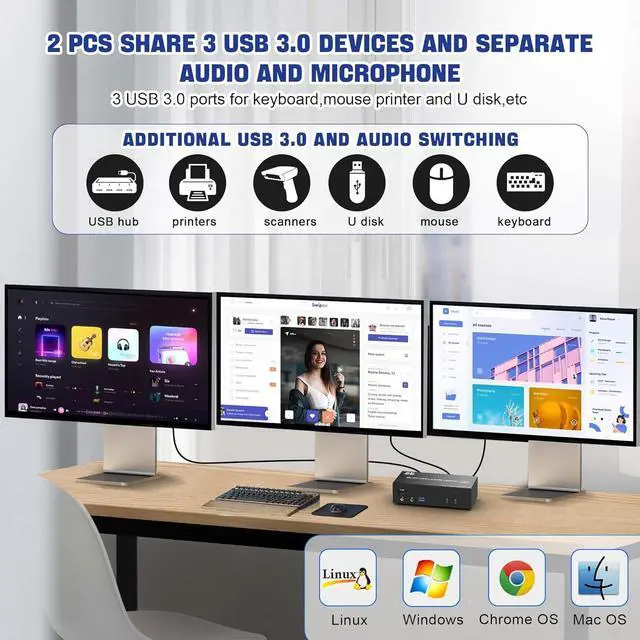

Display port kvm switch comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

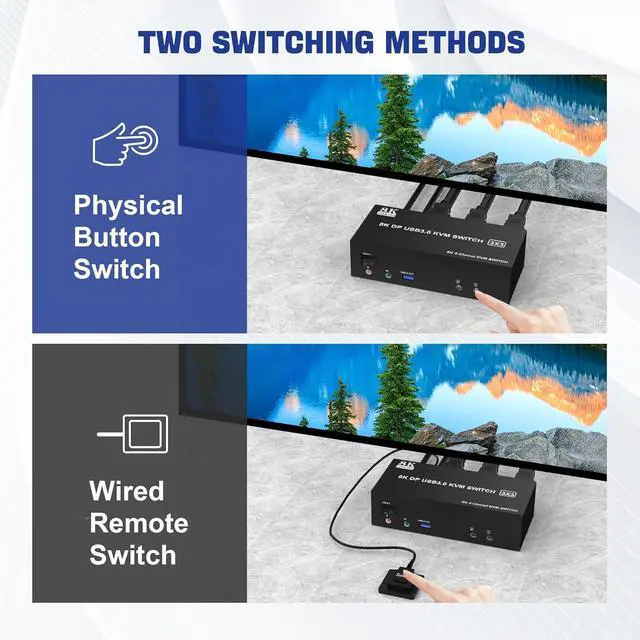

Quickly switch between the 2 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).Please note: This KVM does not support hotkey switching.
When switching to which PC, the LED will tell you whether PC1 or PC2 is active.
Supports separate audio and microphone output Switch by Panel button/desktop controller LED Indicator
