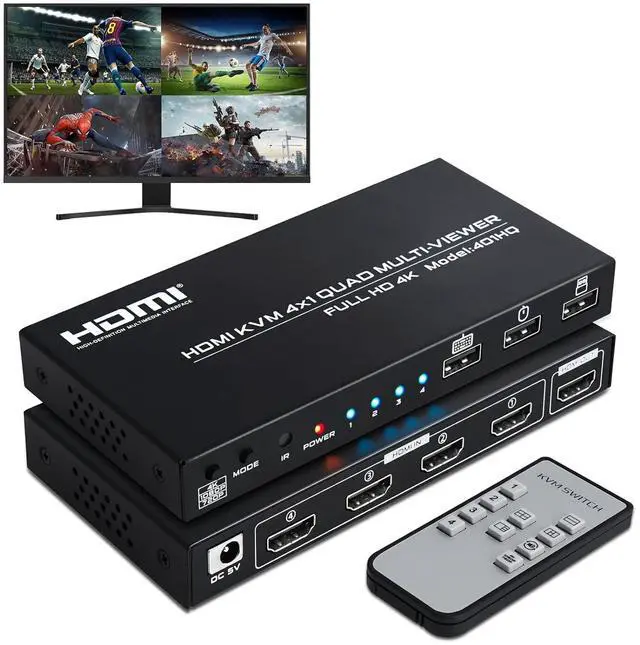

Ennovor 4 Port HDMl KVM Multiviewer 4K@30Hz, 4x1 Quad Multi Viewer Seamless Switcher 4 in 1 Out Support 4K 1080P 720P, 6 Viewing Modes with Keyboard Hotkey Switch and IR Remote

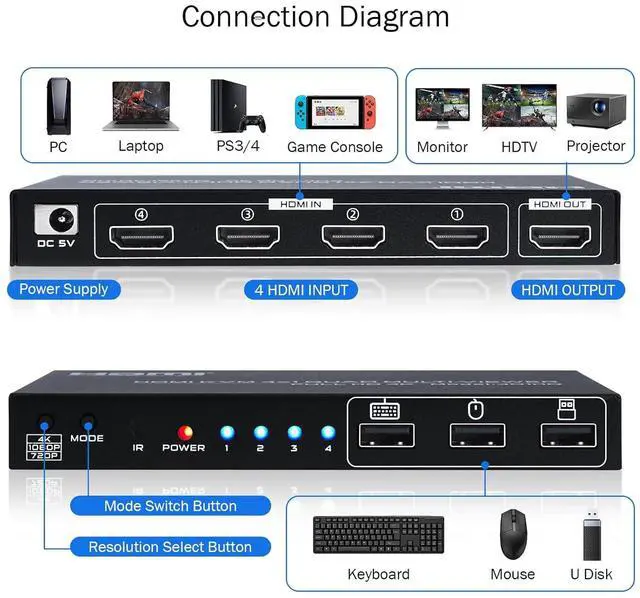

- 4x1 HDMI KVM Switch with Multi-Viewer - 4 in 1 out HDMI KVM Switch supports 4 HDMI input sources to a single HDTV or monitor, and 4 computers simultaneously using 3 USB 2.0 devices, such as mouse, keyboard, and USB stick.

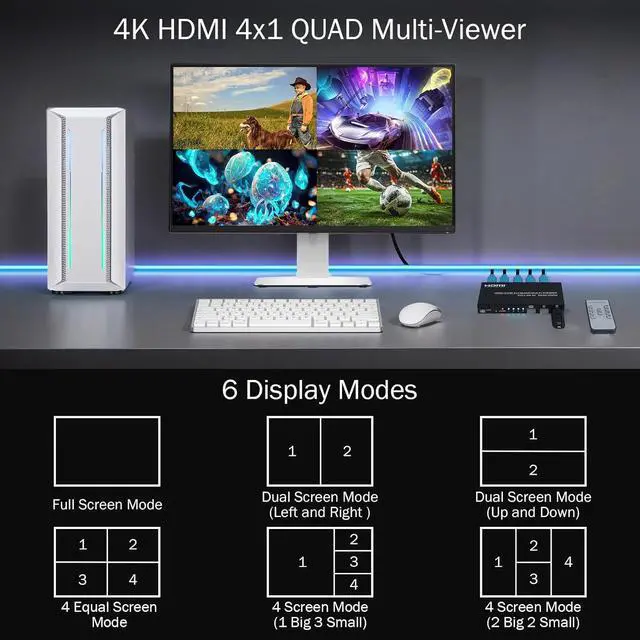

- 6 Viewing Modes - DGODRT HDMI multiviewer provides 6 different viewing modes, including full screen, up/down, left/right, 4 equal screens, 1 big 3 small and 2 big 2 small modes, which is flexible and easy to use, and can be controlled by push button and remote control.
- Supports multiple resolutions - 4 Port HDMl KVM Multiviewer supports HD resolutions up to 4K@30Hz with backward compatibility. Supports 1080p and 720p resolutions. Supports HDCP 1.4 for compatibility with a wide range of devices. Supported audio formats - Dolby and DTS.

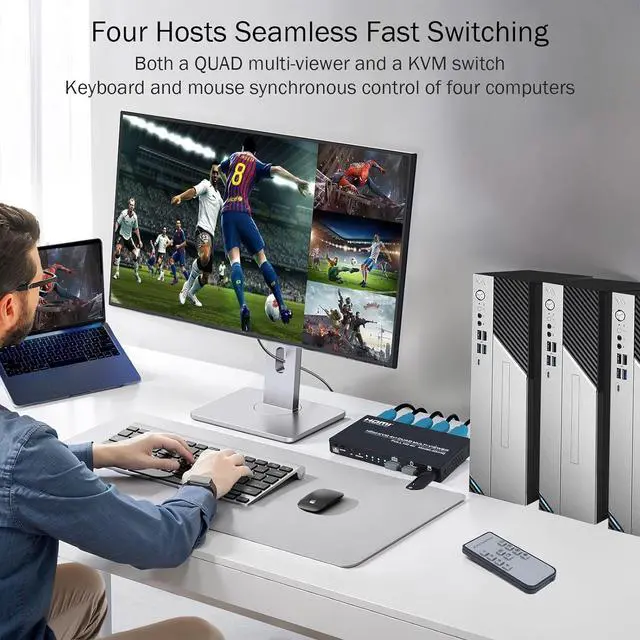

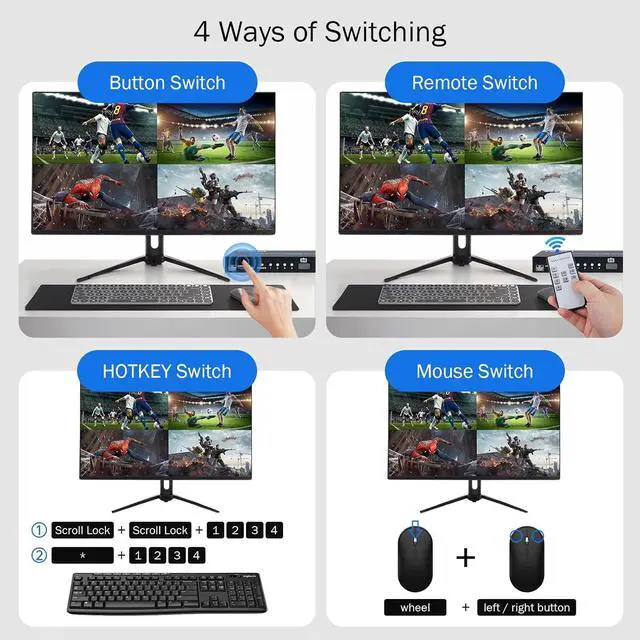

- 4 Switching Modes - 4x1 Quad Multi Viewer supports four hosts seamless and fast switching, including push button, remote control, hotkey switch and mouse switch modes.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DGODRT 4K HDMI KVM Switch 4 in 1 out Quad Multiviewer supports 4 Computers share 1 Monitor, Keyboard, Mouse or other USB devices at the same time
1. Keyboard shortcut replacement: (The following shortcut key "Scroll lock" can be replaced with Ctrl / CapsLock / NumLock according to personal habits)
scroll lock + scroll lock + "Ctrl / CapsLock / NumLock " + Enter
2. Single screen control switching for USB devices:
1) scroll lock + scroll lock + 1/2/3/4
2) numeric keypad * + 1/2/3/4 (Simultaneously press)
3) Switch to the front / back screen of the current control screen: Press the mouse wheel + left / right mouse button (Simultaneously press)
Follow the above hotkey to choose which computer that the USB devices is controlling when multi HDMI sources showing on 1 monitor.
3. On/Off multi-screen keyboard-and-mouse crossing mode:
scroll lock + scroll lock + F12
Crossing mode allows keyboard and mouse cross between HDMI sources, which means you can control max 4 computer at the same time.
4. Multi screen synchronous control mode:
numeric keypad * + 0 (Simultaneously press)
Synchronous control mode means the USB devices will operate multi HDMI sources with the same way at the same time.
5. Restore factory settings:
scroll lock + scroll lock + ESC / R .
1. Keyboard shortcut replacement: (The following shortcut key "Scroll lock" can be replaced with Ctrl / CapsLock / NumLock according to personal habits)
scroll lock + scroll lock + "Ctrl / CapsLock / NumLock " + Enter
2. Single screen control switching for USB devices:
1) scroll lock + scroll lock + 1/2/3/4
2) numeric keypad * + 1/2/3/4 (Simultaneously press)
3) Switch to the front / back screen of the current control screen: Press the mouse wheel + left / right mouse button (Simultaneously press)
Follow the above hotkey to choose which computer that the USB devices is controlling when multi HDMI sources showing on 1 monitor.
3. On/Off multi-screen keyboard-and-mouse crossing mode:
scroll lock + scroll lock + F12
Crossing mode allows keyboard and mouse cross between HDMI sources, which means you can control max 4 computer at the same time.
4. Multi screen synchronous control mode:
numeric keypad * + 0 (Simultaneously press)
Synchronous control mode means the USB devices will operate multi HDMI sources with the same way at the same time.
5. Restore factory settings:
scroll lock + scroll lock + ESC / R .
