among 8 devices, and ports resolution up to 4K@30Hz as well as sync output of dio and video.
Feature:
8 in 1 Out Design
You can share one display among 8 hosts, and free to switch the output of them to fulfil your different needs.
Sharing Makes Life Simpler
With USB ports, you can share , keyboard, U disk, printer, etc among 8 hosts, no need to plug and pull repeatedly and keep your desk tidier.

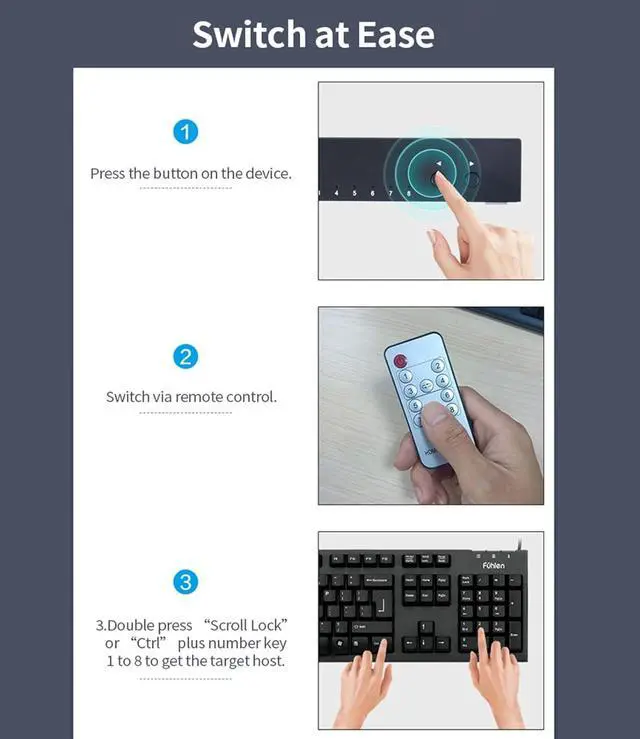

Switch at Ease
There are 3 methods for you to choose. Press the button on the HDMI KVM Switch, switch via remote control or press "Scroll Lock" or "Ctrl" plus number key 1 to 8 on the keyboard to get the target device.
Wonderful Watching Experience
It ports resolution up to 4K@30Hz, offering more details and low latency when displaying. Besides, it also ports sync output of dio and video.
Adaptive Design
It ports DDC function, selecting the fixed layout most appropriate for your screen.
Specification:
Video standards: HDMI 2.0
dio format: LPCM2/5.1/7.1CH, Dolby 5.1CH
Maximum data rate: up to 4k30hz
Resolution : up to 3840*2160@30Hz, 1920*1080@60Hz
Connector: HDMI-A Interf
HDMI Cable : <15M(Res:1920*1080@60Hz)
<5M (Res:3840*2160@60Hz)
USB Interf pcols: USB2.0
Input: USB-B, USB-A
Output: High Definition Multimedia Interf
Power ply: USB Power
Power dissipation: MAX 4W
Operating temperature : -5 ~ +70
Operating humidity: 5% ~ 90%
Item size: 205* 77* 28mm/ 8.07* 3.03* 1.1in
Package size: 213* 80* 50mm/ 8.39* 3.15* 1.97in
Package weight: 800g/ 28.22oz
Packing list:
1 * 8 in 1 Out HDMI KVM Switch
8 * USB cable
1 * Remote control
1 * User manual
