Ennovor BeMatik DVI Over IP KVM Extender
- Transmit DVI digital video via local network or local area network based on TCP/IP protocol.
- Compatible with HDMI using DVI to HDMI adapters, although only digital video will be transmitted.
- Maximum distance between the two modules of 100 m.
- Maximum resolution supported 1920x1080 or FullHD 1080p.
- Direct connection between the two modules via a UTP cable or connected by LA 1000 Mbps (Gigabit) switch.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

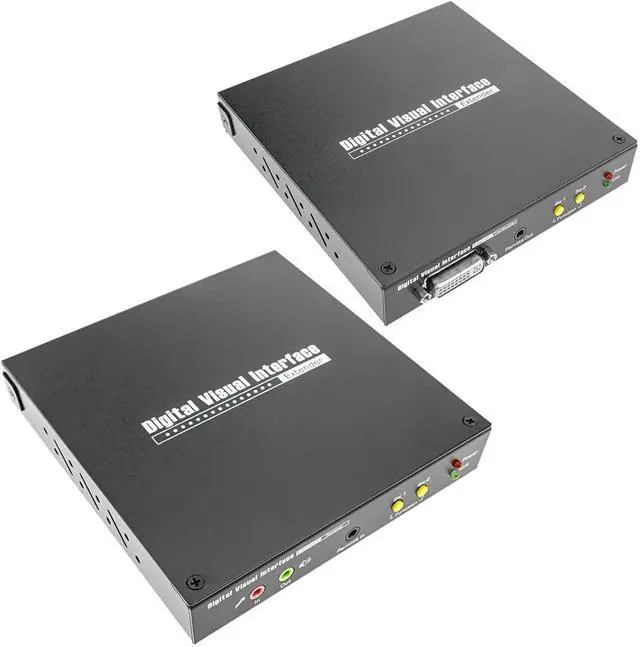

DVI digital video extension via IP You can transmit DVI and HDMI video with HDMI to DVI adapters (only digital video will be transmitted). It consists of two parts: the local module and the remote module. Both are interconnected by UTP cable, using an existing local area network (LAN). The maximum transmission distance is 100m and there may be a 1000Mbps switch in this network.
Specifications
In addition, it allows the transmission of USB signals (keyboard, mouse, etc.) and audio. It allows the reproduction of DVI videos from other computers that are not next to the playback screen. Applicable to video servers Select between graphics mode and video mode. Optionally, IR control signals can be transmitted (necessarythe transmitter and IR receiver are not provided). Both modules are provided, two power supplies, a DVI cable, a USB cable and a stereo audio cable. Local Module

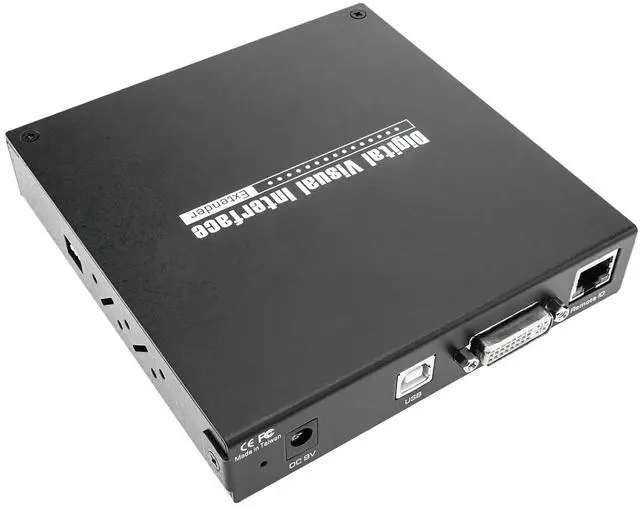

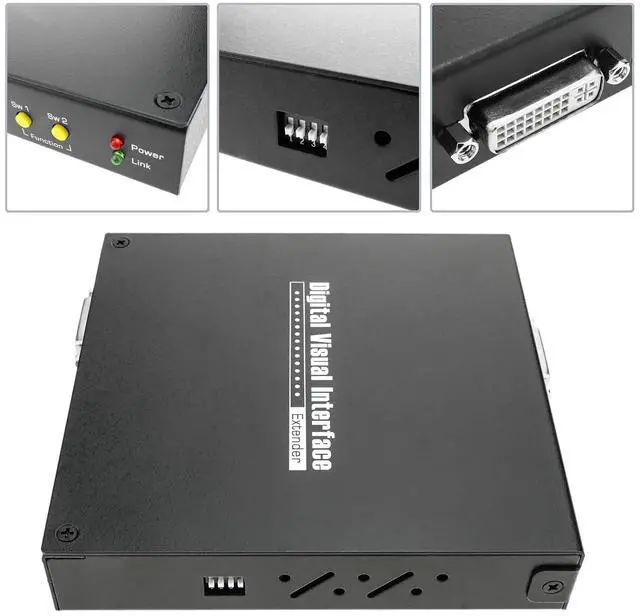

DVI female for connecting to the DVI output of the video server. DVI female for connection to the DVI monitor of the server (pass). RJ45 Female for LAN connection. USB B female for connection to video server 3.5 mm minijack for connection to the IR sensor. 2 x Operational Switches Status LEDs (power and link). DC plug for connection to power supply. Remote Module
DVI female for connecting to DVI video display. RJ45 Female for LAN connection. 4 USB A connectors for USB female devices (keyboard, mouse, USB flash drive for video playback, etc.). 3.5mm minijack (2 connectors) for digital stereo audio input and output. 3.5 mm minijack for connection to the IR sensor. 2 x Operational Switches Indicator
Specifications
In addition, it allows the transmission of USB signals (keyboard, mouse, etc.) and audio. It allows the reproduction of DVI videos from other computers that are not next to the playback screen. Applicable to video servers Select between graphics mode and video mode. Optionally, IR control signals can be transmitted (necessarythe transmitter and IR receiver are not provided). Both modules are provided, two power supplies, a DVI cable, a USB cable and a stereo audio cable. Local Module
DVI female for connecting to the DVI output of the video server. DVI female for connection to the DVI monitor of the server (pass). RJ45 Female for LAN connection. USB B female for connection to video server 3.5 mm minijack for connection to the IR sensor. 2 x Operational Switches Status LEDs (power and link). DC plug for connection to power supply. Remote Module
DVI female for connecting to DVI video display. RJ45 Female for LAN connection. 4 USB A connectors for USB female devices (keyboard, mouse, USB flash drive for video playback, etc.). 3.5mm minijack (2 connectors) for digital stereo audio input and output. 3.5 mm minijack for connection to the IR sensor. 2 x Operational Switches Indicator
