Ennovor 4K 30Hz 120M HDMI KVM Extender Over Rj45 Cat5e/6 Cable up to 120M HDMI USB Extender with Loop-Out for PC NVR Mouse Keyboard
- A4K 120M KVM Extender: 60M/120M long distance transmission, local loop out, audio separation, keyboard/mouse extension, pure hardware, plug and play.
- BAnti-static technology, prevent electronic components from being damaged by static electricity; anti-surge technology, enhance product stability to prevent surge impact; 4K/30Hz, enjoy high-definition visual experience of the delicate world; audio separation, KVM, bi-directional audio output keyboard/mouse extension.

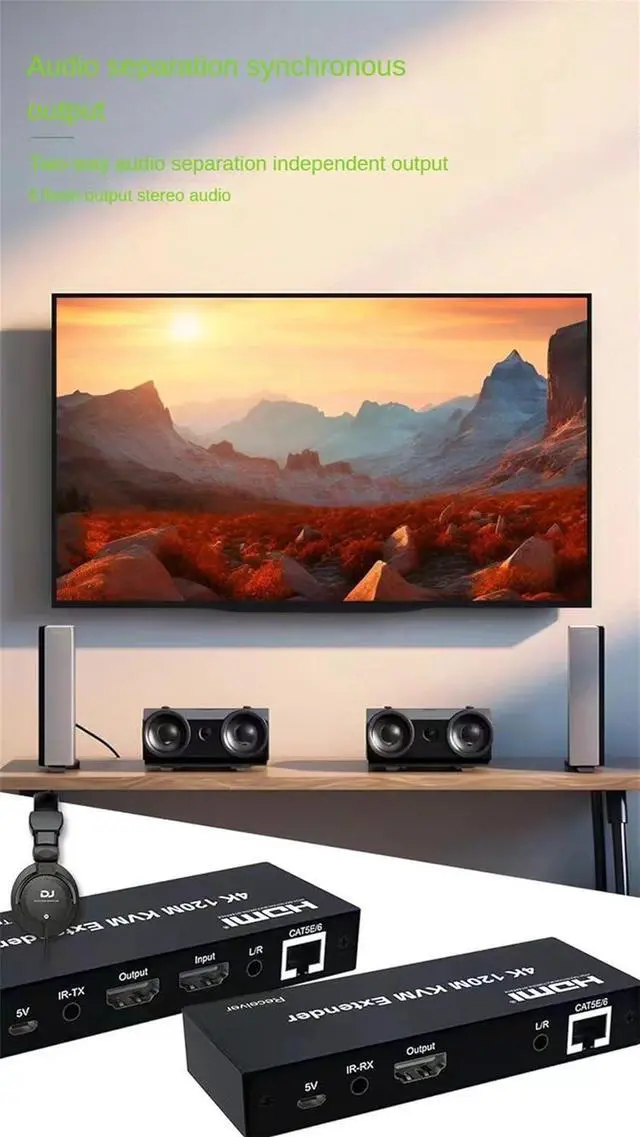

- CAudio Separation, Synchronous Output, Bi-directional Audio Separation, Independent Output, 3.5mm Output, Stereo Audio. HD transmission, 3840*2160/30Hz resolution, HDR dynamic image output with more delicate colours and lifelike picture quality.
- D:Scenario application: suitable for home sharing, TV outlets, advertising display, multimedia teaching and other scenarios.
- ENote: *TX and RX only support 1-to-1 direct connection, not network switch.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Remark

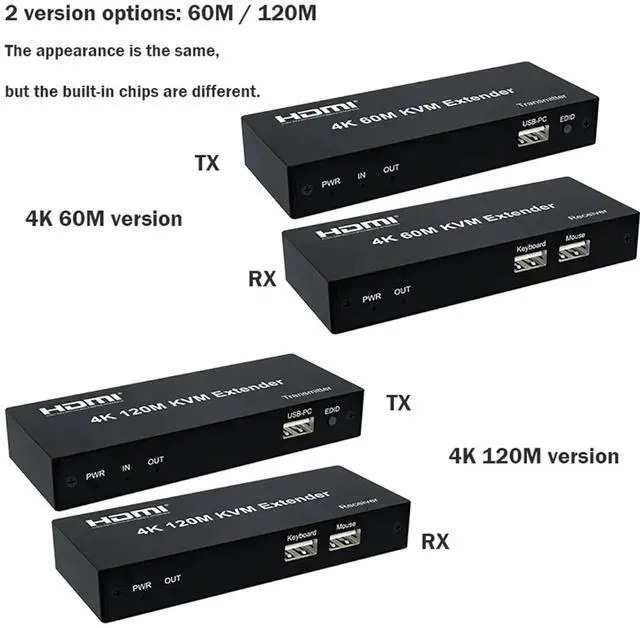

2 version options "4K 120M" "4K 60M"This is a 120M KVM Extender.
They look similar, but have different built-in chips and supported lengths.
Please purchase according to your needs.
Introduction:
The Extender uses single cat6 cables instead of HDMI cable to transmit high definition signal up to 60/120 meters, cutting down the cost.The Extender is designed to supply for long distance transmission of high definition signal.
Features:
* Support HDCP1.4;
* Support local loop-out ;
* Support 60m/120m long distance transmission;
* Low power consumption, low temperature and high safety
* Both the TX and RX support 3.5MM left and right audio output
* Support IR control
* Support USB mouse and keyboard extension;
* Key switch EDID, power off memory function.
Specifications:
Length of CAT6 cable between Rx and TX60/120 meters
HDMI Input 4k@30Hz/1080p@60Hz/720p/576p/576i/480p/480i
HDMI Output4k@30Hz/1080p@60Hz/720p/576p/576i/480p/480i
Max bandwidth 340MHz
Max baud rate3x3.4Gbps
Input video signal 0.5~1.5Volts p-p
Output DDC signal 5Volts p-p (TTL)
Input HDMI cable distance 10m AWG26 HDMI standard cable
Output HDMI cable distance10m AWG26 HDMI standard cable
TX Max working current350mA
RX Max working current200mA
Power adapter formatInput:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range (-15 to +55)
Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (L x W x H) 122x50x19 (mm)
The Package includes:
1 x KVM Extender (60M or 120M)
1 x USB Power Cable
2 x Power adapter
1 x IR cable
1 x User Manual
