Ennovor 1080P 150M HDMI IP Extender, Via RJ45 Ethernet Network Cat6 Cat 6 6a Cable Extension Via Switch 1 Transmitter to Multi Receiver with H.264 for PS4 Laptop TV (TX+RX)

Warm Tips :
1. our product is new upgraded,automatically match IP address,is much more convenient
2. The TX to RX support up to 253 RXs and 150m cat6 cable
Product introduction:

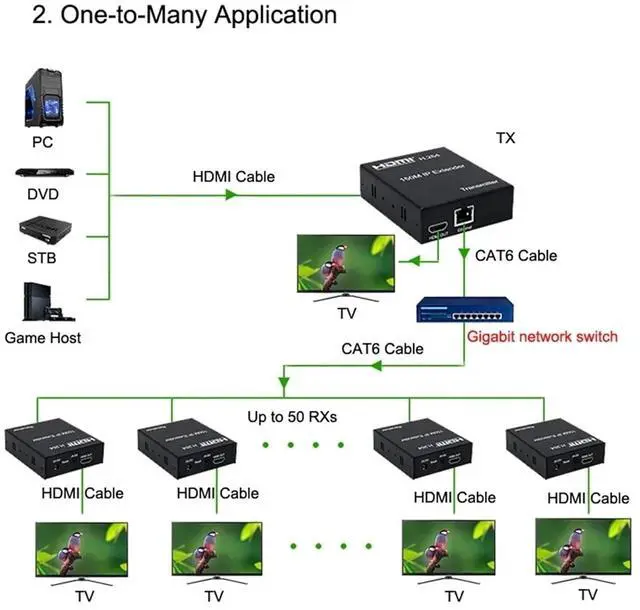

150M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display withthe high resolution up to 150 meters away from your DVD or computer source by usingone CAT5e/6 cable. At the same time, it's convenient to transmit HDMl audio and video source bypoint-to-point mode, one point-to-multi point mode and cascade connection mode
specification:
HDMI version : HDMI1.3
Video resolution support : 480p, 720p, 1080p
Sound Stereo: 32kHz, 44.1kHz and 48kHz
Infrared support : 38KHz; NEC code
Power input : DC 5V / 1A
Maximum power consumption
Dimensions (LWH):93x79x27mm
Physical weight :228g x 2
Connection and operation
1) Connect the HDMl source (such as DVD, PS3, STB ) to the HDMI IN of transmitterby HDMI cable.
2) Connect theHDMl out of Receiver to HDTV display by HDMI cable.3 )Connect the Transmitter and Receiver with one cat5e/6 cable (recommend).thefurthest distance is 150M.
4) Connect the IR receiver into IR-RX port on receiver, and R transmitter " intothe IR-TX on transmitter, and make sure the IR transmitter aim at lR port of thesource
5) Connect two pieces of 5V power supply to the transmitter and receiver, and power onthe HDTV display and HDMI source.
The Package contents :
Package Content for the option of "Only 1 RX"
1. Receiver 1PCS
2. 5V 1A Power Adapter 1PCS
3. IR Cable PCS
Package Content for the option of "1 TX and 1 RX "
1. Transmitter 1PCS
2. Receiver 1PCS
3. 5V 1A Power Adapter 2PCS
4. IR Cable 2PCS
5. User Guide 1PCS
