Features:
2 computers share a wired/wireless keyboard, mouse and 2 monitors.
Dual monitor output supports extended and mirrored display.

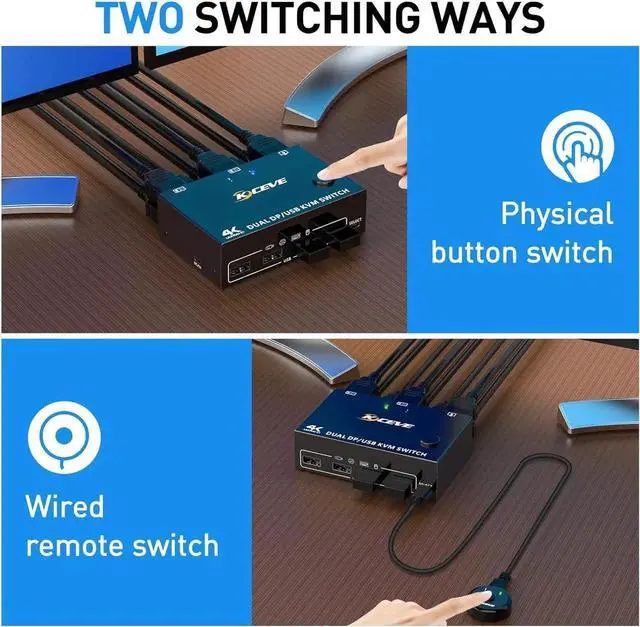

Switching mode: push-button switch and wired remote control.
Supports wired or wireless keyboard and mouse.
Cross support for most major operating systems, including Windows, Linux, and Mac
Support the highest resolution 8K@30Hz, 4K@120Hz, 3440*1440@ 144Hz, 2560*1440@144Hz and downward compatible.

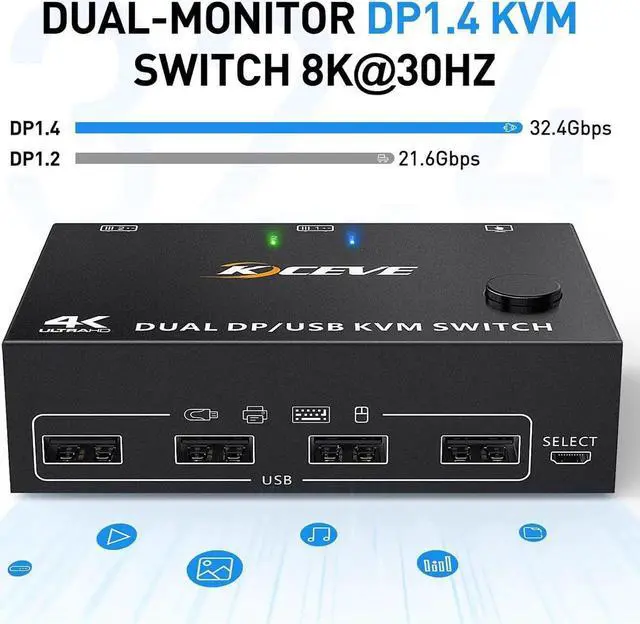

Supoort DP 1.4 and downward compatible.
Specification:

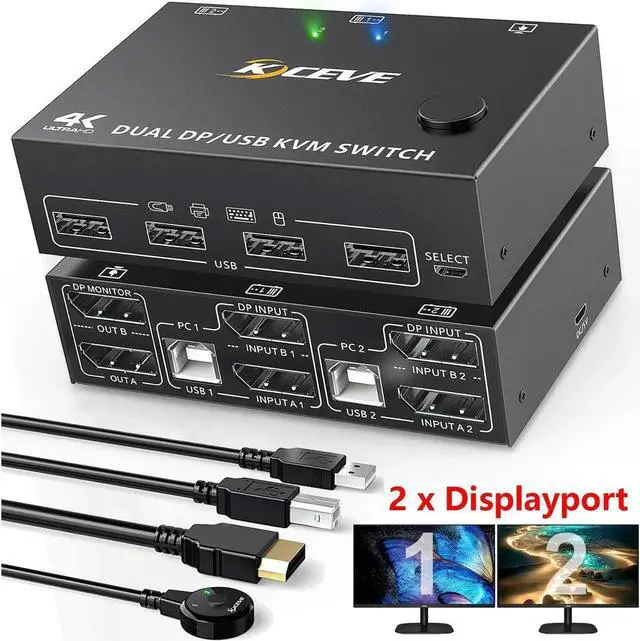

Input: Each PC (DisplayPort A + B), 1 x
USB Type-B OUT: 2 x Displayport (Monitor)
Down Input: 4 x USB A, Supports USB HUB
Size: 10.18 x 6.48 x 3.03 cm
Length of DP-/USB/wired remote: 150 cm
Package weight: 600g, KVM switch display: 200g
HDCP: 2.2, YUV:
4:4: 4.
Built-in: ESD protection system.
Surface: black oxidation treatment
Case material: metal.
Powered by 5V charger

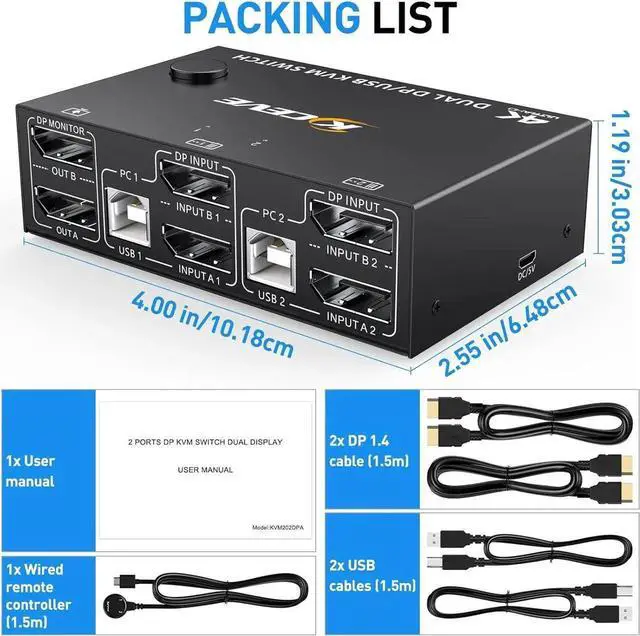

Packing list:
1 x Displayport KVM Switch
2 x USB cables 1.5 m.
1 x remote control cable 1.5 m.
1 x manual (English language not guaranteed).
Friendly reminder:

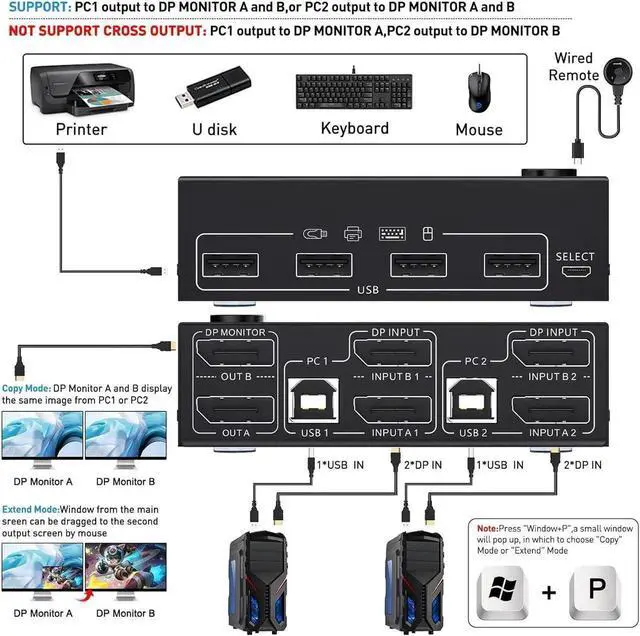

Please make sure the 2 Displayport cables and USB cables from PC1 are connected to USB 1, input A1, input B1 of the KVM switch.
Most computers, especially laptops, do not have two DisplayPort outputs. The solution is to use a USB-C to DP converter, does not support HDMI to DP
