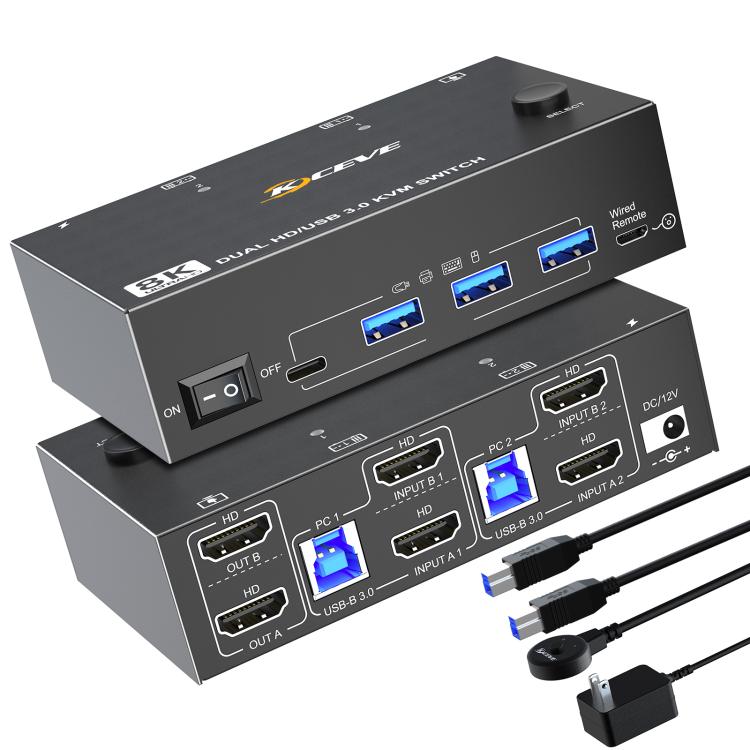

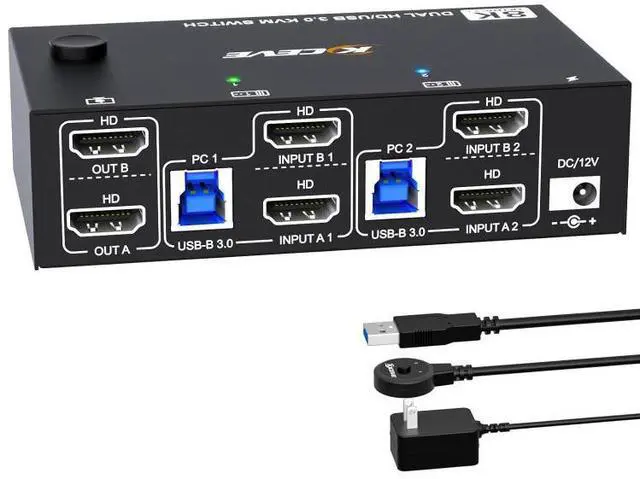

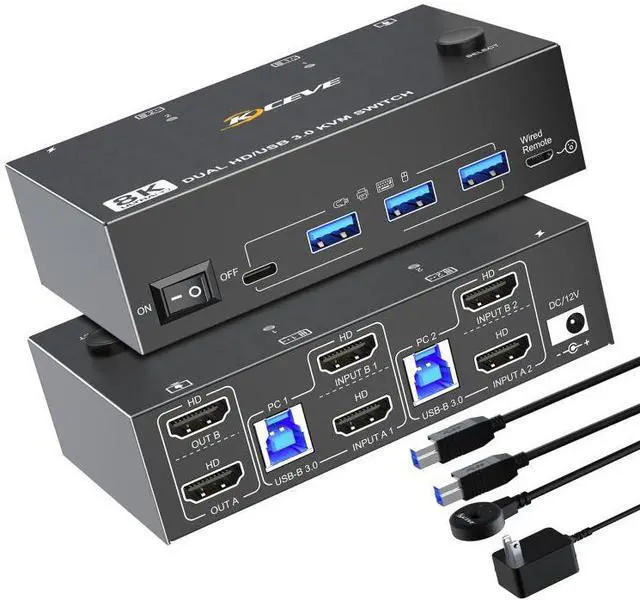

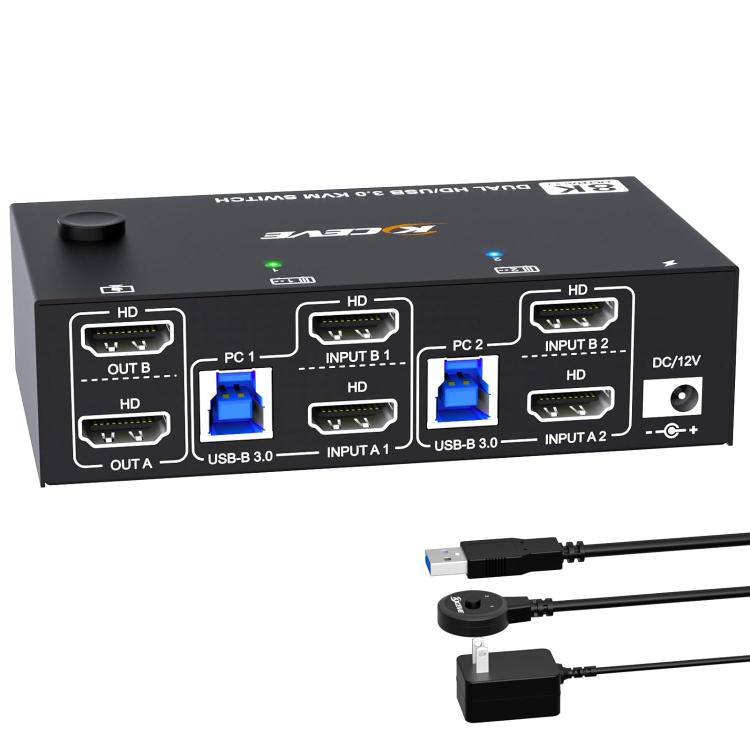

KC-KVM8202 8K 60Hz USB3.0 / HDMI 2-Port Dual Monitor KVM Switch AU Plug

USB0/8KHDDualMonitorKVMSwitch:Allows2groupsofHDvideosourcesandUSBinterfacedevicestoswitchfreely;canprovidemaximumequalizergaincontrolupto+11dB(HD16GHzand+7dB(HD03GHztocompensatefortheinsertionlos
Features

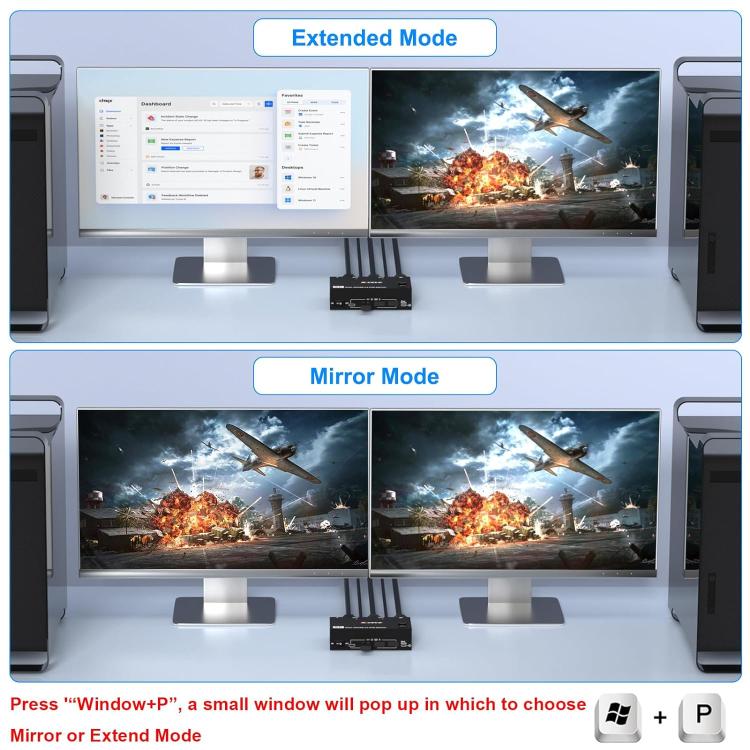

Allows2groupsofHDvideosourcesandUSBdevicestoswitchfreelybetween2computers
Supportsvideoresolutionsupto3840x2160120Hzand7680x432060Hz

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Description
USB3.0/8K HD Dual Monitor KVM Switch: Allows 2 groups of HD video sources and USB interface devices to switch freely; can provide maximum equalizer gain control up to +11dB (HD2.1 6GHz. and +7dB (HD2.0 3GHz. to compensate for the insertion loss of channel connection. The device has excellent image processing and transmission capabilities, making the output signal smoother and more stable. It is a reliable, high-performance and efficient 8K HD USB3.0 switcher suitable for offices, game rooms, monitoring rooms, etc.

Features

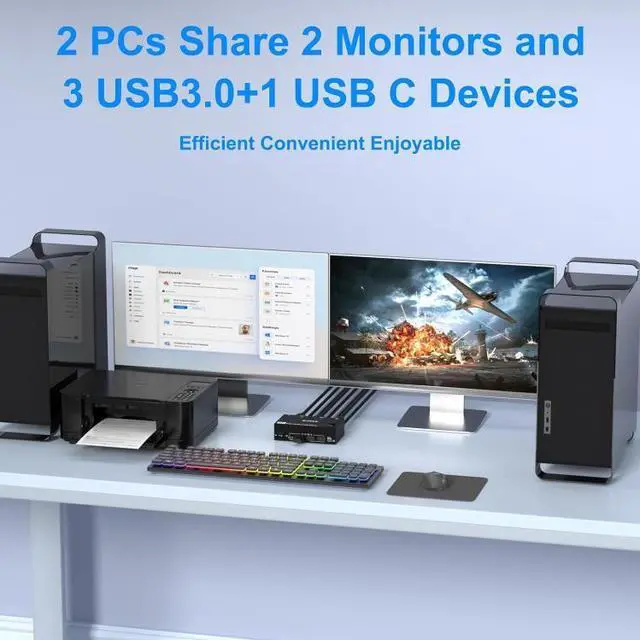

1. Allows 2 groups of HD video sources and USB devices to switch freely between 2 computers.

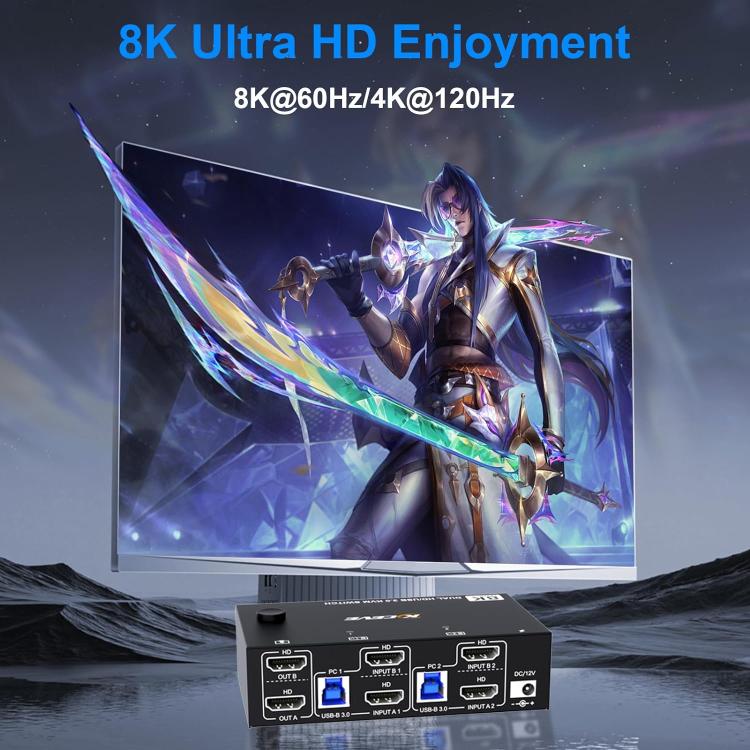

2. Supports video resolutions up to 3840x2160 120Hz and 7680x4320 60Hz
3. Complies with HD 2.1 standards
4. Adapts to various complex application environments

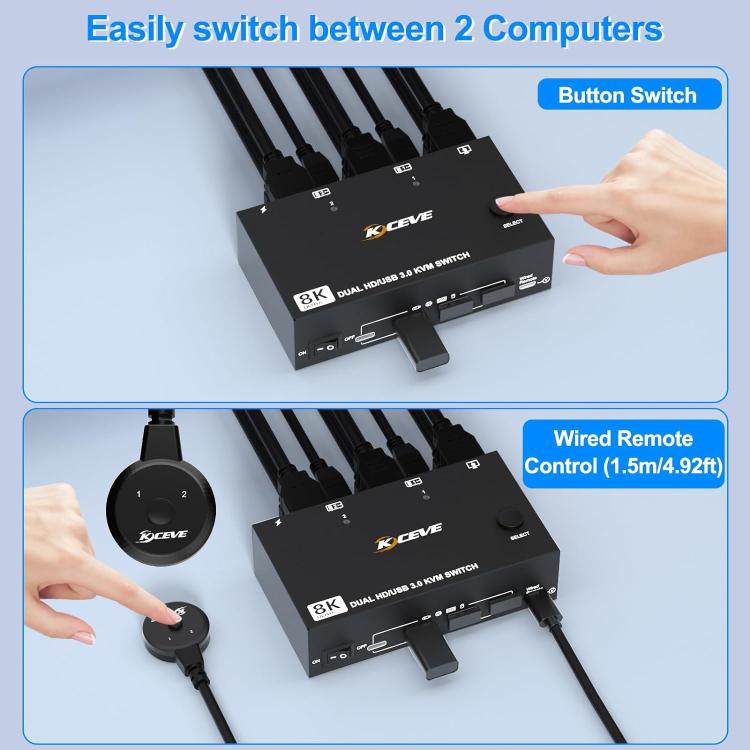

5. Can be switched by physical buttons or wired remote control, convenient and fast

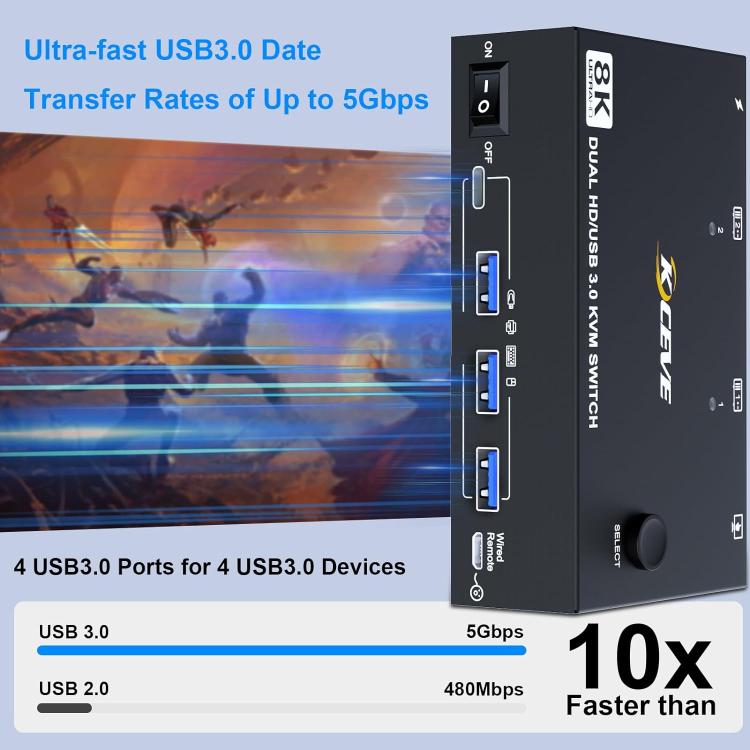

6. Supports USB3.0 devices such as HUB, SSD, printer, etc., backward compatible with USB2.0/1.1
7. Strong compatibility, can automatically match signal source and display device
8. Built-in automatic adjustment system, smooth, clear and stable image
9. Easy installation, plug and play

Parameters
1. Video standard: HD 2.1
2. Resolution range:
7680x4320 60Hz, 3840x2160 120Hz / 60Hz;
3440x1440 144Hz / 120Hz;
1920x1080 120Hz / 60Hz
(depends on the system and connected hardware.

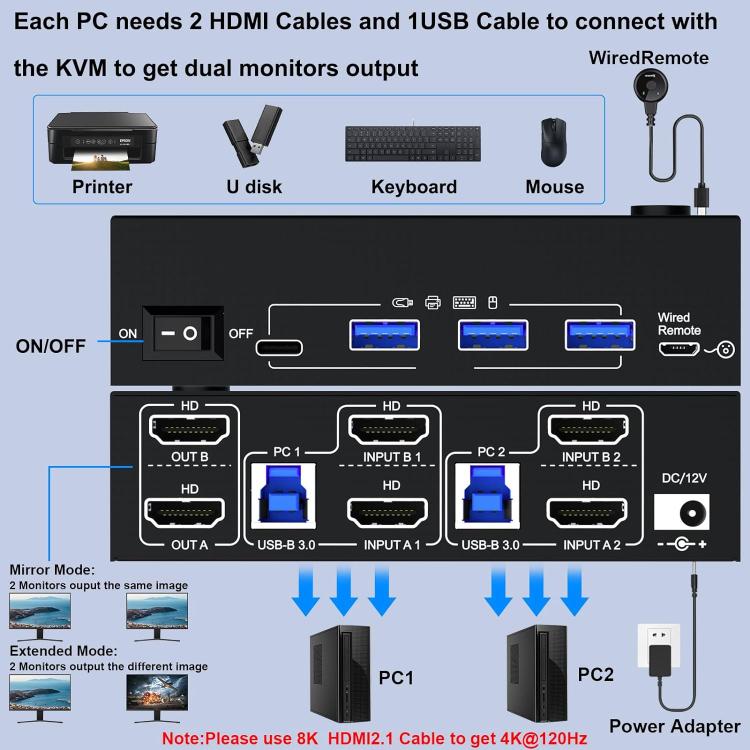

3. Connector: HD-A interface
4. HD line range: less than 1.5M
5. Interface protocol: USB3.0
6. Computer input: USB-B
7. Output: USB-A
8. Power supply: DC12V adapter charger
9. Power consumption: MAX 6W
10. Operating temperature: -5 degrees Celsius to +70 degrees Celsius
11. Operating humidity: 5%-90%
12. Dimensions: 130x67x35mm

Packing List
USB3.0/8K KVM switch x 1
USB3.0 cable x 2
Wired remote control x 1
User manual x 1
