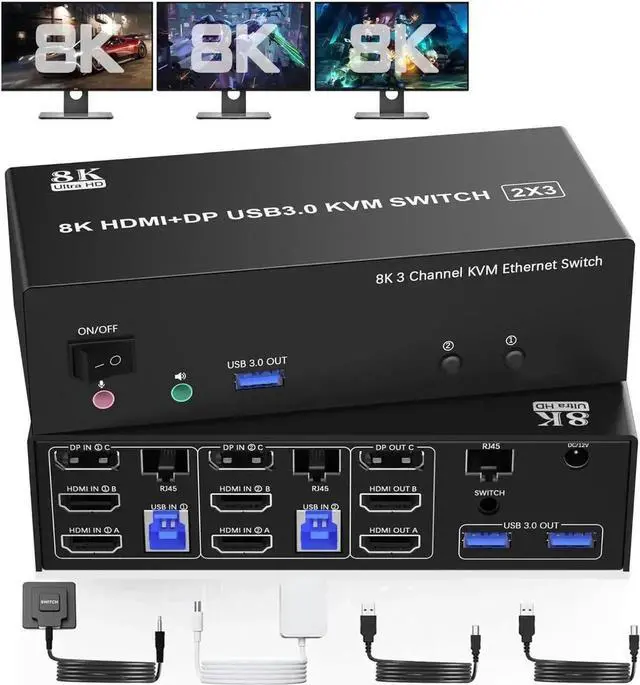

KVM Switch 3 Monitors 2 Computers 8K@60Hz 4K@144Hz, 2 HDMI + DisplayPort USB3.0 KVM Switch Triple Monitor for 2 Computer Share 1000Mbps Ethernet, 3 USB 3.0 Ports, Audio&Microphone, Wired Remote

8K@60Hz 4K@144Hz KVM Switch 3 Monitors 2 Computers Sharing 3 Monitor, 3 USB 3.0 Ports, Audio & Microphone, 1000Mbps LAN Ethernet

Features:

1. 8K Triple Monitor KVM Switch allows 2 computers/laptops to share one set of keyboard, mouse, and 3 monitors (2 HDMI+1 DisplayPort)

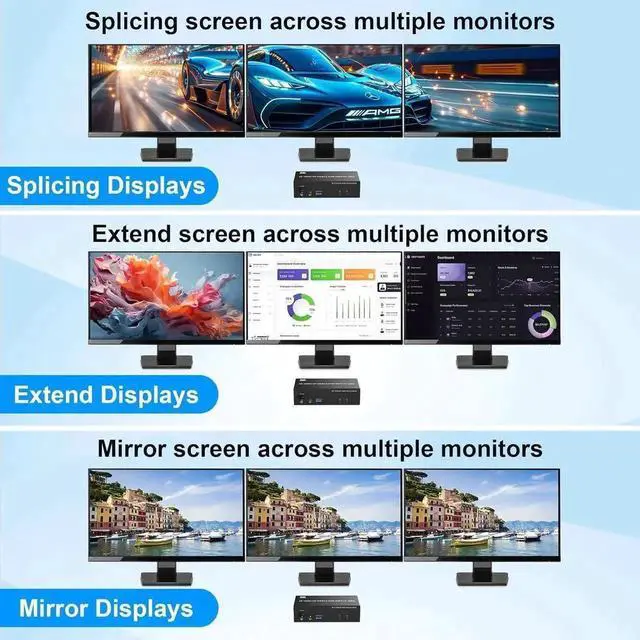

2. Support HDMI 2.1 & DP 1.4 standards and downward compatibility. 3 monitors output support up to 8K@60Hz 4K@144Hz for extended, mirrored or spliced display(Depends on your computer's graphics card. )

3. 2

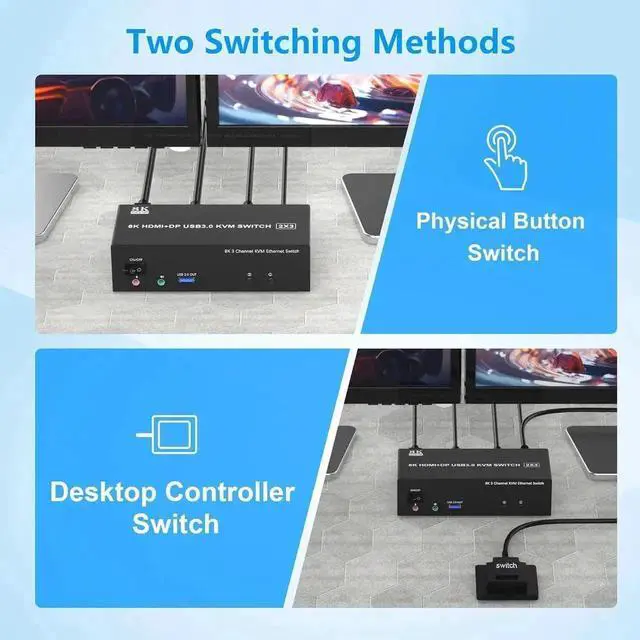

Switching modes: Button switch and wired remote.

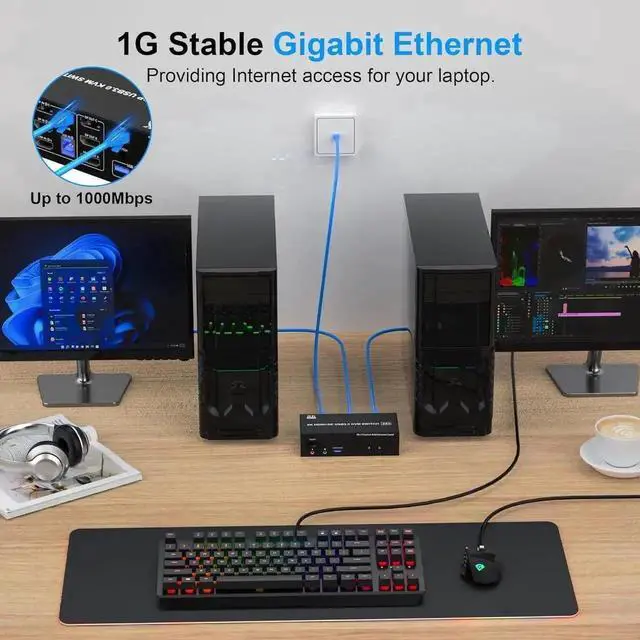

4. This triple monitor KVM Switch share 1000Mbps gigabit ethernet between 2 computers, providing Internet access for your laptop.

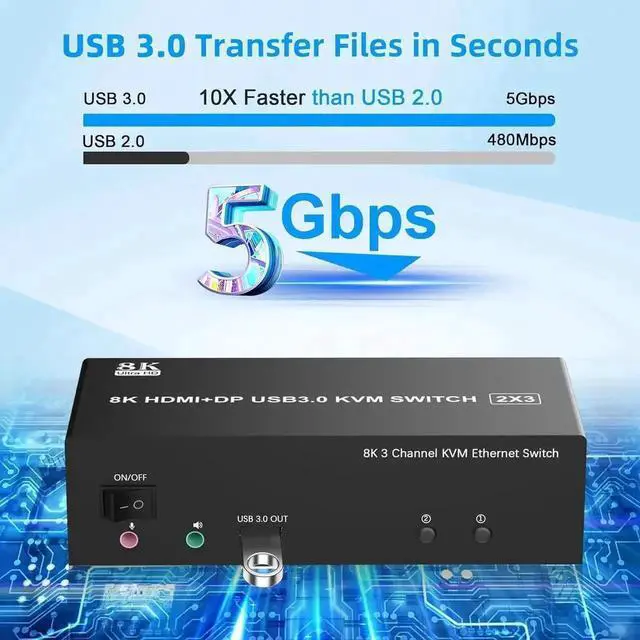

5. 3 monitor KVM switch equipped with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output

6. Equipped with a 12V power supply, ensuring stable operation even when high-power devices are connected.

7. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS.

8. The ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the triple monitor KVM switch, so the desktop doesn't get cluttered, you can enjoy the clean workspace.

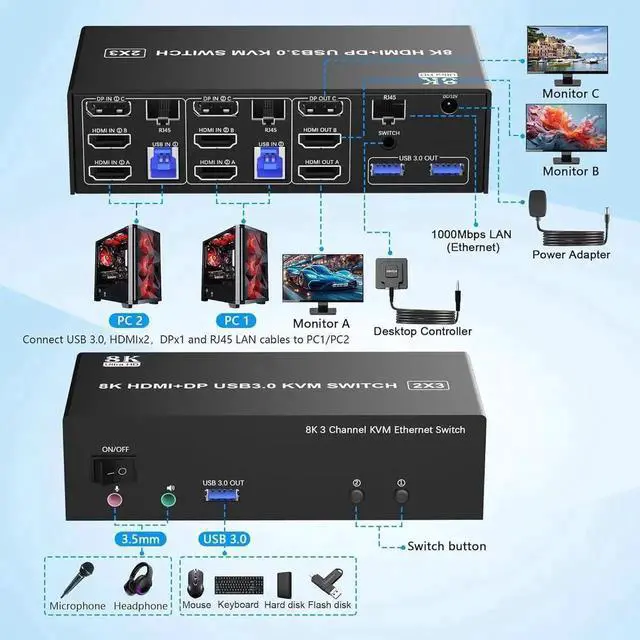

installation steps:

1. Insert the DC/12V adapter into the KVM;

2. Plug the Ethernet RJ45 cable into the KVM switch;

3. Plug the 2*HDMI cable and 1*DisplayPort cable into the KVM switch and monitor; (HDMI OUT A, HDMI OUT B, DP OUT C)

4. Plug the DisplayPort cable, HDMI cable, RJ45 cable, and USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included) (Input)

HDMI IN 1A +HDMI IN 1B + DP IN 1C + RJ45 + USB IN 1=PC1

HDMI IN 2A + HDMI IN 2B + DP IN 2C + RJ45 + USB IN 2=PC2

Please check whether HDMI IN 1A, HDMI IN 1B, DP IN 1C, RJ45, and USB IN 1 corresponding, and whether HDMI IN 2A, HDMI IN 2B, DP IN 2C, RJ45 and USB IN 2 are corresponding. Mixed insertion is not supported.

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

Note:

1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 HDMI +1 DP+USB cable) connect to the KVM.

2. If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.

3.

Note: HDMI, DP and ethernet cables are not included
