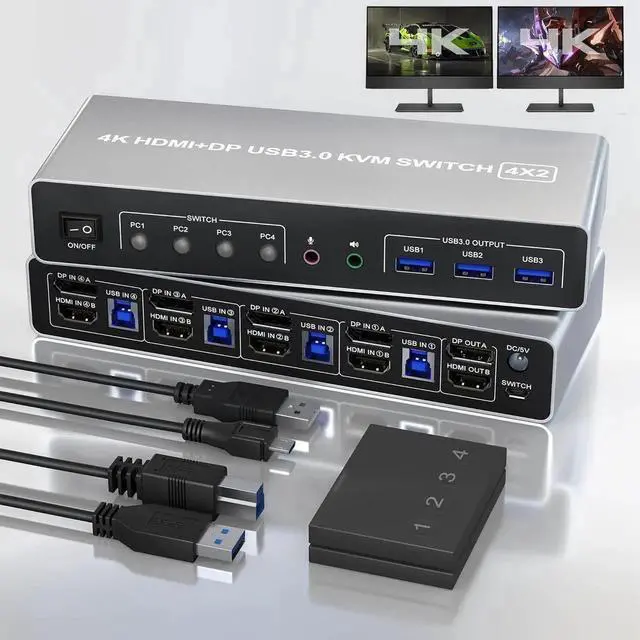

KVM Switch 4 Computers 2 Monitors Displayport and HDMI 4K@60Hz, USB 3.0 4 Port Dual Monitors KVM Switch with Audio Microphone Output and 3 USB 3.0 Ports, 4 in 2 Out Monitor Switch for 4 PCs

1. Support maximum resolution up to 4K 60Hz YUV 4:4:4, HDCP 1.4, HDR 2.2; Dual monitors output support up to 4K@60Hz for extended and mirrored display(Depends on your computer's graphics card);
2. With 3 USB 3.0 Ports, USB 3.0 transmission rate up to 5Gbps;
3. Supports Separate Audio and Microphone Output;
4. 2 switching methods, easy to switch. Support button switching and desktop wired remote controller;
5. Compatible with multiple operating systems, such as Windows/Mac/Linux/Unix, etc;
6. Easy installation, plug and play, no driver required.

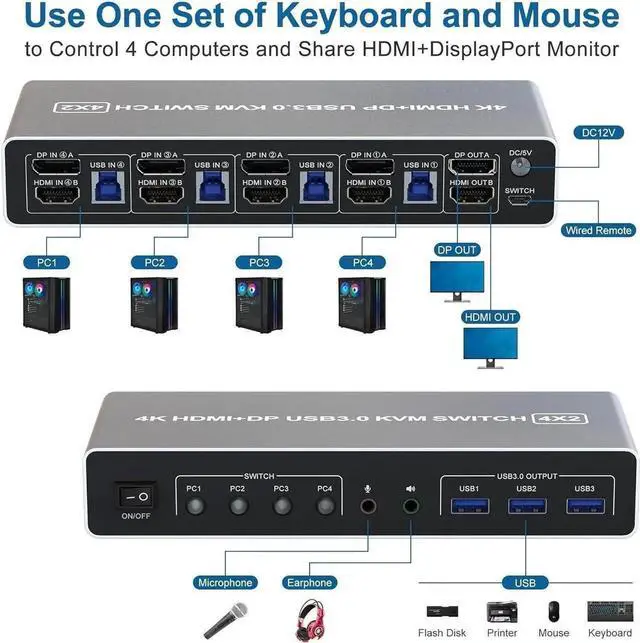

Connection Steps & Notes

1. 1. Insert the adapter into the KVM ;
2. 2. Plug the HDMI and DP cable into the KVM and monitor;(Output)
3. 3. 1). Connect PC1 Firstly(Input)
4. Use 1 DP cable to connect the "DPIN 1 A" input interface and PC1 DP A output interface,
5. Use 1 HDMI cable to connect the "HDMI IN1 B" input interface and PC1 HDMI B output interface.
6. Use 1 "USB-a to USB-b" USB3.0 cable to connect the "USB IN 1" input interface and PC1 USB 3.0 interface.
7. 2)Then, Connect PC2,PC3,and PC4 according to the connection steps of PC1.
8. 4. Insert the mouse and keyboard into the KVM switch
9. 5. If needed, you can connect a microphone and audio port

Note:

1. 1. Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 1 HDMI and 1 DP cables connect to the KVM.
2. 2.Please check the DP IN A1 & A2 & A3 & A4, HDMI IN B1 & B2 & B3 & B4 and USB IN1 & IN2 & IN3 & IN4 is corresponding, DP OUT A, HDMI OUT B is corresponding, NOT support mixed insertion.
3. 3.Note: DP/HDMI cables are not included

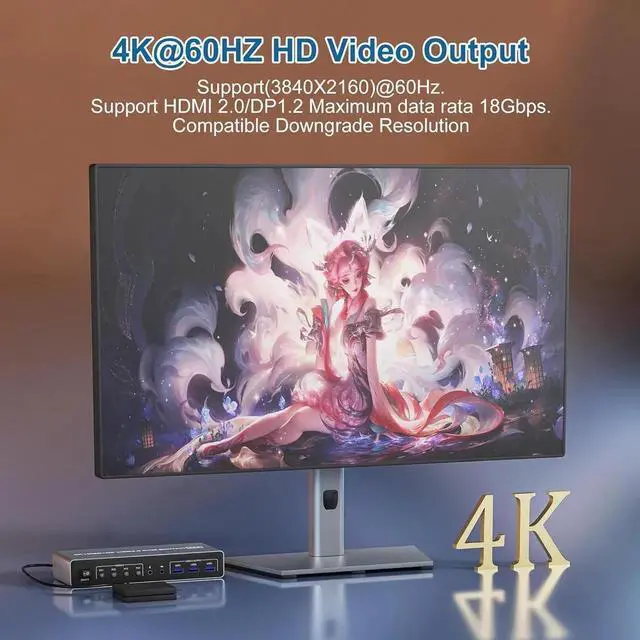

USB 3.0 Dual Monitor KVM Support 4K@60HZ

1. Supports high resolution up to 3840*2160@60Hz and downwards.
2. Note: Only when both your computer Graphics card and monitor support 4K@60Hz you can get the 4K@60Hz effect, so if you want the maximum resolution you have to check your devices first.

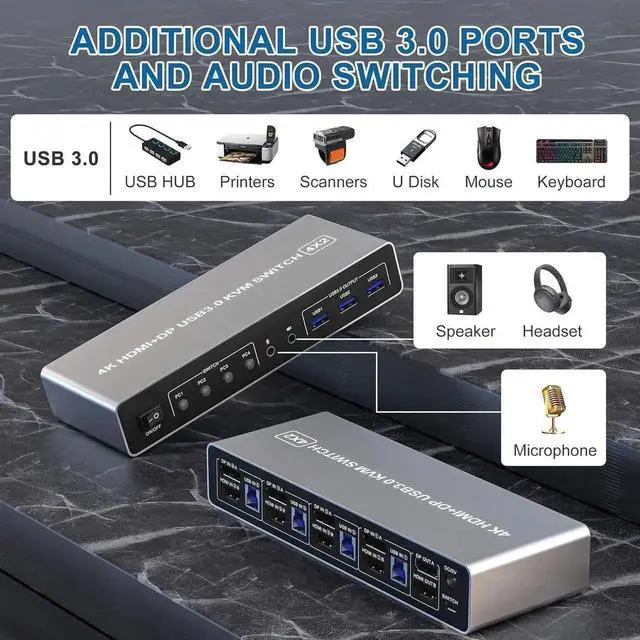

3 Port USB 3.0 with 5Gbps

1. Supports 5Gbps data transfer speed , can transfer files in Seconds, Much faster than USB 2.0.
2. 3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.

LED Indicator

1. When switching to which PC, the LED will tell you whether PC1 or PC2/PC3/PC4 is active.

Supports separate audio and microphone output

1. KVM Switch comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

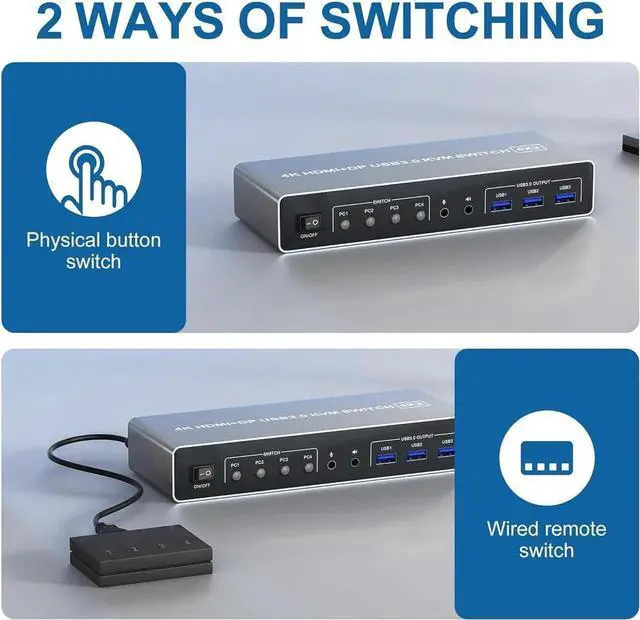

Supports key switching

1. You can easily and quickly switch between computers with the push of a button on the control panel.

Support wired remote control

1. A push-button controlled switch extension cable is included for easy switching without having to get up when using it.

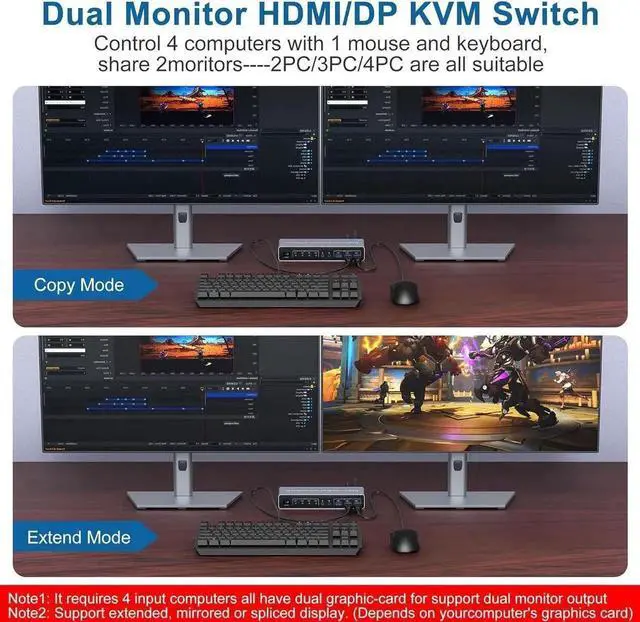

2 Display Modes

1. Extended Display
2. Mirrored Display

1. 1)Extended mode can output 2 different screens and mirror mode can output 2 identical screens.Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2. 2) The requirement for this KVM to achieve a 2-screen display is that each PC you connect to has the capability to support a 2 screen display. This has nothing to do with KVM.

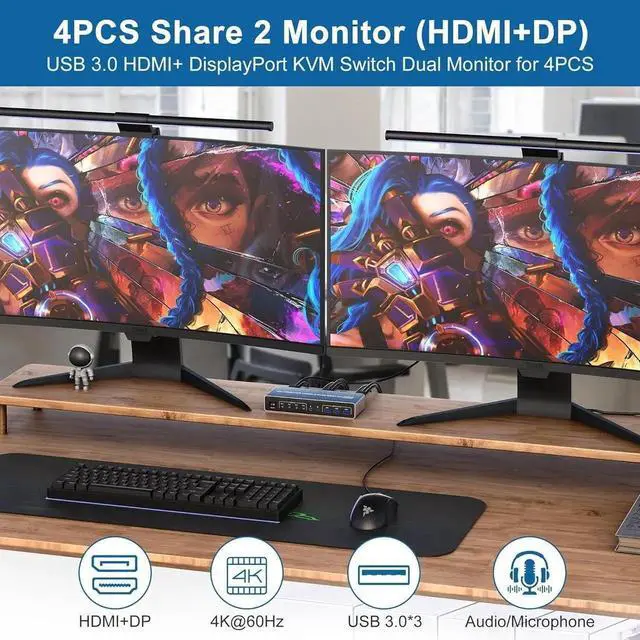

4 Port Displayport and

HDMI KVM: This KVM allows you to use a set of keyboard and mouse to control 4 computers, share 3 USB devices and 2 monitors. As long as your computer confirms that it supports dual-screen display, you can use 2 screens

Ultra HD 4K@60Hz: Supporting high resolution max up to 4K@60Hz, and also supports 3D and 1080P@60Hz or other lower resolution (Downward Compatible). Support up to 4K@60Hz for extended and mirrored display.

with 3 USB 3.0 Ports and Audio Microphone Ports: This kvm comes with 3 USB 3.0 ports for sharing USB devices, such as keybaord, mouse, printers, U disks and more other USB devices, Also come with a 3.5 mm Audio Jack port with a DAC chip inside and a 3.5 mm microphone interface.

2 Switching modes & Wide Compatibility: 1. Toggle selection on front panel 2. Wired remote switch. Compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS; also supports DP/HDMI devices without USB signal input like DVR, NVR etc.
