WRIARICH KVM Switch 3 Monitors 4 Computers 8K@60Hz 4K@144Hz, 2 HDMI +1 DisplayPort KVM Switch Triple Monitor for 4 Computer with Audio and 3 USB 3.0 Ports, KVM Triple Monitor Keyboard Mouse Switcher

4 Port USB 3.0 Triple Monitor 2 HDMI + DisplayPort KVM Switch for 4 Computers Sharing 3 Monitor and 3 USB 3.0 Ports, Audio & Microphone

Advantages:

1, Share one set of keyboard, mouse and 3 monitors (2 HDMI +1 DisplayPort ) between 4 computers or laptops;

2, Supoort DP 1.4, HDMI 2.1 and downward compatible. 3 monitors output support up to 8K@60Hz for extended, mirrored or spliced display(Depends on your computer's graphics card. );

3, No complicated installation is required, and non-professionals can easily operate it, Ideal for multi-tasking professionals and gamers who need to access multiple devices quickly and efficiently;

4, Cross support major operation systems including Windows, Linux, Mac and more;

5,

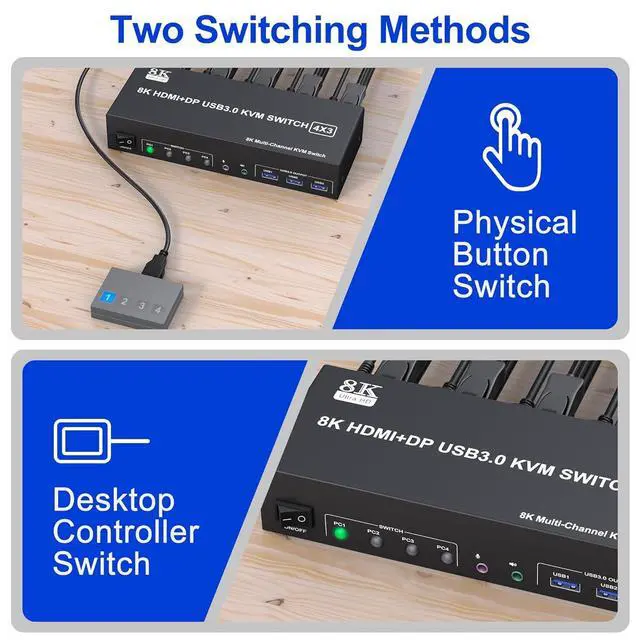

Switching modes: Buttons on the front panel and wired remote;

6, The ports that need to plug in DP/HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

7, A USB hub can expand the USB 3.0 ports if multiple connections are required, Please use a hub that can provide power. Also an audio microphone output.

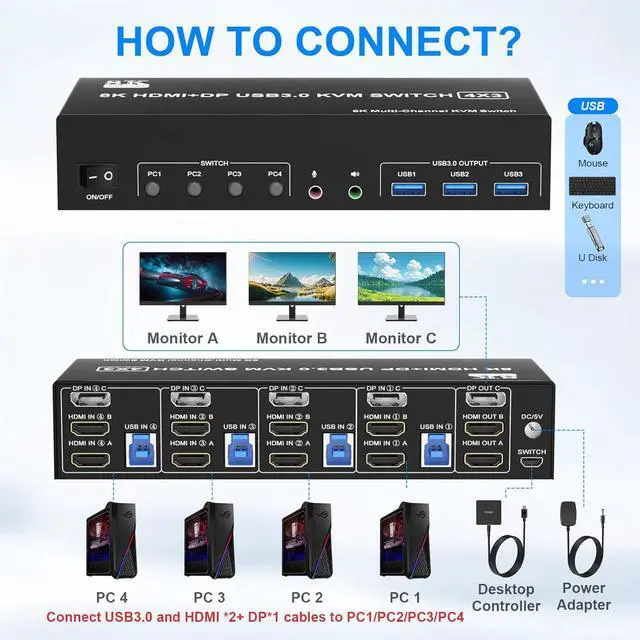

installation steps:

1. Insert the power adapter into the KVM;

2. Plug the 2*HDMI cable and Displayport cable into the KVM switch and monitor; (Output)

3. 1). Connect PC1 Firstly (Input)

Use 1 HDMI cable to connect the "HDMI IN 1 A" input interface and PC1 HDMI A output interface,

Use 1 HDMI cable to connect the "HDMI IN 1 B" input interface and PC1 HDMI B output interface.

Use 1 DP cable to connect the "DP IN1 C" input interface and PC1 DP C output interface.

Use 1 "USB-a to USB-b" USB 3.0 cable to connect the "USB IN 1" input interface and PC1 USB 3.0 interface.

2)Then, Connect PC2, PC3, and PC4 according too the connection steps of PC1.

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

Note:

1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(1 DP cables+2 HDMI cable +1 USB cable) connect to the KVM.

2. If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.

3.

Note: DP/HDMI cables are not included

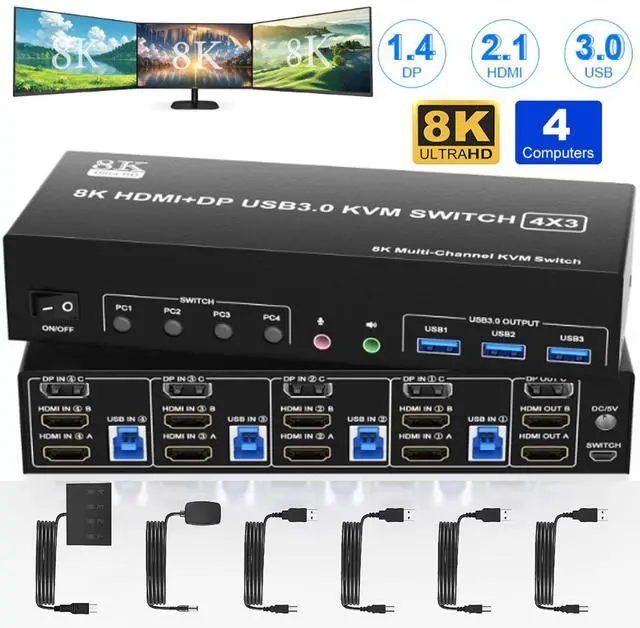

What You Get: 1x 8K@60Hz 4Ports USB 3.0 2 HDMI + 1 DisplayPort Triple Monitor KVM Switch, 4x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual
