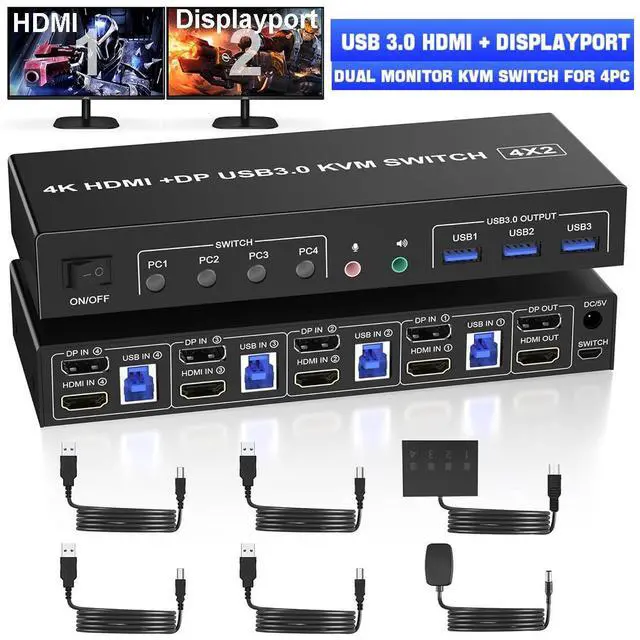

WRIARICH USB 3.0 Displayport+HDMI KVM Switch 2 Monitors 4 Computers, 4K@60Hz KVM Switch with Audio Microphone and 3 USB 3.0 Ports, 4 Port HDMI+DP Dual Monitor KVM Switch for 4 PCs, with Wired Remote

Product Features:

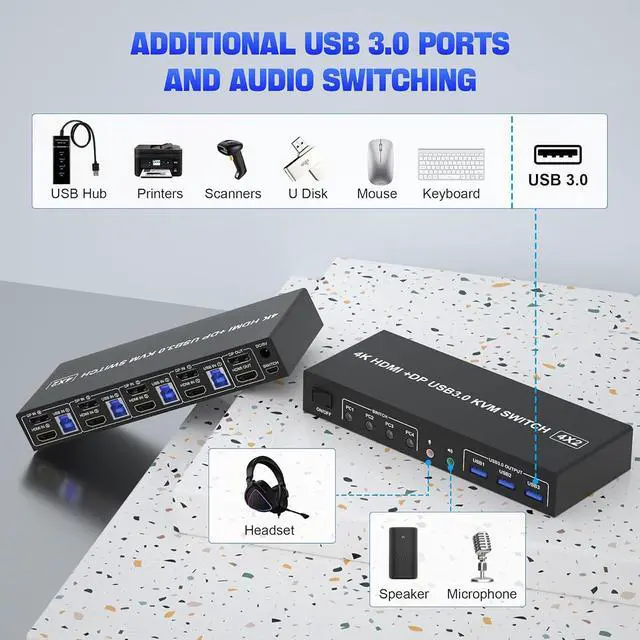

4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 ports;

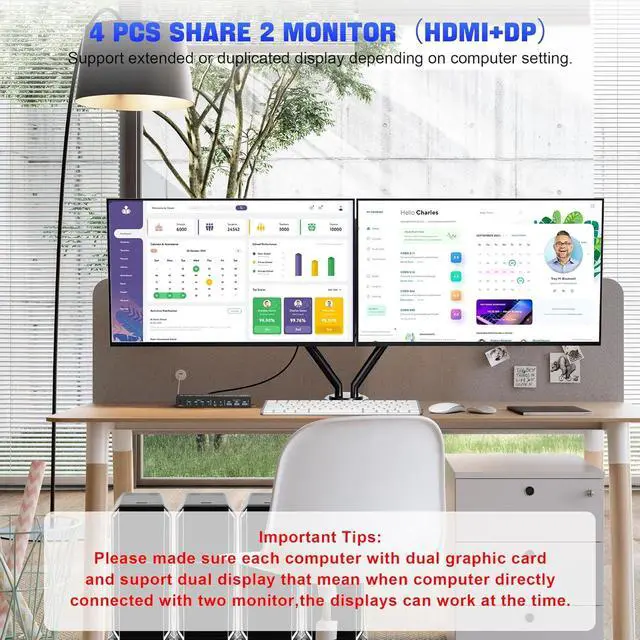

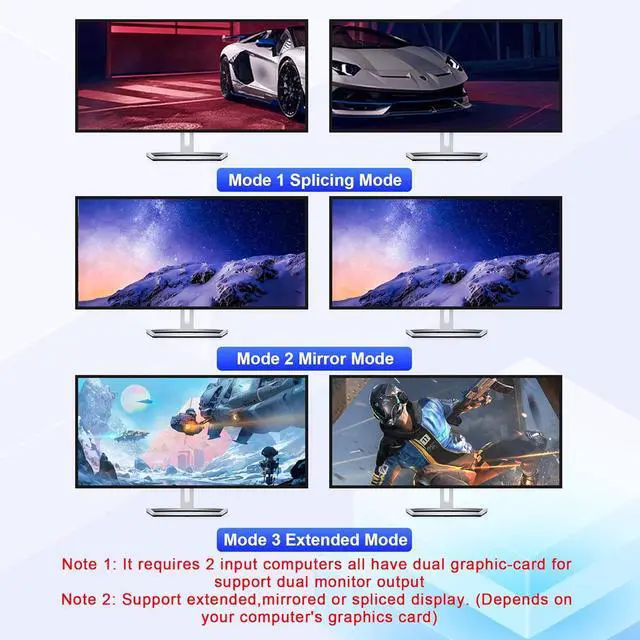

Support maximum resolution up to 4K 60Hz YUV 4:4: 4, HDCP 1.4, HDR 2.2; Dual monitors output support up to 4K@60Hz for extended and mirrored display;

Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;

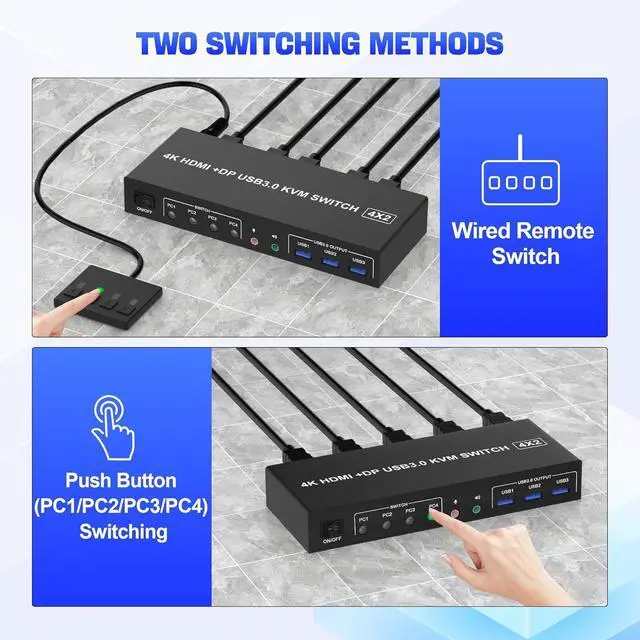

Advanced switching modes: push button and wired remote;

No complicated installation is required, and non-professionals can easily operate it;

The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

Audio Microphone output.

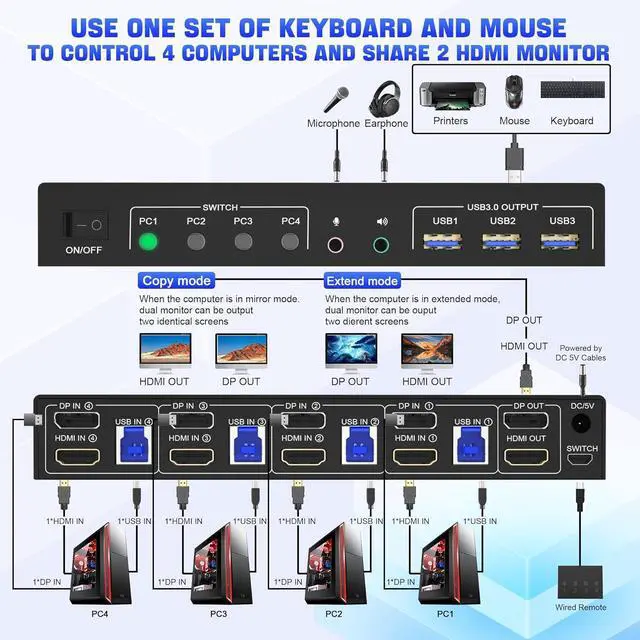

Connection steps:

1. Insert the DC/5V adapter into the KVM;

2. Plug the DP/HDMI cable into the KVM and monitor; (Output)

3. Plug the DP/HDMI cable and USB cable into the KVM and your computer/laptop (DP cables are not included) (Input)

DP IN1 + HDMI IN1 + USB IN1=PC1

DP IN2 +HDMI IN2 + USB IN2=PC2

DP IN3 + HDMI IN3 + USB IN3=PC3

DP IN4+ HDMI IN4+ USB IN4=PC4

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

Important: After connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen. Package includes 1 x USB 3.0 Displayport HDMI dual monitor KVM switch, 1 x Power adapter, 1 x Wired Remote Switch, 4 x USB 3.0 Type-A to B cable, and 1 x User Manual.
