    H265&H264/MJPEG HDMI Video Encoder HD 1080P@60HZ (4K Optional) OLED Video Audio Encoders with Loopout Max 4 Channels Streams Output HTTP/SRT/RTMP/RTMPS/RTSP Streaming YouTube Facebook Live

    Be the first to review this product...

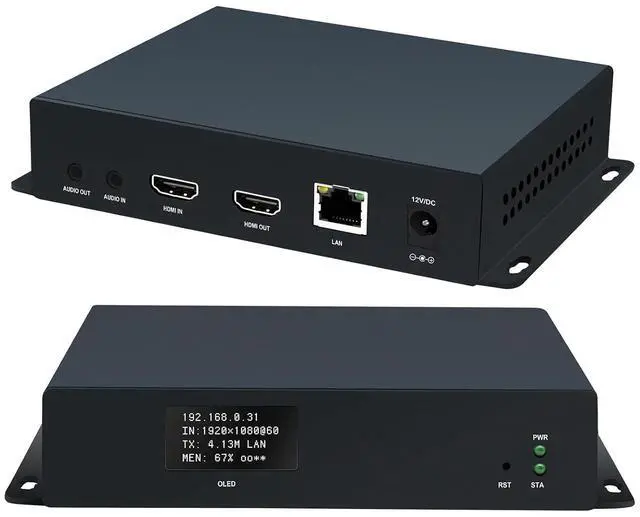

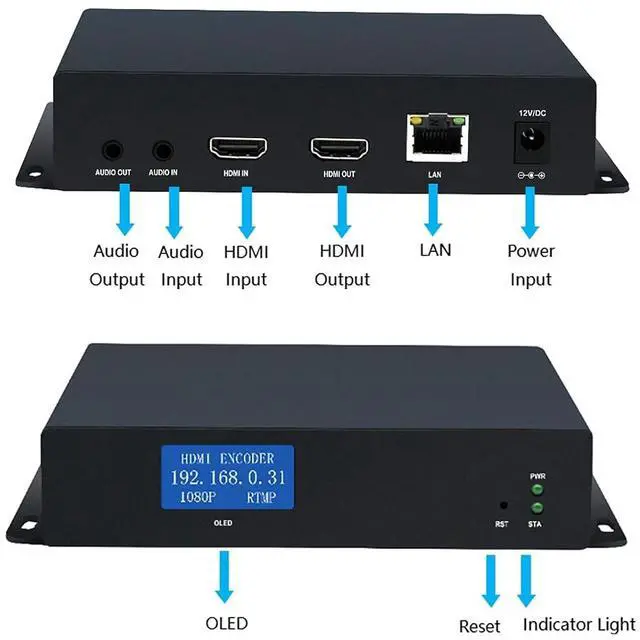

    • Product description Brief Introduction of Video Encoder (EH901) Click to play video Product Features 1. LCD Real-Time Display With a built-in LCD screen, users can monitor the IP status and encoding parameters in real-time. 2. Resolution 1080P@60HZ Maximum input resolution:1080P@60hz, Maximum output resolution:1080P@60hz Resolution can be set separately Support image parameter settings 3. Output Up to 4 Streams You may set the maximum output resolution: Stream 1 & Stream 2: 1080P@60hz Stream 3 & Stream 4: 576P@60hz 4. Multiple Network Protocols Supports protocols including RTSP/RTMP/RTMPS/SRT/HLS/TS-UDP/Onvif. Supports live stream with RTMP/RTMPS, while remote production with SRT. 5. Image Rotation Mirror Flip (New): Add function of rotating & cropping for vertical/horizontal video. Social media friendly. Support sending firmware to upgrade the new function. 6. Support HDMI Loopout Support 1 channel HDMI local output, so that the input HDMI signal can be used for local display. 7. LOGO/ Image/ Text / Mosaic Add any self-defined text, time and image overlay at any position to show copyrights. Add Font size, scrolling subtitles & fixed mosaic watermark 8. AAC/G711 audio format Support Digital /Analog audio loopout; Audio can be coded separately WEB interface, English is optional for configuration interface, manage authority Parameter Of H.265 Video Encoder EH901 Video Input interface 1×HDMI (Support HDMI1.4 and HDCP1.4) Video Support resolution 1080P\1080i\720P, 1600x1200\1400x
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

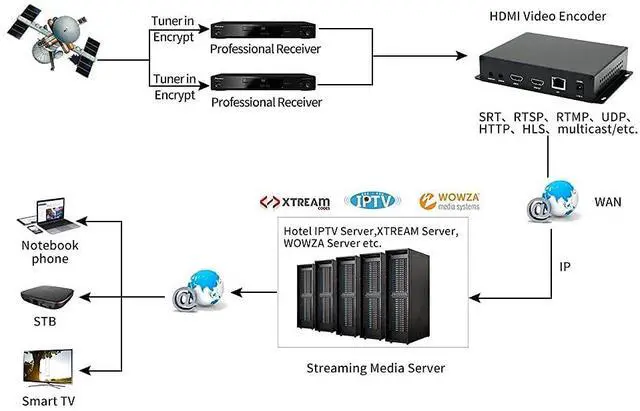

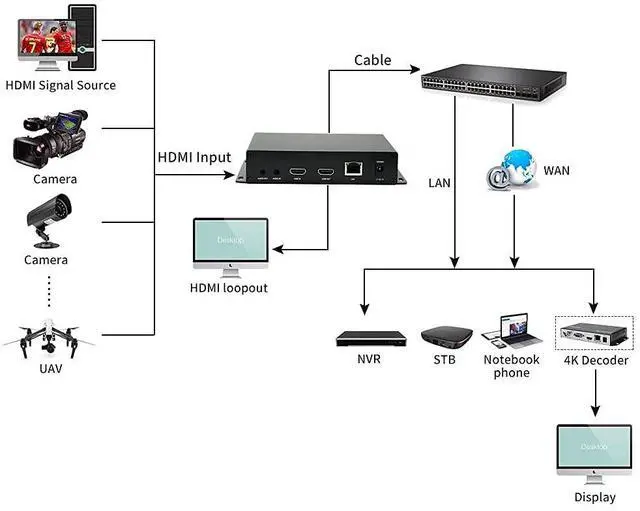

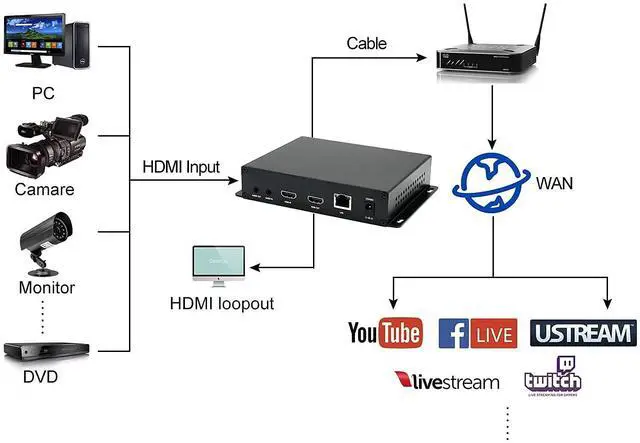

    Multi-Live address Output - Support up to 4 video iptv encoder h265 output simultaneously. You can push these 4 video address to multi-platform at the same time.

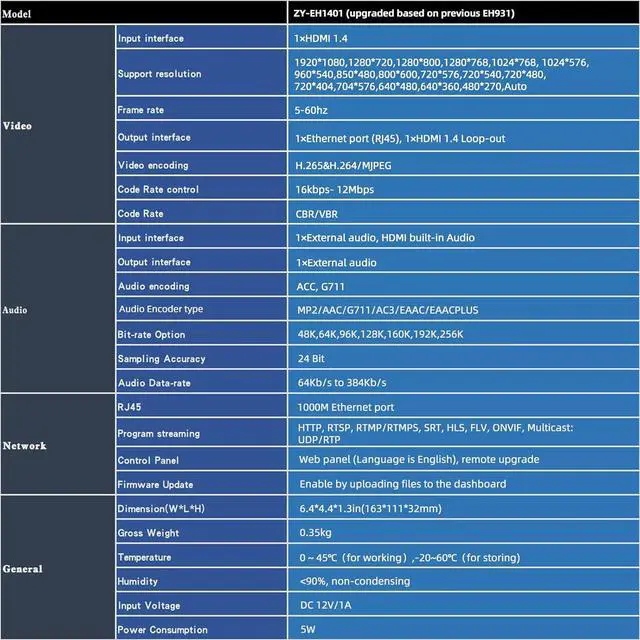

    Remarks: This encoder (model No.: EH931) has been upgraded to EH1401 since the batch Feb. 10th, 2025. It improves in resolution that 3860x2160P is optional now. Please be noted that encoder supports 4 feeds output with 1080P, but only 1 feed output with 4K. And this upgrade is based on chips so that previous EH931 can't been upgraded to EH1401 by firmware.; High-definitionOLED real-time display to ensure uninterrupted video live broadcasting. No need to access video, audio can be coded separately; Multi-protocol Support workable with HTTP, RTSP, UDP /RTP, RTMP, RTMPS, SRT, HLS, FLV, is compatible with Onvif in encoder. The main address and side address use the different network; Factory Default EDID 1080P & 4K Optionalthe factory default EDID for the new upgraded EH1401 is 1080P. If buyers want to input 4K, please select the encoder's EDID to 4K EDID.; Innovative Product with Leading Technologysupport for live broadcast for Youtube, Facebook, Twitch, Meridix, Dacast, Tikilive, Netrmedi etc.
