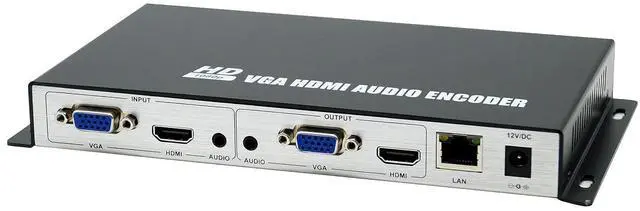

HDMI/VGA Dual-Input Video Encoder,1080P H.265/264 Hardware Encoder, 4-Stream Live Broadcasting Encoder with Audio Embedding/De-embedding,Supports RTMP/RTMPS/SRT/RTSP,is Compatible with ONVIF

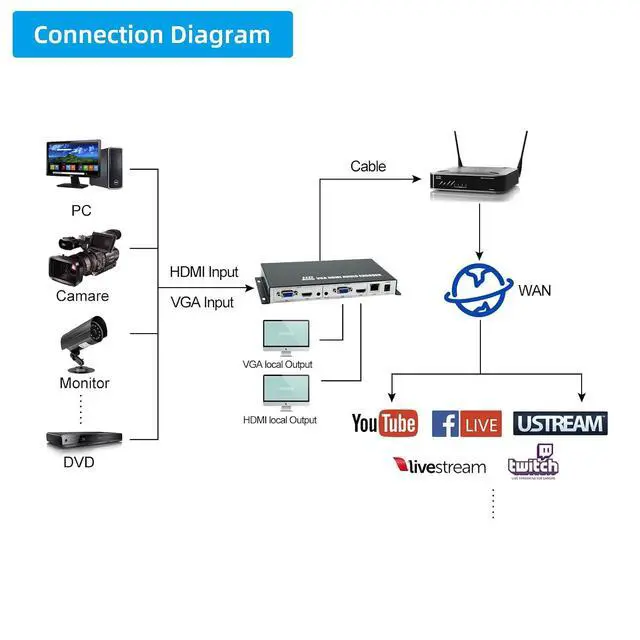

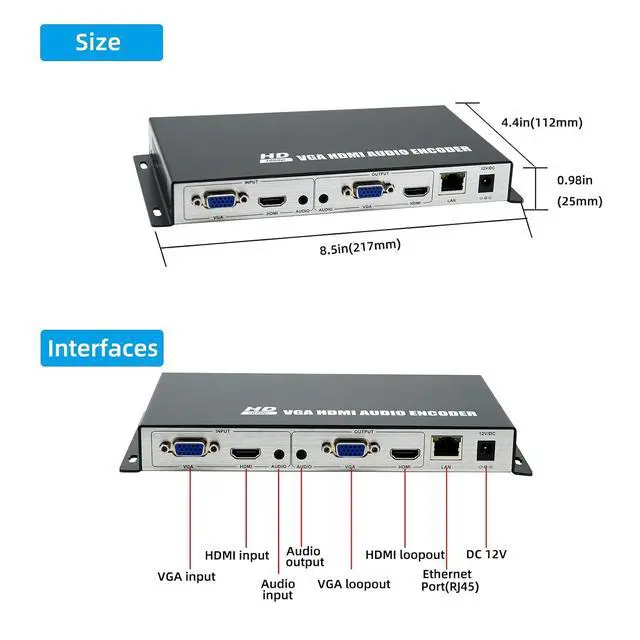

HDMI + VGA Dual-Input DesignThe EHV1401 video encoder features both HDMI & VGA inputs with adaptive signal identification Automatically detects the active source. It accepts either HDMI or VGA input at a time (not simultaneously), and provides both HDMI and VGA loop-out simultaneously for local monitoring on separate displays. The loop-out outputs the same active signal through both interfaces so you can monitor your selected source on either an HDMI or VGA monitor without extra adapters. Ideal for mixed-equipment environments like conference rooms, classrooms, and broadcast studios where both legacy VGA and modern HDMI sources are present.

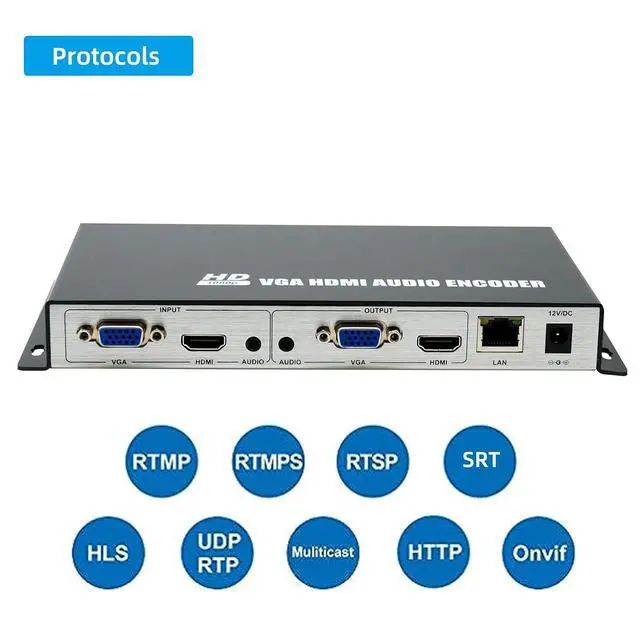

; 4-Channel Streaming Output with Multiple ProtocolsSupports 4 independent streaming outputs simultaneously, each with its own resolution, bitrate, and protocol settings. Stream 1 & 2 support up to 1080P@60Hz; Stream 3 & 4 support up to 576P@60Hz you can allocate bandwidth flexibly for different viewing platforms. Compatible with major streaming protocols including RTMP, RTMPS, SRT, RTSP, HTTP, HLS, UDP, and is compatible with ONVIF. Push streams to online platforms via RTMP/RTMPS, SRT, or RTSP protocols fit for live broadcasting, IPTV, and multi-platform distribution.

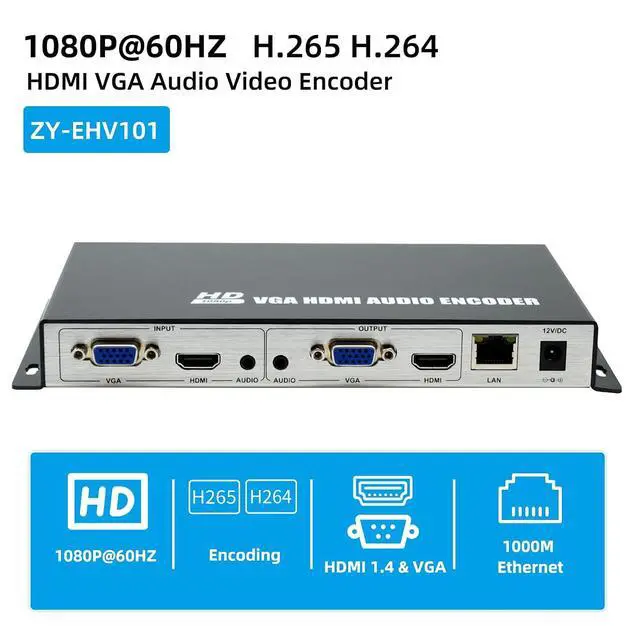

; 1080P High-Quality Encoding & RS232 Control Supports 1080P@60Hz input and output with H. 265/H. 264 formats. Features a built-in RS232 serial port for PTZ camera control, central control system integration, and serial data passthrough. Perfect for professional AV installations and automated workflows.; Audio Embedding & De-embedding Equipped with 3.5 mm audio input and output interfaces. The audio embedding function allows you to add external audio (e. g., from a mixer or wireless mic) into the HDMI stream. The audio de-embedding function extracts embedded audio from HDMI signals and outputs it via IP stream ideal for professional audio processing, monitoring, or integration with external audio systems.

; Free Support and ServiceORIVISION encoder is supported by 20 years manufacture experience of video transmission device by our leading technology. Encoder products are backed with a 3-year limited warranty.
Tips: If the web interface becomes unresponsive during web configuration, please check the IP address settings. Changing the device IP may require updating your computers network settings accordingly. For assistance, please write to us were happy to help within 24 hours.
